36 EVS Series Manual — P/N LS10062-001SK-E:D 3/15/2022

EVS Device Installation Installing the EVS-100W

3. Secure the supplied “L-shaped” bracket to the top mounting bracket on the EVS-100WBD with the two mounting screws. See

Figure 4.36.

4. Align the mounting holes on the bracket with the enclosure.

5. Secure the board to the enclosure.

6. Restore AC power and reconnect the backup batteries.

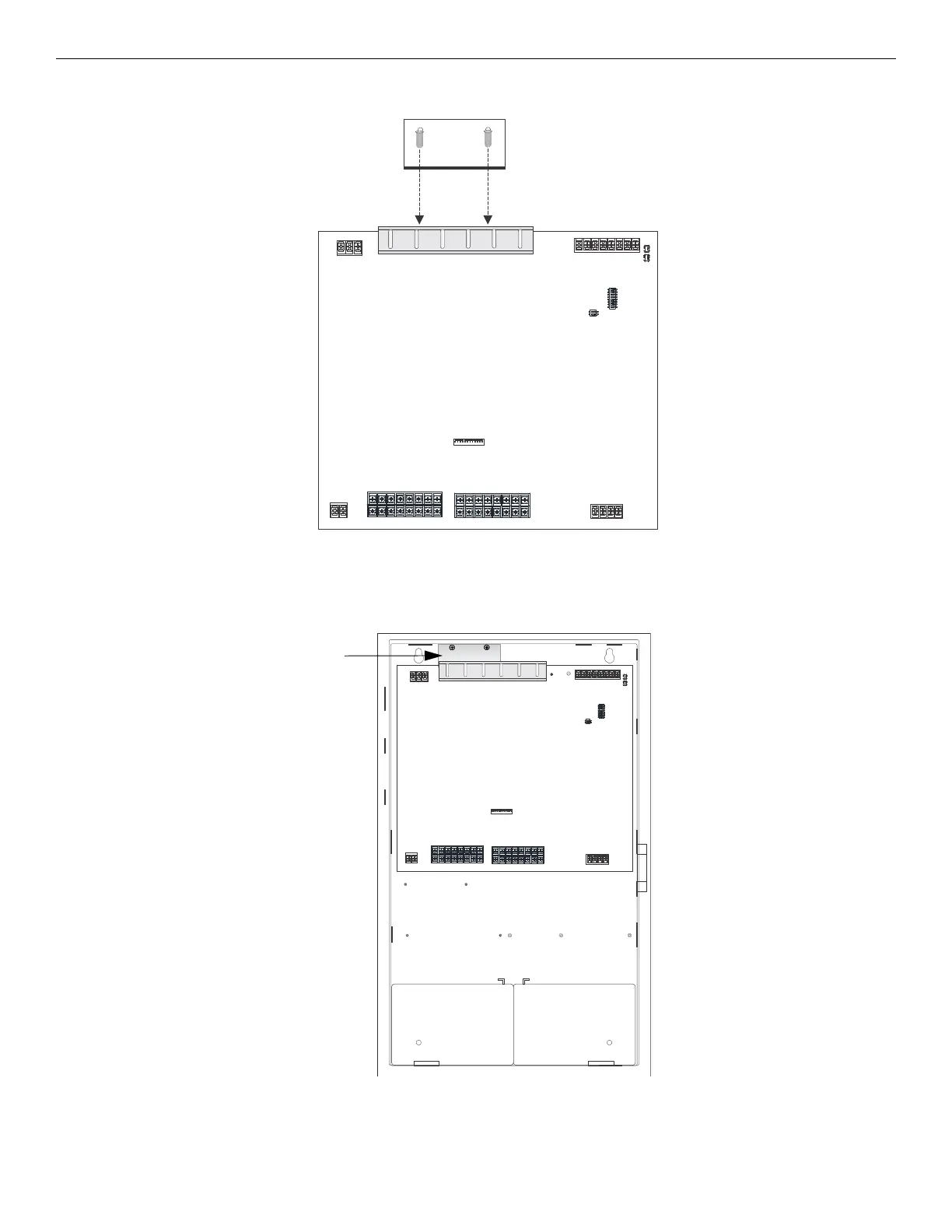

Figure 4.36 EVS-100WBD Mounting Bracket

Figure 4.37 EVS-100WBD in Enclosure

mounting bracket
