Honeywell Voyager 1202G User Manual

11 - 9
Standard Cable Pinouts
RS485 Output

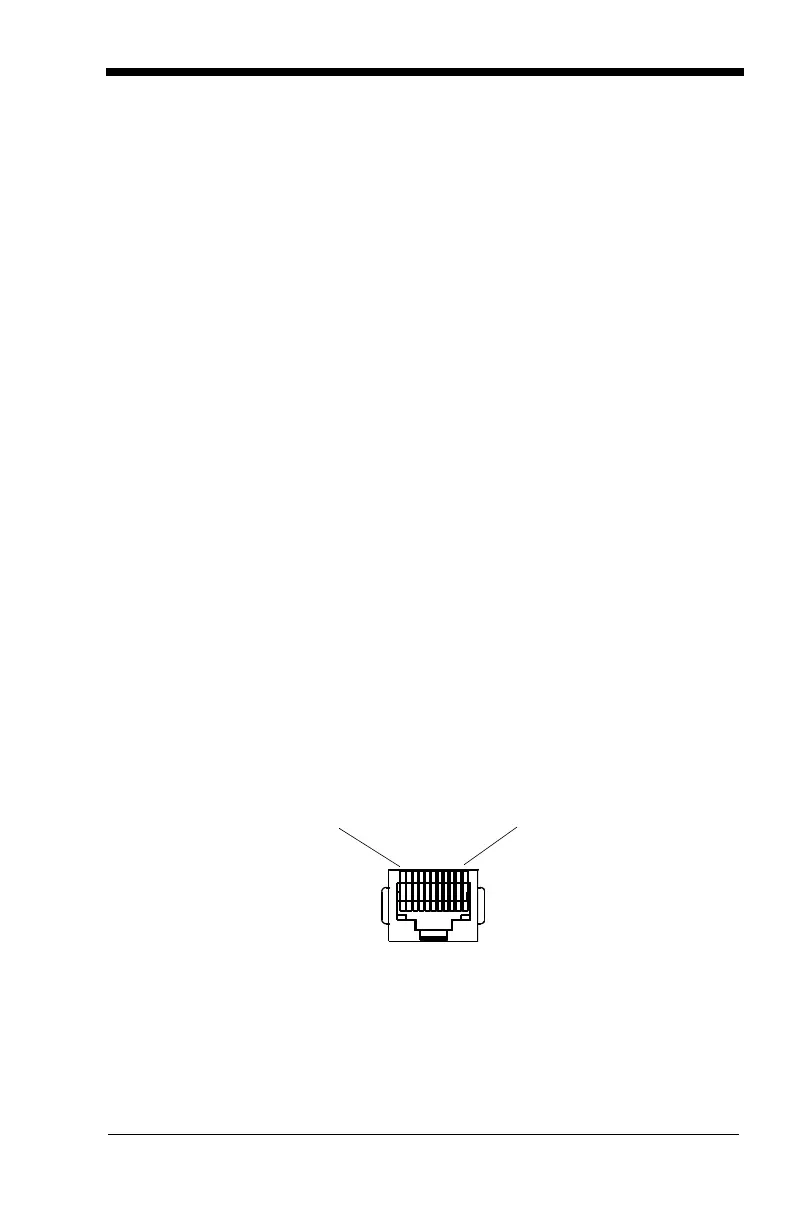

10 Pin RJ41 Modular Plug connects to the base
1 Cable shield 2Cable select 3 Supply ground 4 Transmit data 5 Receive data - serial data to scanner 6 7+5V power 8Transmit Enable 9 10
Note: RS485 signal conversion is performed in the cable.
Pin assignments are not compatible with Honeywell legacy products.
Use of a cable with improper pin assignments may lead to damage to the unit.
Use of any cables not provided by the manufacturer may result in damage not
covered by your warranty.

Honeywell Voyager 1202G Specifications

General

Type	Handheld bar code reader
Sensor type	Laser
Scanner type	1D
Pitch reading angle	60 - 60 °
Linear (1D) barcodes supported	-
Wireless range	10 m
Bluetooth version	2.1+EDR
Operating frequency	2.4 - 2.5 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Battery life	12 h
Charging time	4 h
Input voltage	5 V
Battery capacity	1800 mAh
Power source type	Battery
Number of reads per charge	45000
Product color	Black
International Protection (IP) code	IP42
Storage temperature (T-T)	-5 - 35 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	180 mm
Width	66 mm
Height	92 mm
Weight	180 g
Base weight	185 g
Base dimensions	200 x 67 x 97 mm
