Honeywell Voyager 1202G User Manual

3 - 21

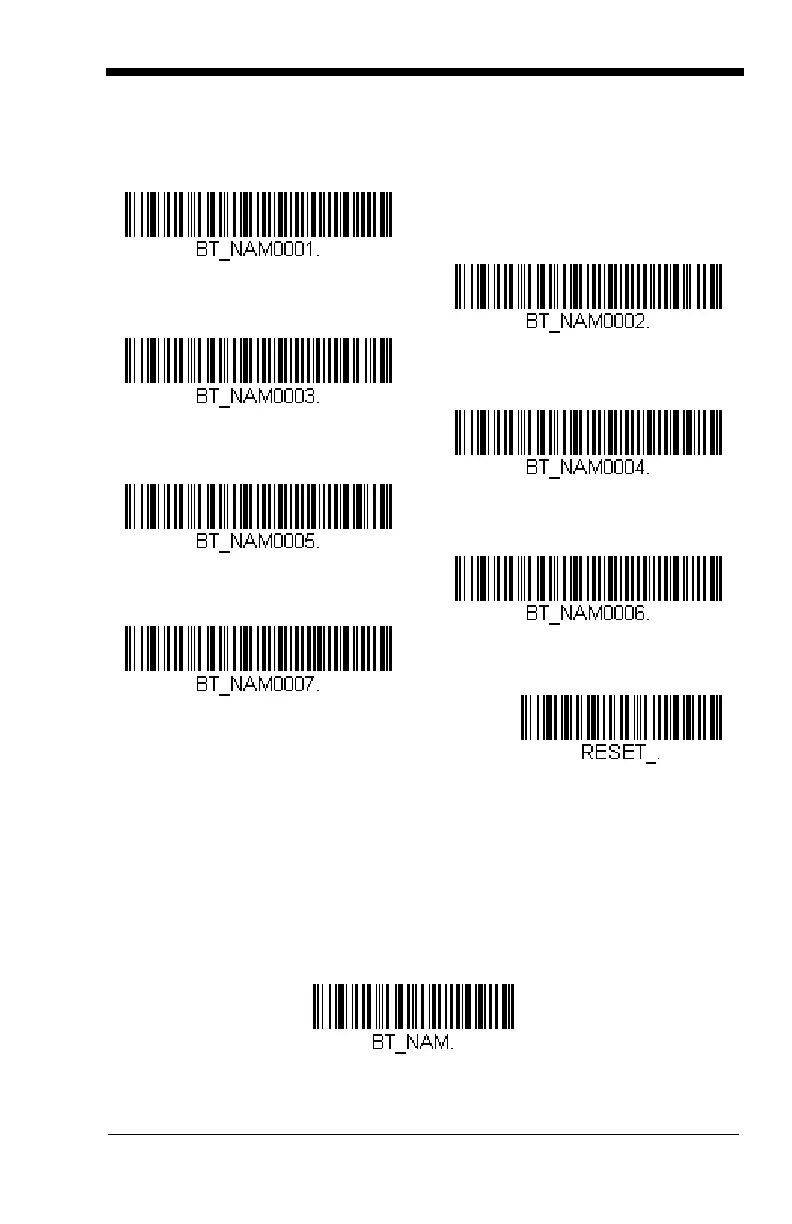

To rename scanners with sequential, numeric names, scan the following bar
codes.
Scan the Reset code after each name change and wait for the scanner
to relink to the base.
You may also scan the following Scanner Name bar code and scan up to 30
numbers and/or letters for the scanner name. For example, if you wanted to
name the linked scanner “312,” you would scan the following bar code, scan the
3, 1, and 2 bar codes on the Programming Chart inside the back cover of this
manual, then scan Save. Scan the Reset bar code and wait for the scanner to
relink to the base.
To output the name of the scanner, scan the following bar code. The name will
be output showing the product name, model number, and the scanner’s 10-digit
serial number.
0001
0002
0003
0005
0007
0004
Reset
0006
Scanner Name

Honeywell Voyager 1202G Specifications

General

Type	Handheld bar code reader
Sensor type	Laser
Scanner type	1D
Pitch reading angle	60 - 60 °
Linear (1D) barcodes supported	-
Wireless range	10 m
Bluetooth version	2.1+EDR
Operating frequency	2.4 - 2.5 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Battery life	12 h
Charging time	4 h
Input voltage	5 V
Battery capacity	1800 mAh
Power source type	Battery
Number of reads per charge	45000
Product color	Black
International Protection (IP) code	IP42
Storage temperature (T-T)	-5 - 35 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	180 mm
Width	66 mm
Height	92 mm
Weight	180 g
Base weight	185 g
Base dimensions	200 x 67 x 97 mm
