Vuquest 3320g User Guide
127

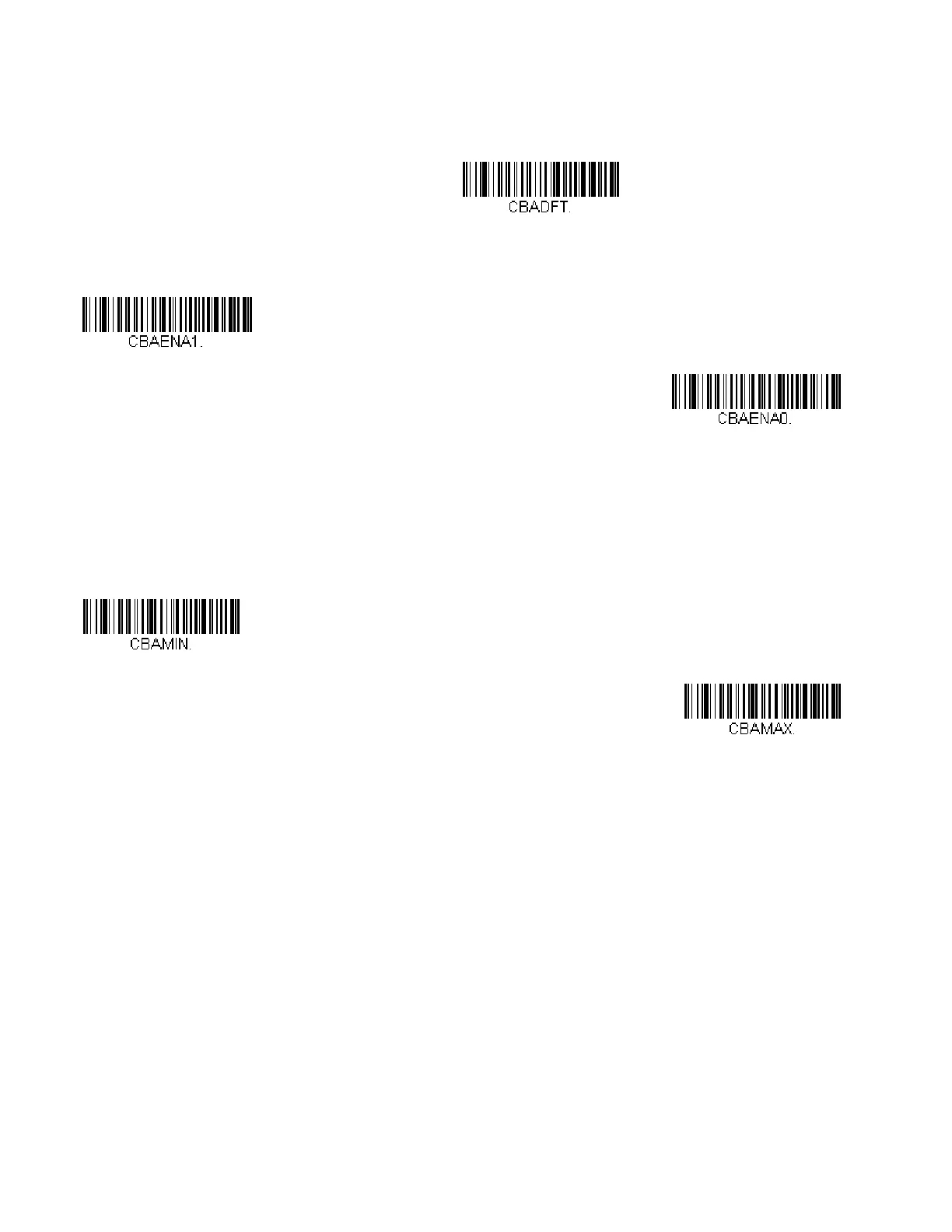

Codablock A
<Default All Codablock A Settings>
Codablock A On/Of
f
Codablock A Message Length
Scan the bar codes below to change
the message length. Refer to
Message Length
Description
(page 92) for additional informat
ion. Minimum and Maximum lengths
= 1-600. Minimum Default = 1, Maximum Default = 600.
On
* Off
Minimum Message Length
Maximum Message Length
142
144
