200 Vuquest 3320g User Guide

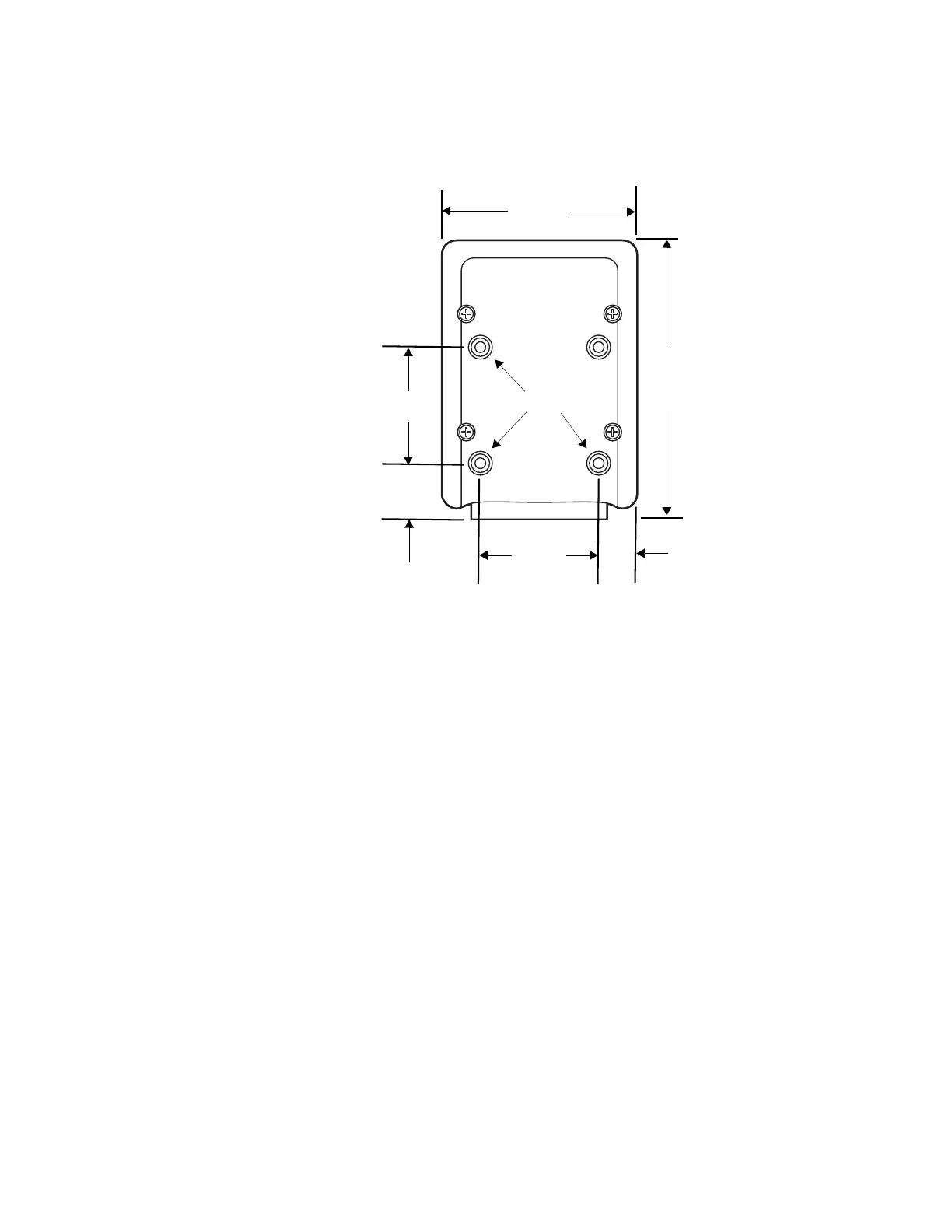

Mounting Specifications
The 3320 has three M3 x 0.5mm threaded inserts (5.0mm maximum depth) on the
bottom of the scanner for mounting with screws. Do not exceed 3cm-kg torque.
Mounting General Guidelines
• Avoid specular reflections, caused by ambient and internal light sources.
• The bar code should be slightly off perpendicular to the axis of the scanner.
• To reduce specular reflections the skew angle can vary significantly depending
on the application such as: ambient illumination sources, code size and code
type.
• Excessive angles should be avoided.
• Other factors, such as surface qualities, mounting distances, secondary
windows and external illumination can easily impact these recommendations.
• If a secondary window is used, the window should be mounted as close to the
front of scanner as possible at a 90° angle to the optical axis to avoid specular
reflections.
• For secondary windows, Honeywell recommends the following:
• Optical quality glass
• >95% transmission in the nominal 650nm wavelength
• Anti-reflective coating on both sides
Insert
51mm
73mm
30mm
14.8mm
31mm
9.3mm
