158 Vuquest 3320g User Guide
•1WShip histogram
Image Size Compatibility
If you have applications that expect an image ship to return exactly 640x480 pix-
els, scan the Force VGA Resolution bar code. Default = Native Resolution.
Intelligent Signature Capture - IMGBOX
IMGBOX allows you to configure the size and location of a signature capture area
relative to its proximity to a bar code. This allows you to tailor a signature capture
area to a specific form. In order to use IMGBOX, you need a set form where the sig-
nature box location is in a known location relative to a bar code. You can input the
overall size of the signature area, as well as specify how far the signature area is
from the bar code, vertically and horizontally. You can also set the resolution and
file format for the final output of the signature capture image.
Note: IMGBOX commands can only be triggered by one of the following types of bar codes:
PDF417, Code 39, Code 128, Aztec, Codabar, and Interleaved 2 of 5. Once one of
these symbologies has been read, the image is retained for a possible IMGBOX
command.

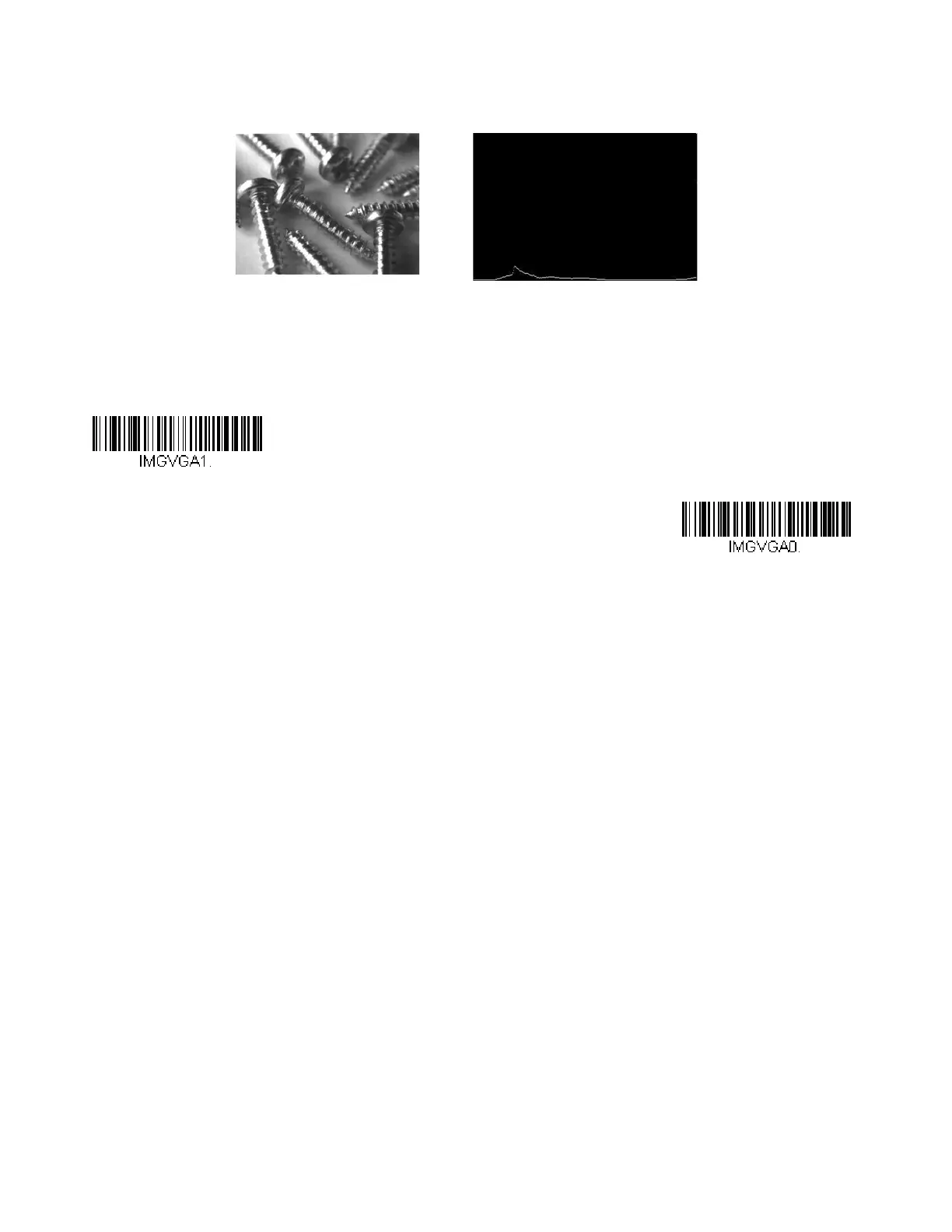

Image used for histogram: Histogram of image at left:
