NOTE:
For a QSFP+ module, you do not need to differentiate between the Tx and Rx ports. For other types of
transceiver modules, the Tx port on one end must connect to the RX port on the other end.

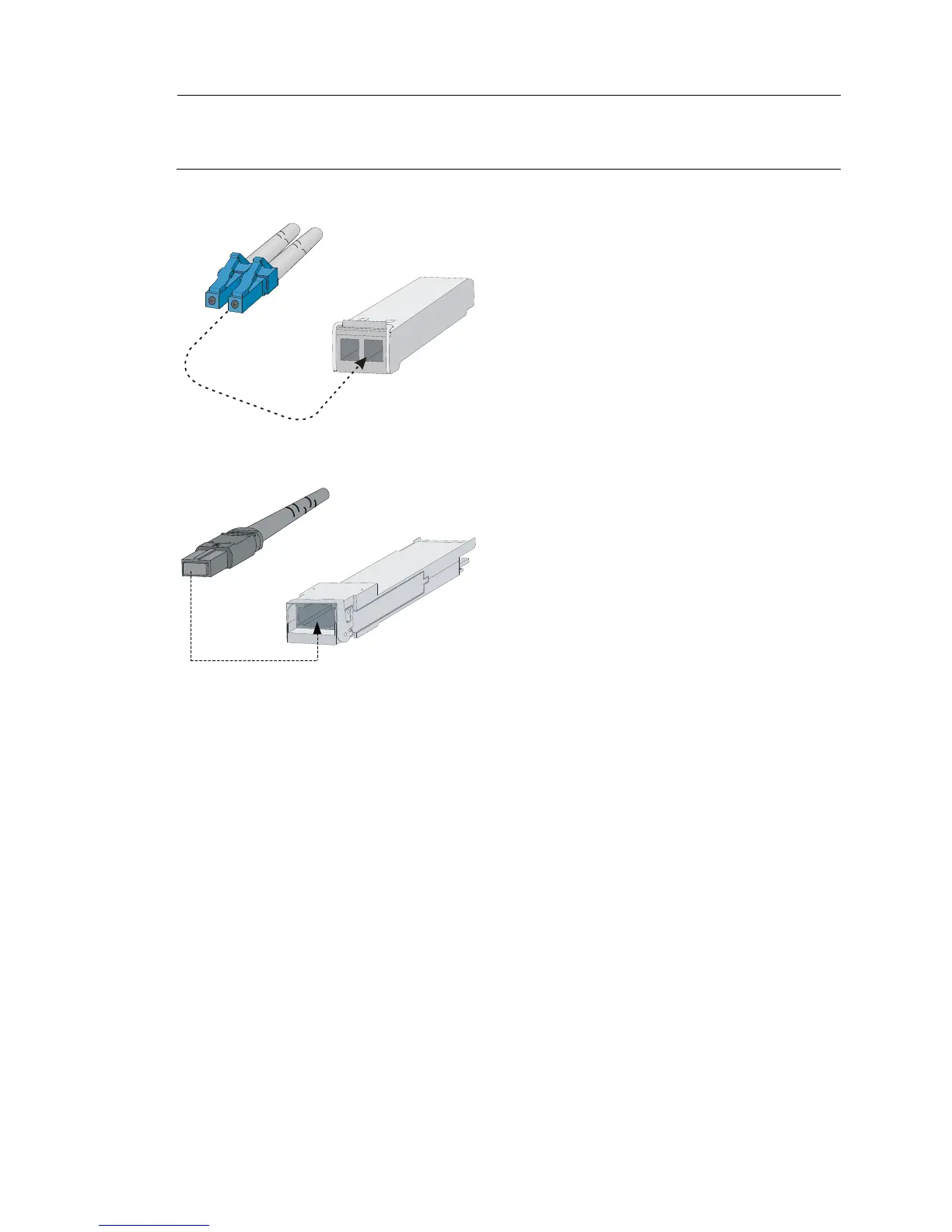

Figure 36 Using LC optical fiber connectors to connect transceiver modules
Figure 37 Using an MPO optical fiber connector to connect a QSFP+ module
Testing connectivity
After you connect the switch to the network, use the ping or tracert command to test network connectivity.
For more information about these commands, see HP 10500 Switch Series Command References.
LC plug
SFP module
MPO plug
QSFP+ module
