Power button board
1. Prepare the computer for disassembly (Preparation for disassembly on page 15).
2. Remove the access panel (Access panel on page 16).
3. Remove the front bezel (Front bezel on page 21).

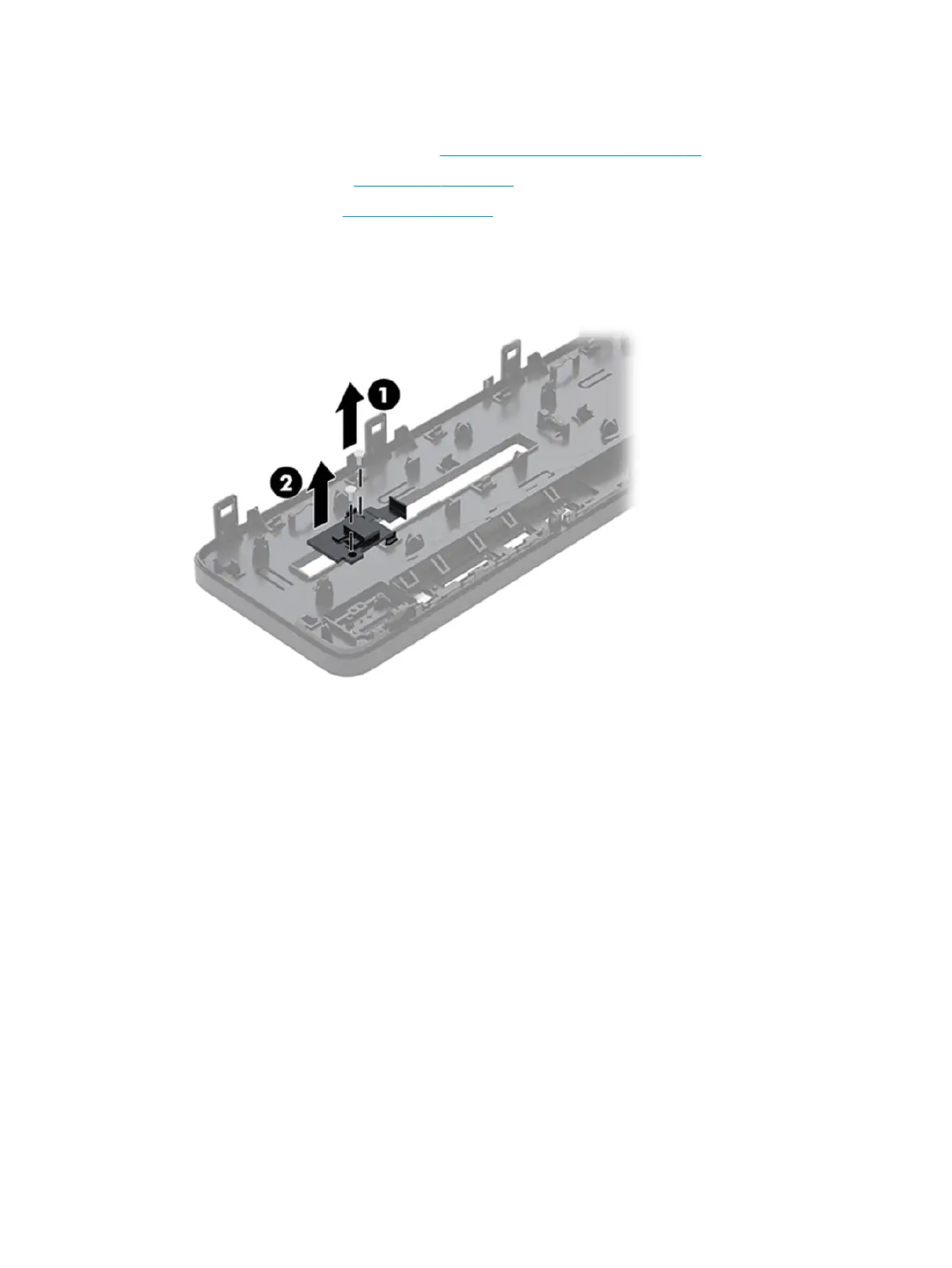

4. Position the front bezel with the inside toward you.
5. Remove the two Phillips screws (1) that secure the board to the inside of the front bezel.
6. Remove the power button board from the front bezel (2).
To install the power button board, reverse the removal procedures.
