Solid-state drive module
The M.2 solid-state drive module is located under the drive cage.
Solid-state drives, M.2
256-GB, PCIe
128-GB, PCIe
128-GB, SATA-3
1. Prepare the computer for disassembly (Preparation for disassembly on page 15).
2. Remove the access panel (Access panel on page 16).
3. Remove the front bezel (Front bezel on page 21).
4. Remove the optical drive (Optical drive on page 23).
5. Remove the drive cage (Hard drive on page 25).

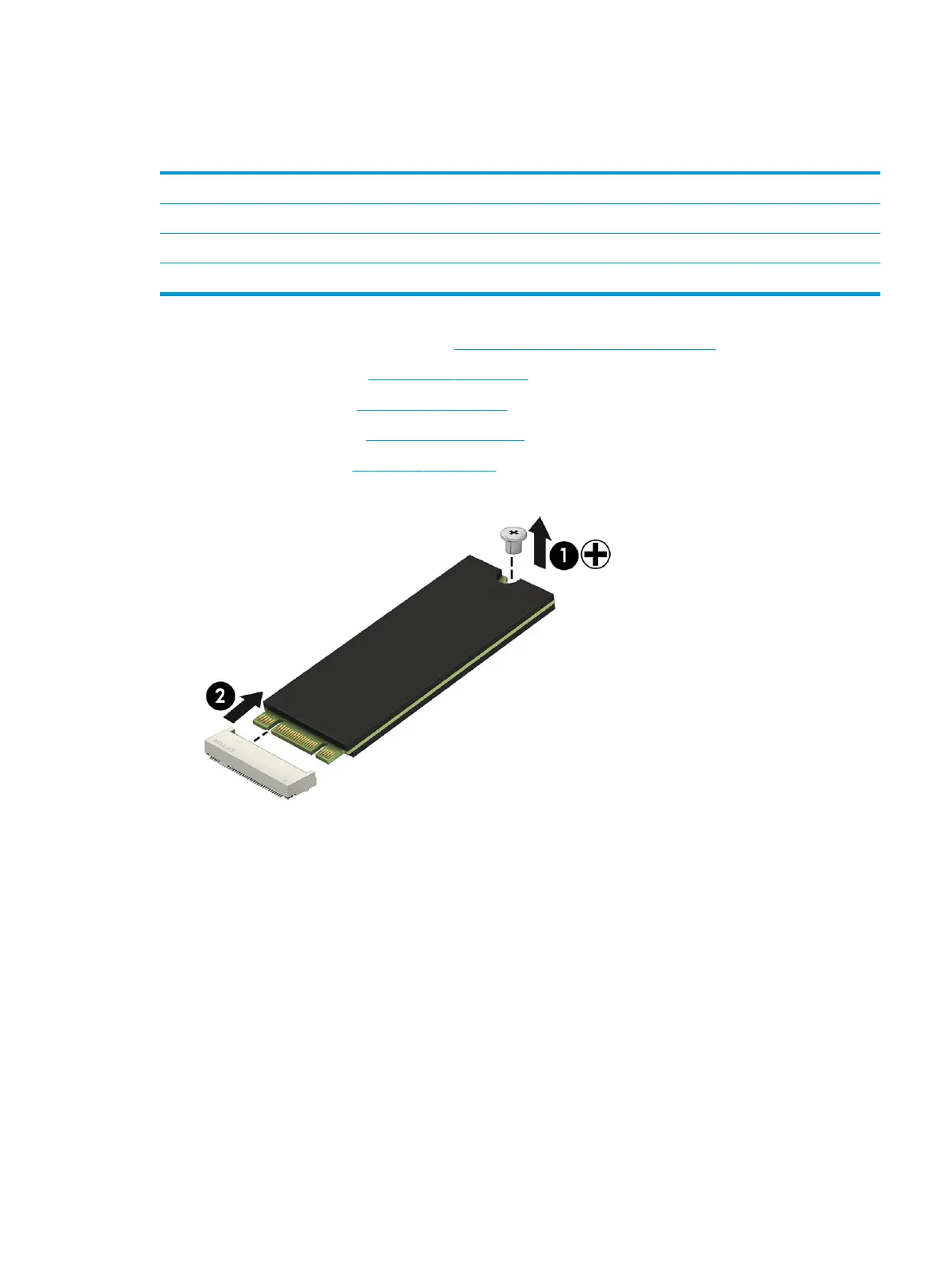

6. Remove the Phillips M2.0×3.0 screw (1), and then pull the module out of the socket (2).
To install the solid-state drive module, reverse the removal procedures.
Solid-state drive module 27
