Fan duct
The fan duct sits atop the fan sink and is secured to the fan sink with tabs.

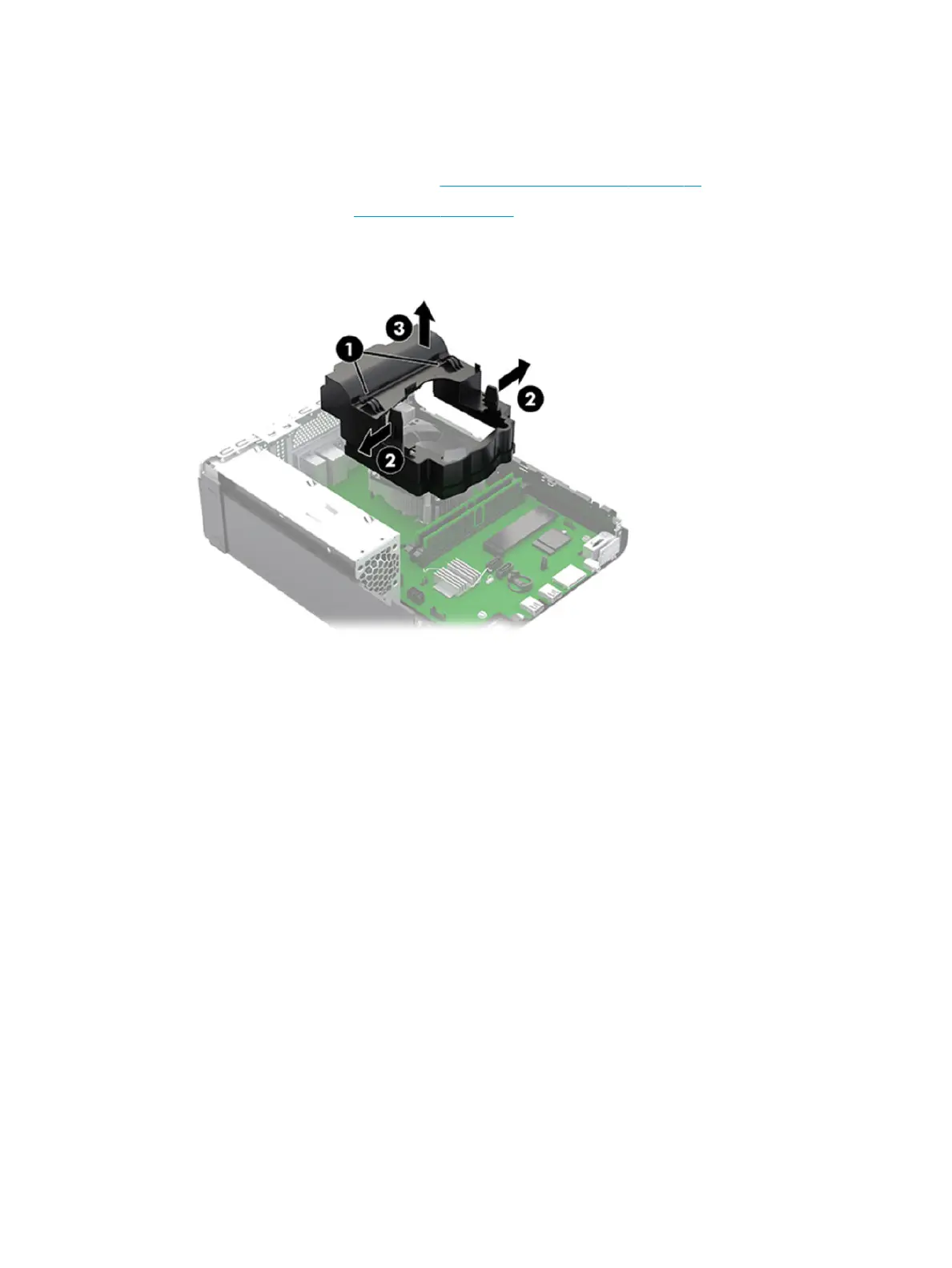

1. Prepare the computer for disassembly (Preparation for disassembly on page 15).
2. Remove the access panel (Access panel on page 16).
3. Remove the power supply cable from the clips on the duct (1).
4. Pull the tabs away from each other (2), and then lift the duct o the fan sink (3).
To install the fan duct, reverse the removal procedures.
32 Chapter 4 Removal and replacement procedures
