Antenna cable
The wireless antenna cable routes along the bottom of the computer chassis.
1. Prepare the computer for disassembly (Preparation for disassembly on page 15).
2. Remove the access panel (Access panel on page 16).
3. Remove the optical drive (Optical drive on page 23).
4. Remove the front bezel (Front bezel on page 21).
5. Remove the fan duct (Fan duct on page 32).
6. Remove the fan sink (Fan sink on page 33).
7. Remove the drive cage (Hard drive on page 25).
8. Remove the system board (System board on page 37).

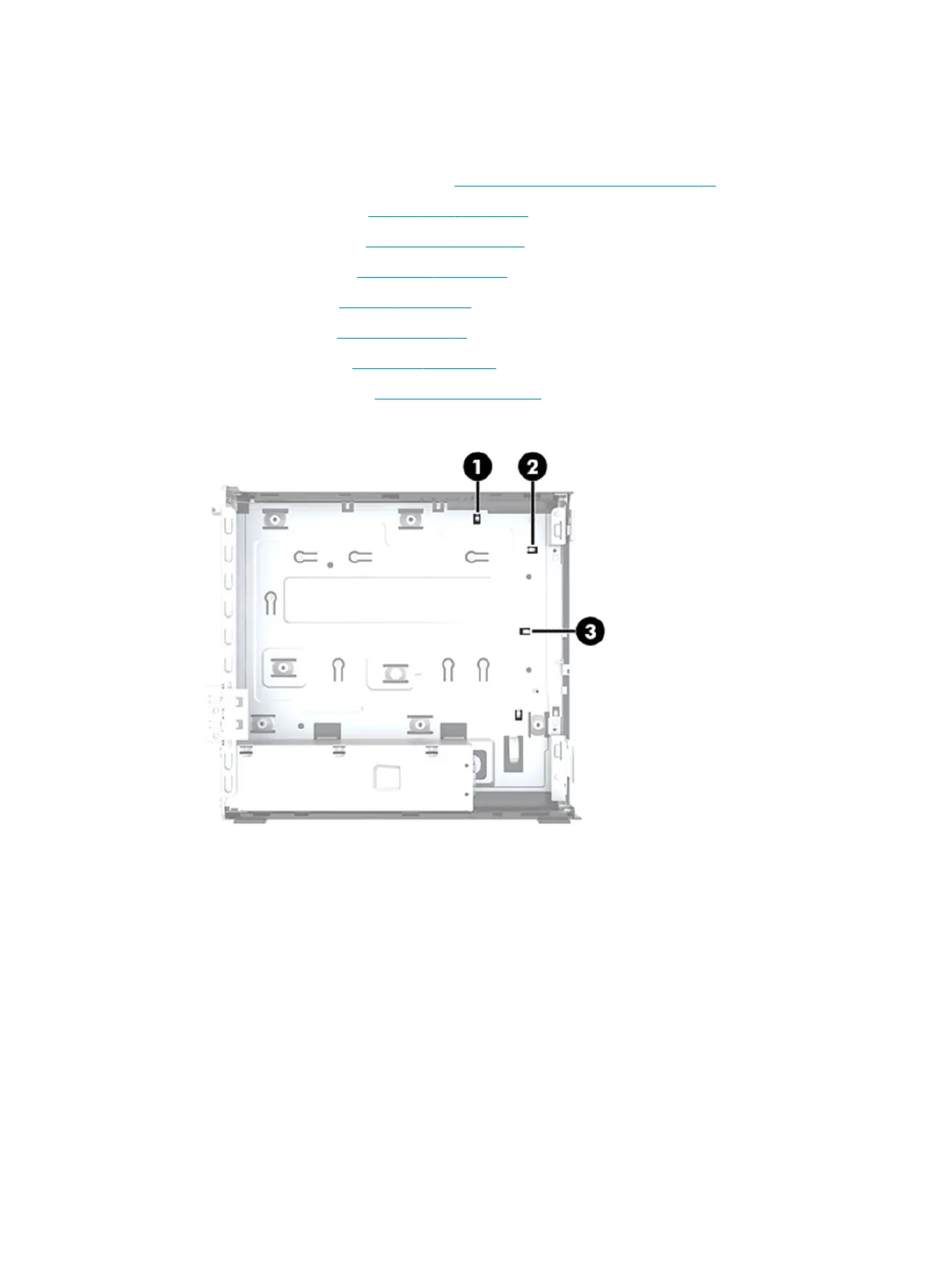

9. Remove the cable from the three clips (1), (2), (3) built into base pan.
10. Peel the antenna o the front of the computer.
To install the antenna cable, reverse the removal procedures.
Antenna cable 39
