104 Getting Started HP 81110/04A Quick Start
Getting Started
Examples
2 Press the |MODE/TRG| softkey to enter the Operating/Trigger Mode
menu. The internal PLL is used to trigger the startable internal
oscillator. The PLL defines the burst repetition, the oscillator
generates the pulse period.
Move to CONTINUOUS and select
TRIGGERED. Move to PULSES
and select BURST of.
Move down and set 5 - Single-Pulses at Out 1 and
Double-Pulses at Out 2. Move down and select Trg’d by: PLL
→
Per
and set the burst repetition to 5.000
µ
s
.

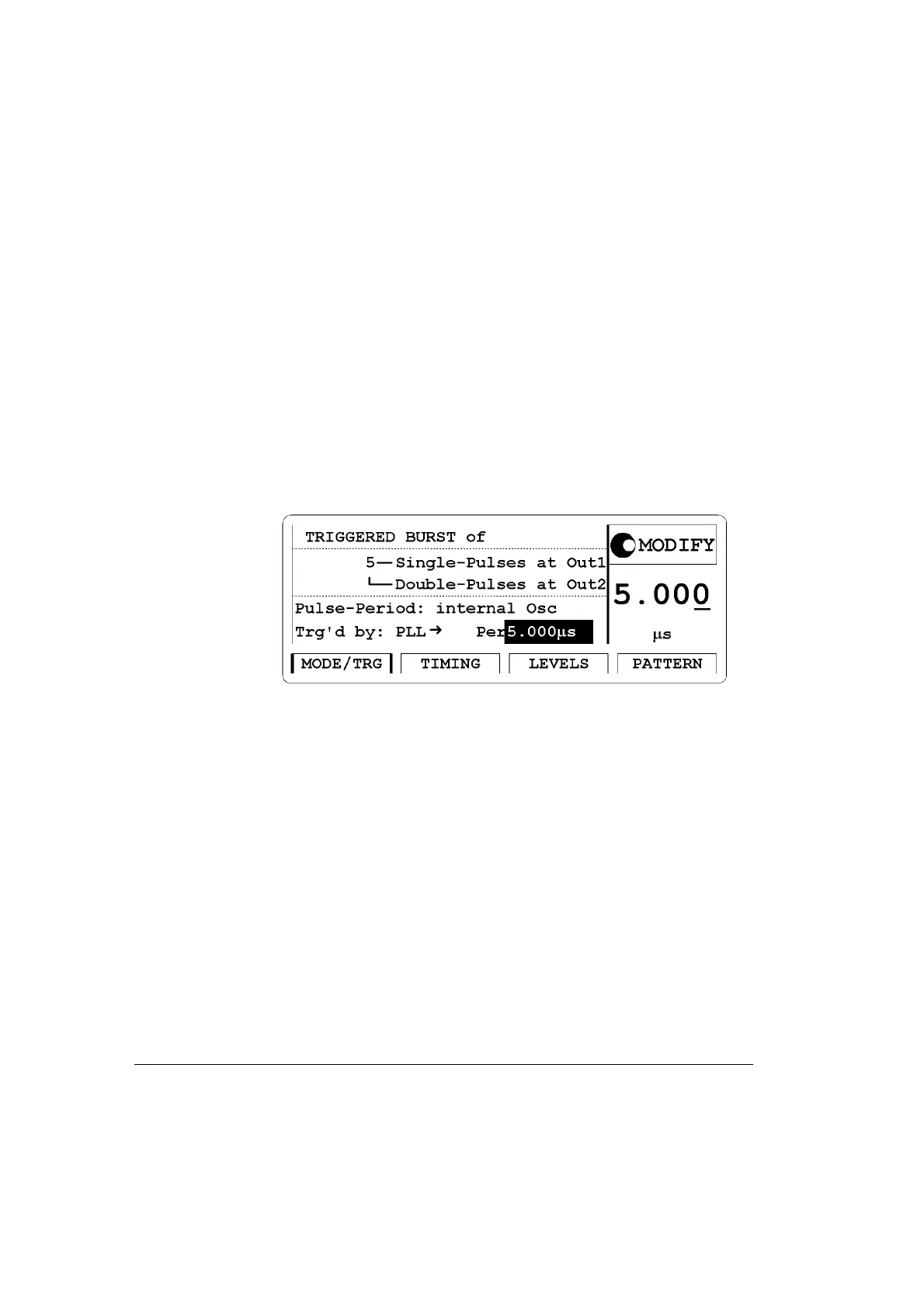

Figure 54 Current MODE/TRG Screen
