106 Getting Started HP 81110/04A Quick Start
Getting Started
Examples

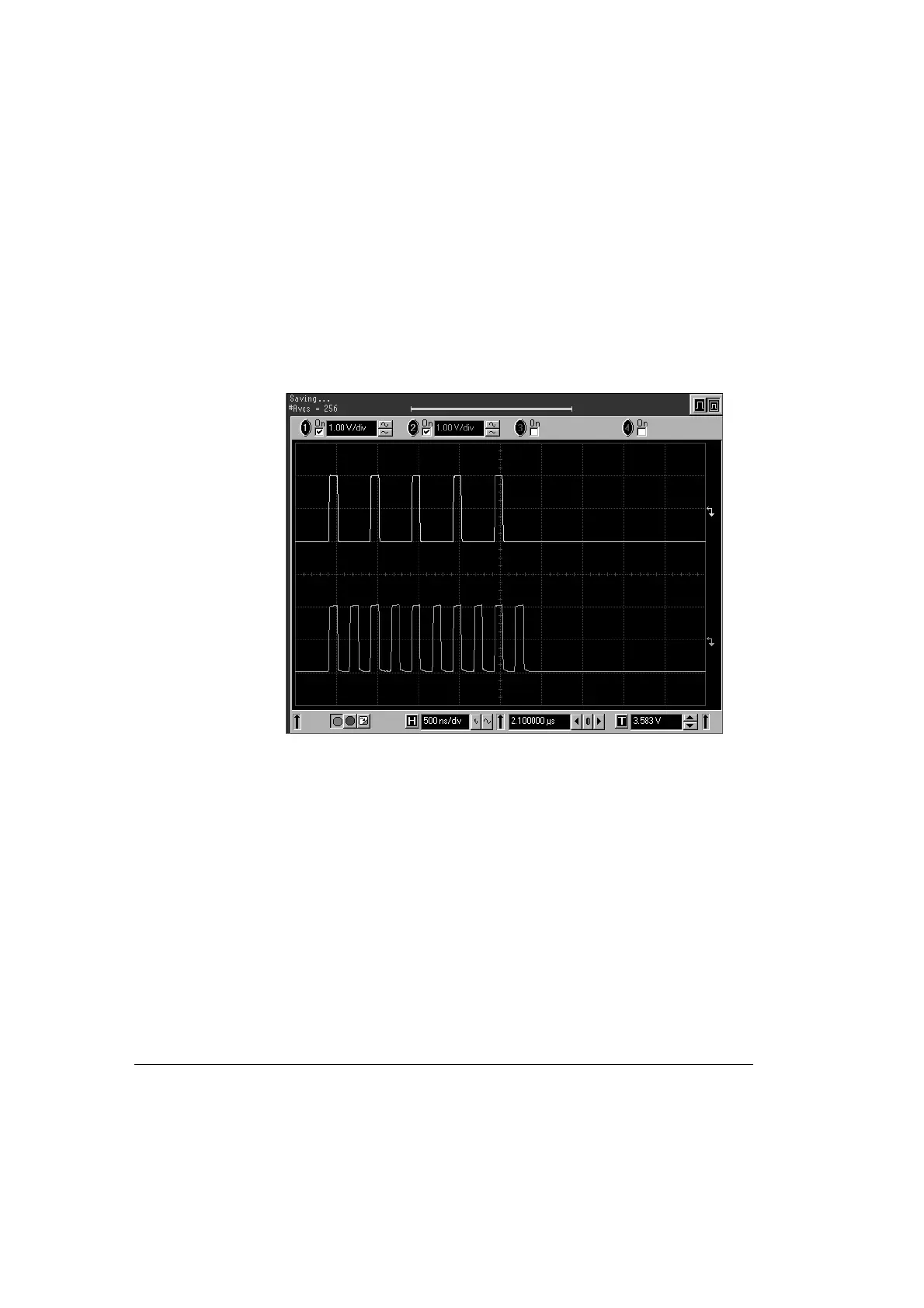

5 Here are the signals as displayed on the HP 54810A Infinium
Oscilloscope. Use the generator’s STROBE OUT to trigger the scope.
Figure 57 Resulting Display
