76 Getting Started HP 81110/04A Quick Start
Getting Started
Examples

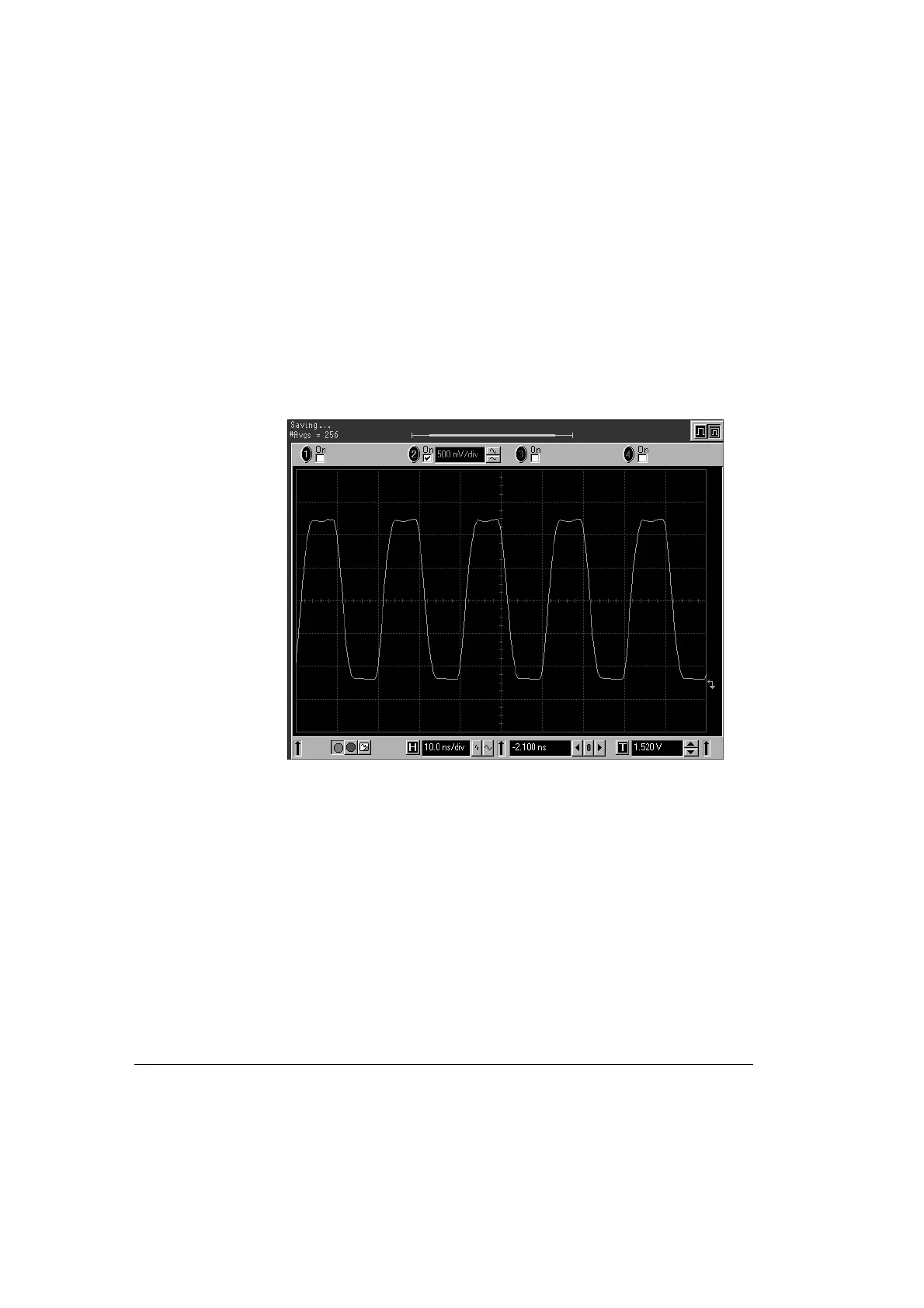

5 Here is the signal as displayed on an HP 54810A Infinium
oscilloscope. Use the generator’s TRIGGER OUT to trigger the
scope.
Figure 30 Resulting Signal
