80 Getting Started HP 81110/04A Quick Start
Getting Started
Examples
2 For reference the current |MODE/TRG| screen is displayed.There is
nothing to change.

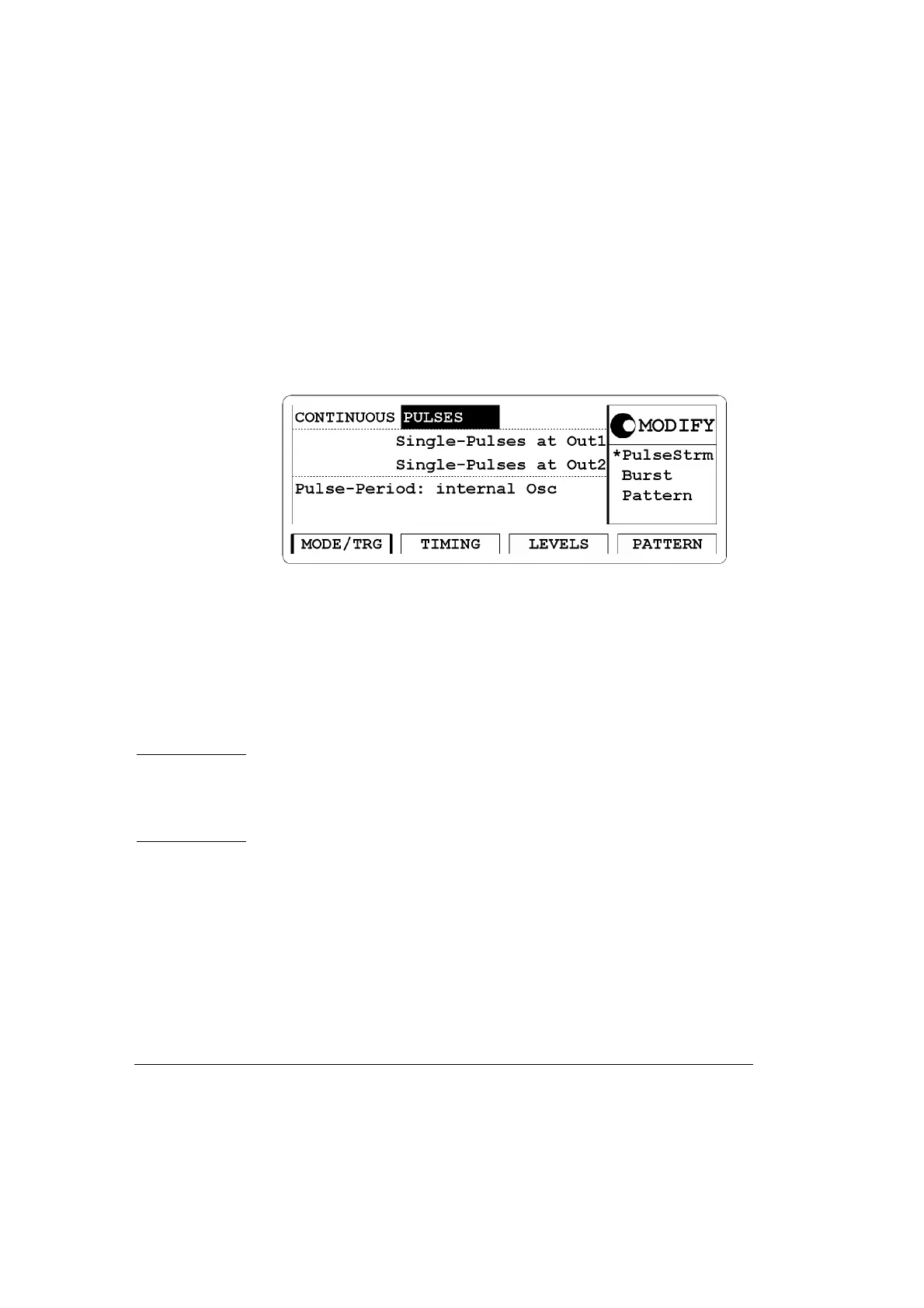

Figure 32 Current MODE/TRG Menu
3 Press the |TIMING| softkey to enter the Timing menu.
•Switch
ON the Output Channel 1.
• Enter a period of
20 ns. Enter a pulse width of 10 ns.
•Enter 3 ns for leading edge. Select Absolute for trailing edge and enter
a value of
5 ns.
NOTE: With HP 81110A with HP 81112A 3.8V/330 MHz Output
channels installed the transition times can be either 800 ps or 1.6
ns, trailing edge is equal to leading edge. The minimum transition
times for the HP 81104A are 3 ns.
