HP 81110A - Page 80

82 Getting Started HP 81110/04A Quick Start
Getting Started
Examples
4 Press the |LEVELS| softkey to enter the Levels menu.
Enter an offset of 1.65 V and an amplitude of 3.30 V.

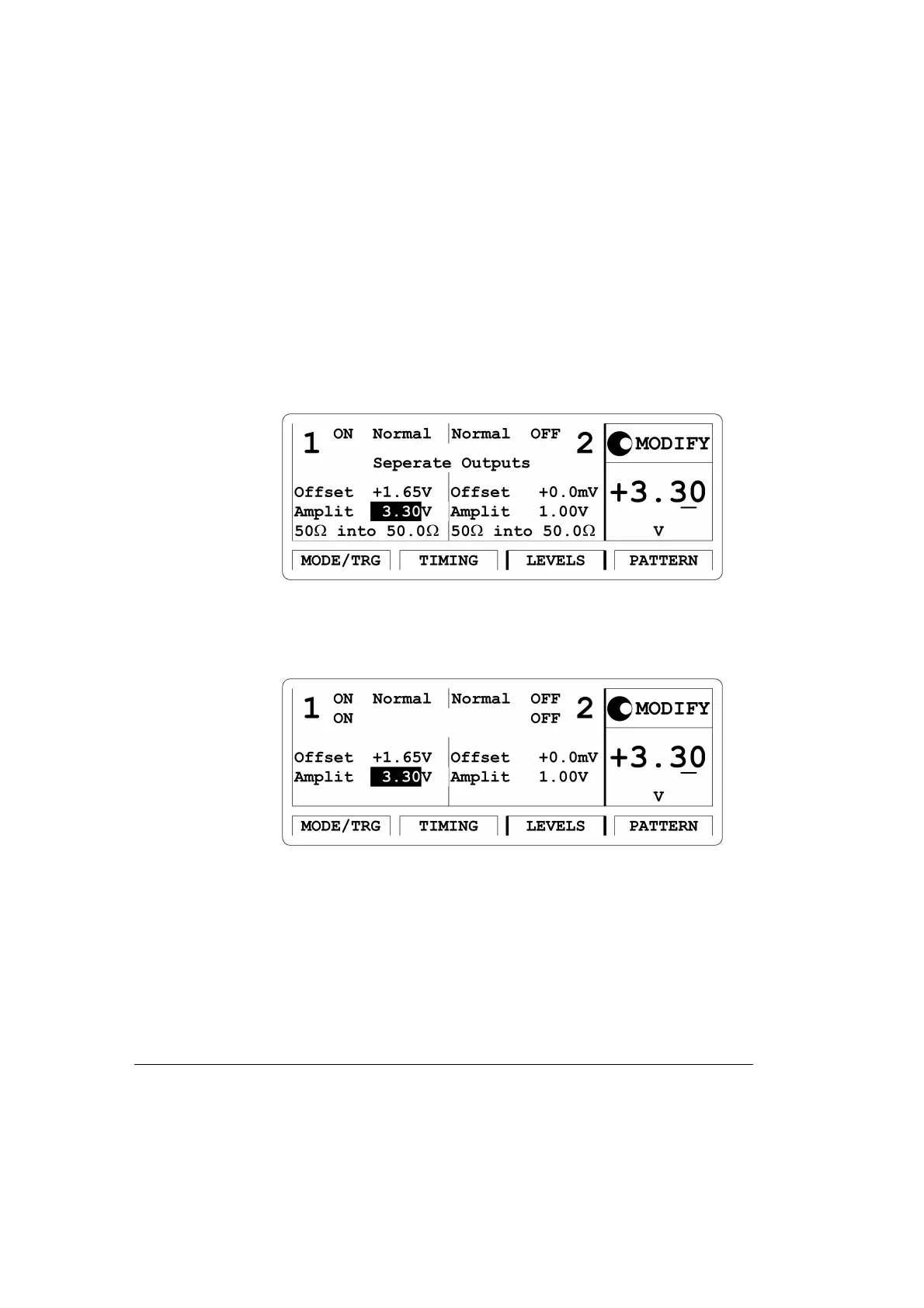

Figure 34 Current LEVELS Screen for HP 81104A and HP 81110A
with HP 81111A installed
Figure 35 Current LEVELS Screen for HP 81110A with HP 81112A in-
stalled
