94 Getting Started HP 81110/04A Quick Start
Getting Started
Examples

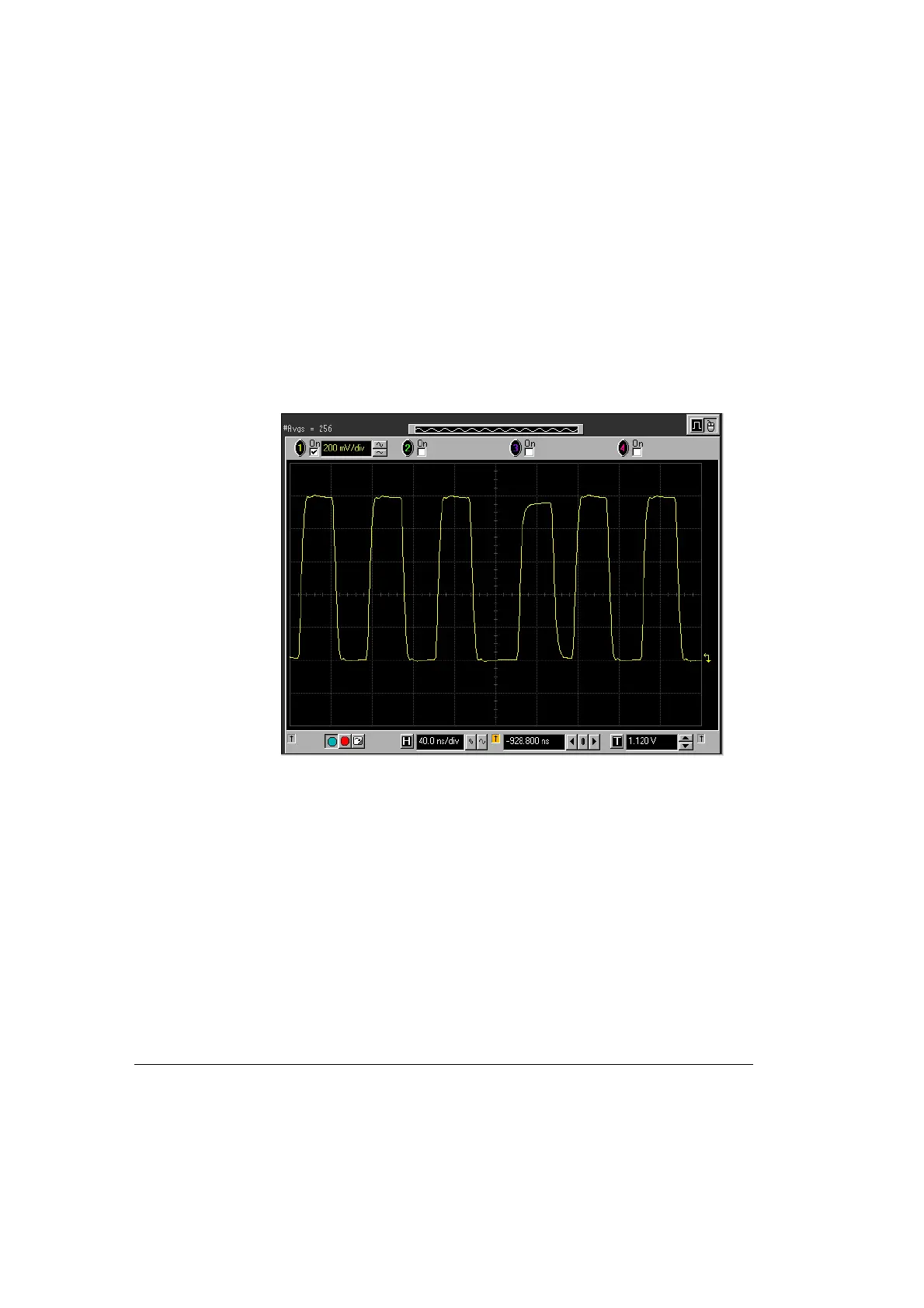

6 Here is the HP 54810A Infinium Scope display of the distorted and
displaced pulse generated by the instrument. Use the generator’s
STROBE OUT to trigger the scope.
Figure 46 Resulting Signal
