100 Getting Started HP 81110/04A Quick Start
Getting Started
Examples

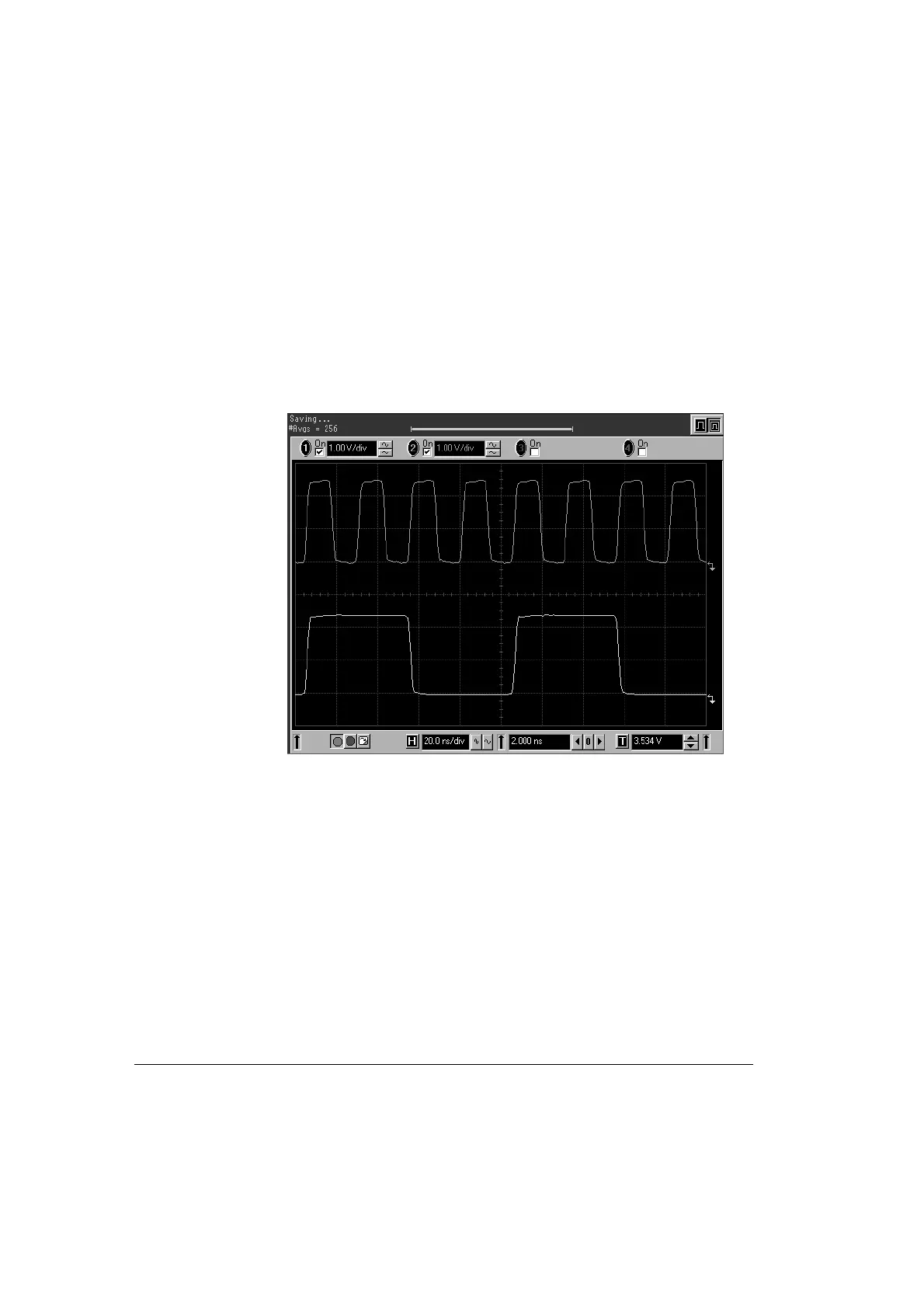

6 Here is the HP 54810A Infinium Scope Display of the two different
frequency clock signals generated by the instrument Use the
generator’s STROBE OUT to trigger the scope.
Figure 52 Resulting Signals
