B

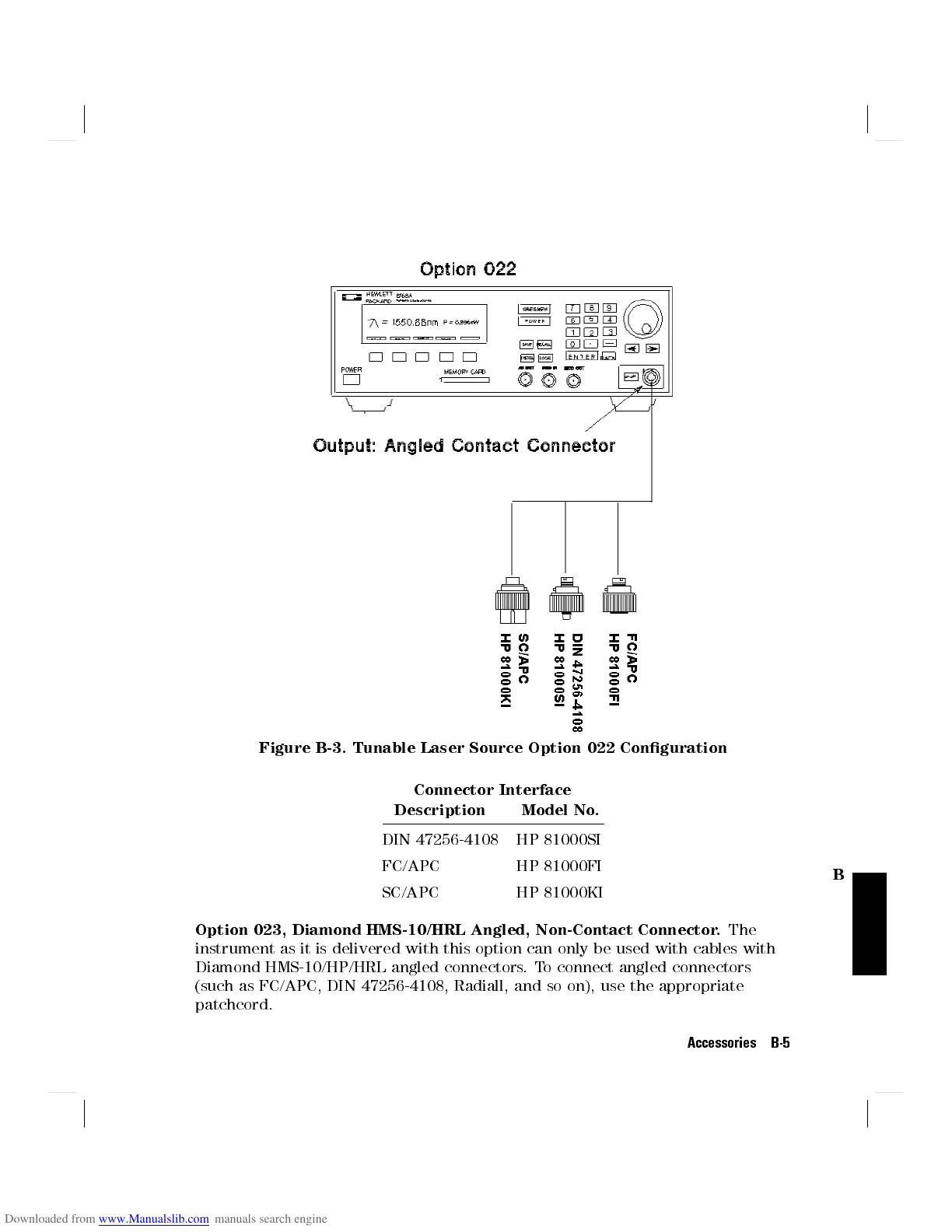

Figure B-3. Tunable Laser Source Option 022 Conguration
Connector Interface
Description Model No.
DIN 47256-4108 HP 81000SI
FC/APC HP 81000FI
SC/APC HP 81000KI
Option 023, Diamond HMS-10/HRL Angled, Non-Contact Connector.
The
instrument as it is delivered with this option can only be used with cables with
Diamond HMS-10/HP/HRL angled connectors.To connect angled connectors
(such as FC/APC, DIN 47256-4108, Radiall, and so on), use the appropriate
patchcord.
Accessories B-5
