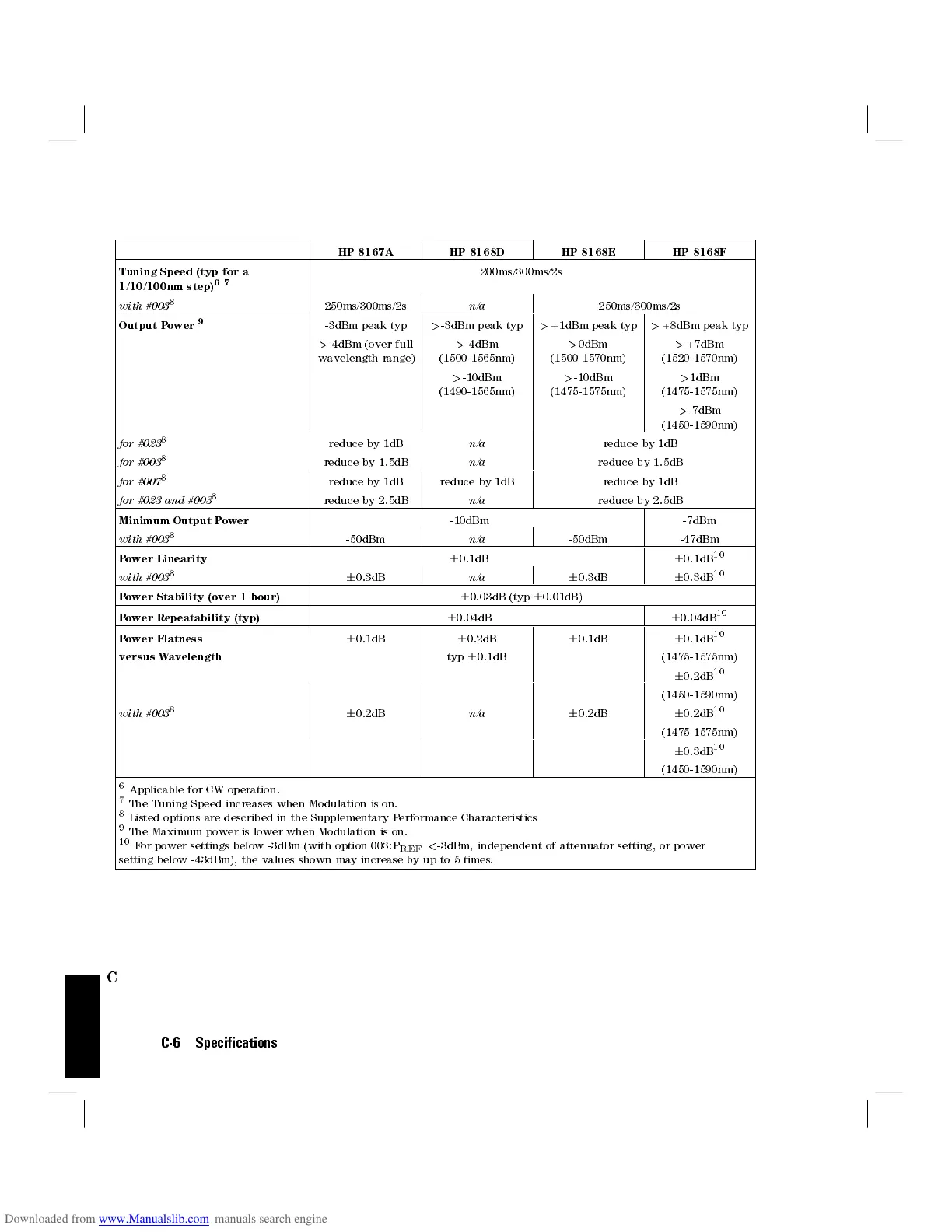

HP 8168E - Page 156

C
HP 8167A HP 8168D HP 8168E HP 8168F
Tuning Speed (typ for a
1/10/100nm step)
67
200ms/300ms/2s
with #003
8
250ms/300ms/2s n/a 250ms/300ms/2s
Output Power
9
-3dBm peak typ > -3dBm peak typ > +1dBm peak typ > +8dBm peak typ
> -4dBm (over full
wavelength range)
> -4dBm
(1500-1565nm)
> 0dBm
(1500-1570nm)
> +7dBm
(1520-1570nm)
> -10dBm
(1490-1565nm)
> -10dBm
(1475-1575nm)
> 1dBm
(1475-1575nm)
> -7dBm
(1450-1590nm)
for #023
8
reduce by 1dB n/a reduce by 1dB
for #003
8
reduce by 1.5dB n/a reduce by 1.5dB
for #007
8
reduce by 1dB reduce by 1dB reduce by 1dB
for #023 and #003
8
reduce by 2.5dB n/a reduce by 2.5dB
Minimum Output Power -10dBm -7dBm
with #003
8
-50dBm n/a -50dBm -47dBm
Power Linearity 6 0.1dB 6 0.1dB
10
with #003
8
6 0.3dB n/a 6 0.3dB 6 0.3dB
10
Power Stability (over 1 hour) 6 0.03dB (typ 6 0.01dB)
Power Repeatability (typ) 6 0.04dB 6 0.04dB
10
Power Flatness 6 0.1dB 6 0.2dB 6 0.1dB 6 0.1dB
10
versus Wavelength typ 6 0.1dB (1475-1575nm)
6 0.2dB
10
(1450-1590nm)
with #003
8
6 0.2dB n/a 6 0.2dB 6 0.2dB
10
(1475-1575nm)
6 0.3dB
10
(1450-1590nm)
6
Applicable for CW operation.
7
The Tuning Speed increases when Modulation is on.
8
Listed options are described in the Supplementary Performance Characteristics
9
The Maximum power is lower when Modulation is on.
10
For power settings below -3dBm (with option 003:P
REF
< -3dBm, independent of attenuator setting, or power
setting below -43dBm), the values shown may increase by up to 5 times.
C-6 Specications
