D

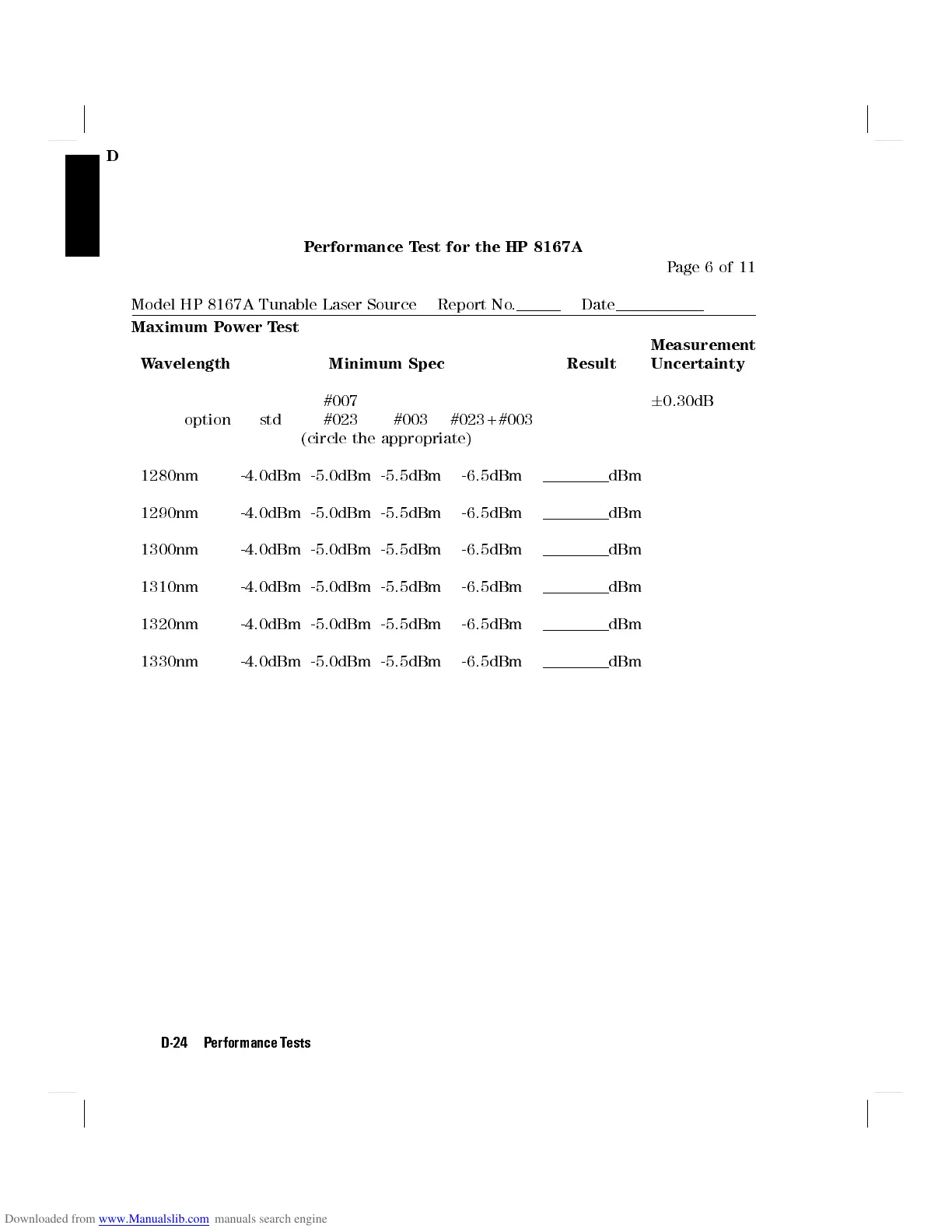

Performance Test for the HP 8167A
Page 6 of 11
Model HP 8167A Tunable Laser Source Report No. Date
Maximum Power Test
Measurement
Wavelength Minimum Spec Result Uncertainty
#007
6
0.30dB
option std #023 #003 #023+#003
(circle the appropriate)
1280nm -4.0dBm -5.0dBm -5.5dBm -6.5dBm dBm
1290nm -4.0dBm -5.0dBm -5.5dBm -6.5dBm dBm
1300nm -4.0dBm -5.0dBm -5.5dBm -6.5dBm dBm
1310nm -4.0dBm -5.0dBm -5.5dBm -6.5dBm dBm
1320nm -4.0dBm -5.0dBm -5.5dBm -6.5dBm dBm
1330nm -4.0dBm -5.0dBm -5.5dBm -6.5dBm dBm
D-24 Performance Tests
