D

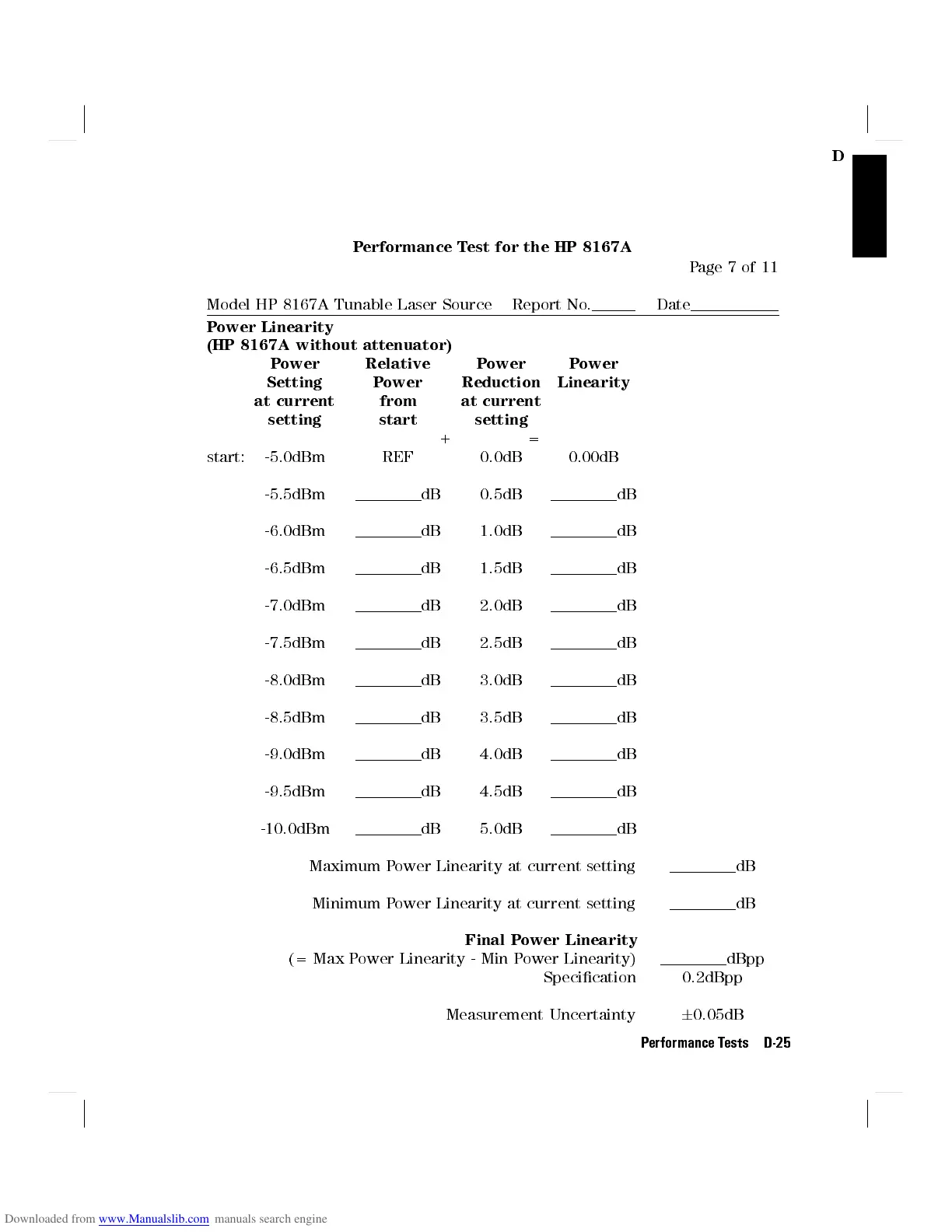

Performance Test for the HP 8167A
Page 7 of 11
Model HP 8167A Tunable Laser Source Report No. Date
Power Linearity
(HP 8167A without attenuator)
Power Relative Power Power
Setting Power Reduction Linearity
at current from at current
setting start setting
+ =
start: -5.0dBm REF 0.0dB 0.00dB
-5.5dBm dB 0.5dB dB
-6.0dBm dB 1.0dB dB
-6.5dBm dB 1.5dB dB
-7.0dBm dB 2.0dB dB
-7.5dBm dB 2.5dB dB
-8.0dBm dB 3.0dB dB
-8.5dBm dB 3.5dB dB
-9.0dBm dB 4.0dB dB
-9.5dBm dB 4.5dB dB
-10.0dBm dB 5.0dB dB
Maximum Power Linearity at current setting dB
Minimum Power Linearity at current setting dB
Final Power Linearity
(= Max Power Linearity - Min Power Linearity) dBpp
Specication 0.2dBpp
Measurement Uncertainty 6 0.05dB
Performance Tests D-25
