D

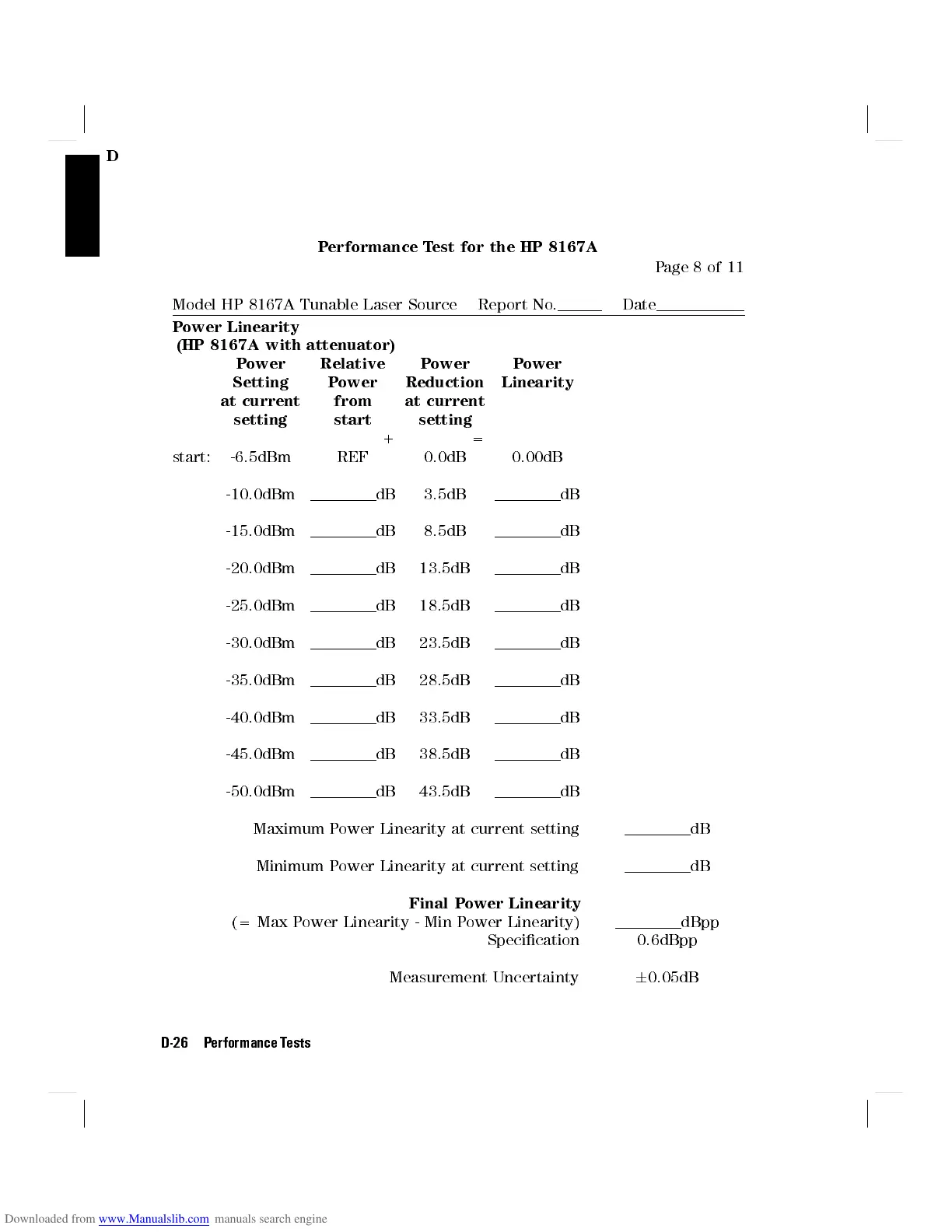

Performance Test for the HP 8167A
Page 8 of 11
Model HP 8167A Tunable Laser Source Report No. Date
Power Linearity
(HP 8167A with attenuator)
Power Relative Power Power
Setting Power Reduction Linearity
at current from at current
setting start setting
+ =
start: -6.5dBm REF 0.0dB 0.00dB
-10.0dBm dB 3.5dB dB
-15.0dBm dB 8.5dB dB
-20.0dBm dB 13.5dB dB
-25.0dBm dB 18.5dB dB
-30.0dBm dB 23.5dB dB
-35.0dBm dB 28.5dB dB
-40.0dBm dB 33.5dB dB
-45.0dBm dB 38.5dB dB
-50.0dBm dB 43.5dB dB
Maximum Power Linearity at current setting dB
Minimum Power Linearity at current setting dB
Final Power Linearity
(= Max Power Linearity - Min Power Linearity) dBpp
Specication 0.6dBpp
Measurement Uncertainty 6 0.05dB
D-26 Performance Tests
