D

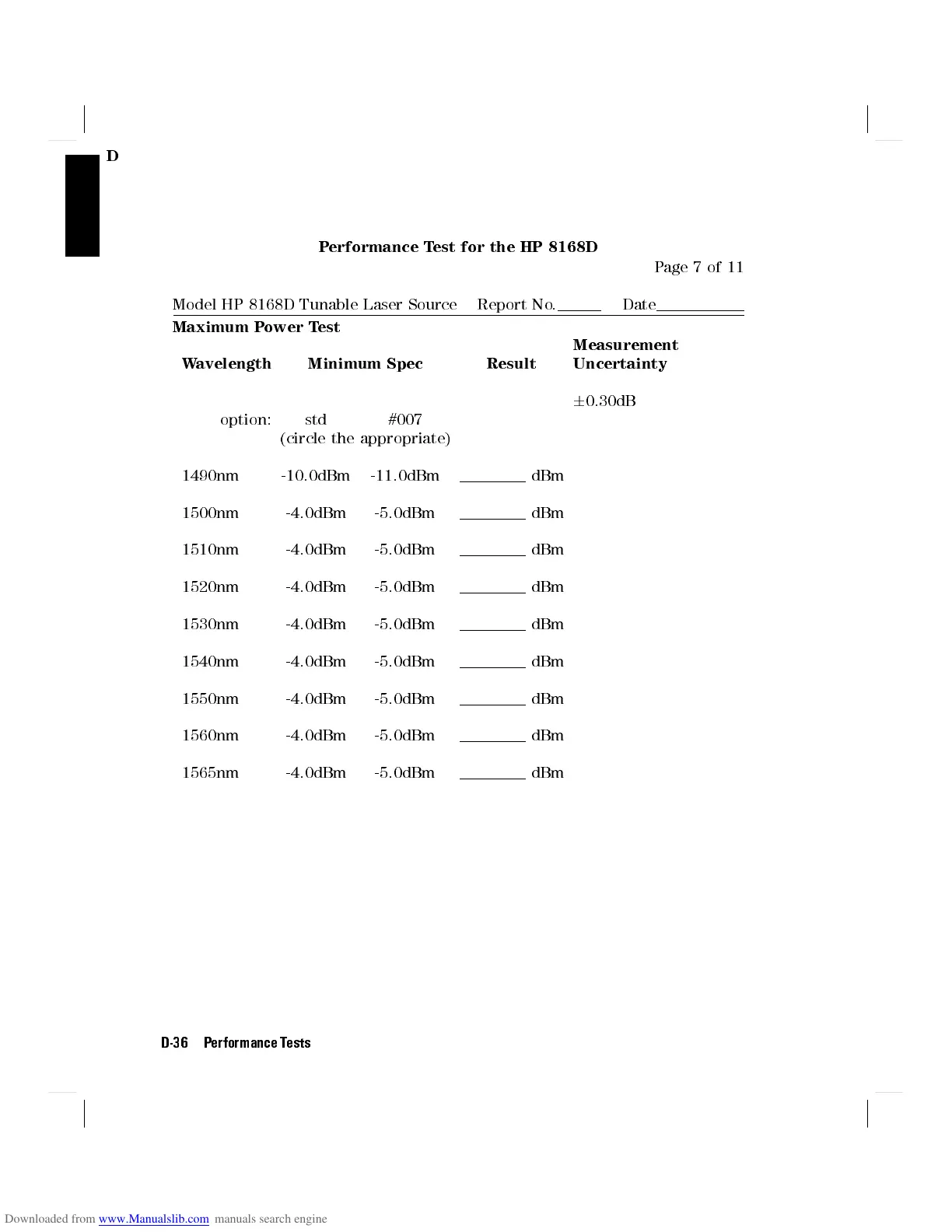

Performance Test for the HP 8168D
Page 7 of 11
Model HP 8168D Tunable Laser Source Report No. Date
Maximum Power Test
Measurement
Wavelength Minimum Spec Result Uncertainty
6 0.30dB
option: std #007
(circle the appropriate)
1490nm -10.0dBm -11.0dBm dBm
1500nm -4.0dBm -5.0dBm dBm
1510nm -4.0dBm -5.0dBm dBm
1520nm -4.0dBm -5.0dBm dBm
1530nm -4.0dBm -5.0dBm dBm
1540nm -4.0dBm -5.0dBm dBm
1550nm -4.0dBm -5.0dBm dBm
1560nm -4.0dBm -5.0dBm dBm
1565nm -4.0dBm -5.0dBm dBm
D-36 Performance Tests
