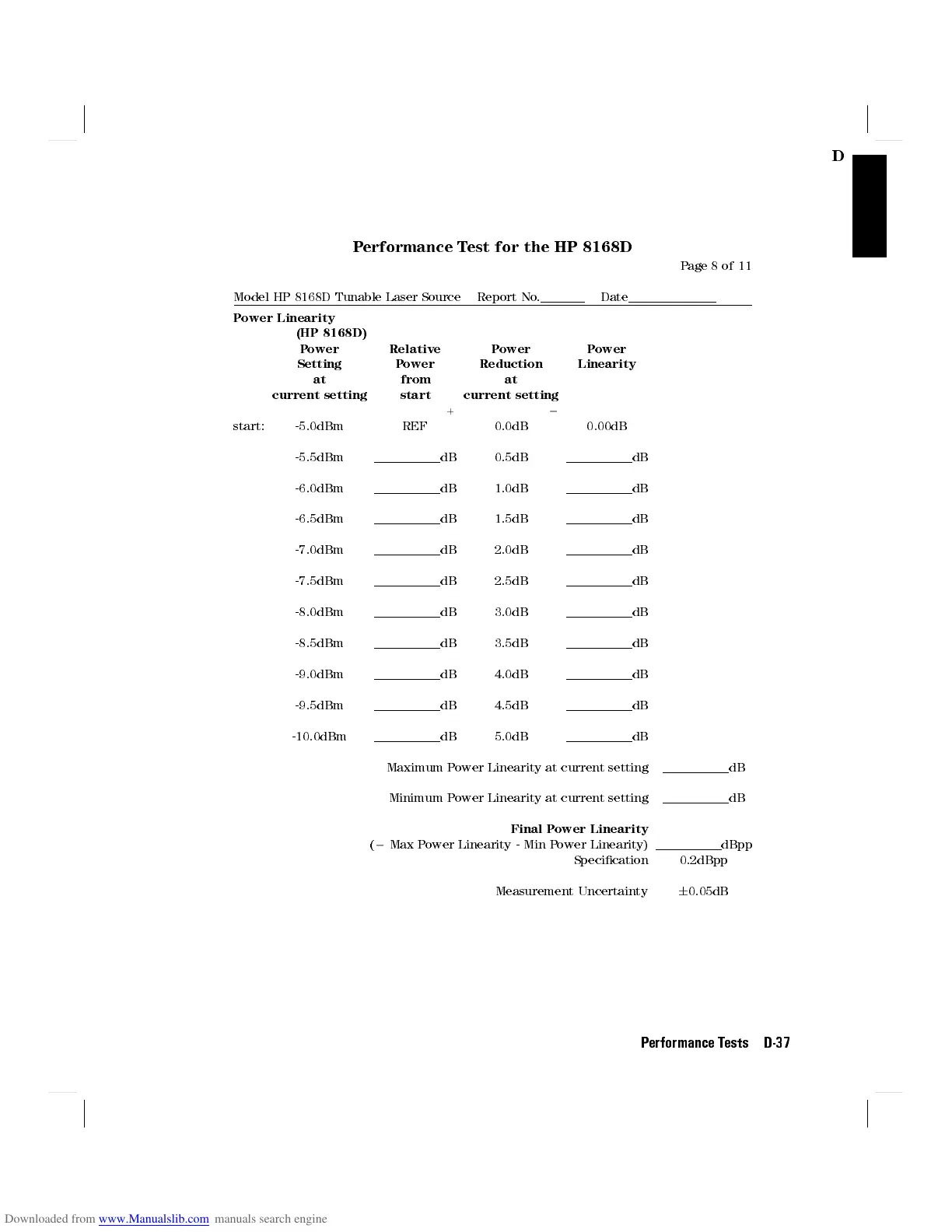

Performance Test for the HP 8168D
Page 8 of 11
Model HP 8168D Tunable Laser Source Report No. Date
Power Linearity
(HP 8168D)
Power Relative Power Power
Setting Power Reduction Linearity
at from at
current setting start current setting
+ =
start: -5.0dBm REF 0.0dB 0.00dB
-5.5dBm dB 0.5dB dB
-6.0dBm dB 1.0dB dB
-6.5dBm dB 1.5dB dB
-7.0dBm dB 2.0dB dB
-7.5dBm dB 2.5dB dB
-8.0dBm dB 3.0dB dB
-8.5dBm dB 3.5dB dB
-9.0dBm dB 4.0dB dB
-9.5dBm dB 4.5dB dB
-10.0dBm dB 5.0dB dB
Maximum Power Linearity at current setting dB
Minimum Power Linearity at current setting dB
Final Power Linearity
(= Max Power Linearity - Min Power Linearity) dBpp
Specication 0.2dBpp
Measurement Uncertainty 6 0.05dB
