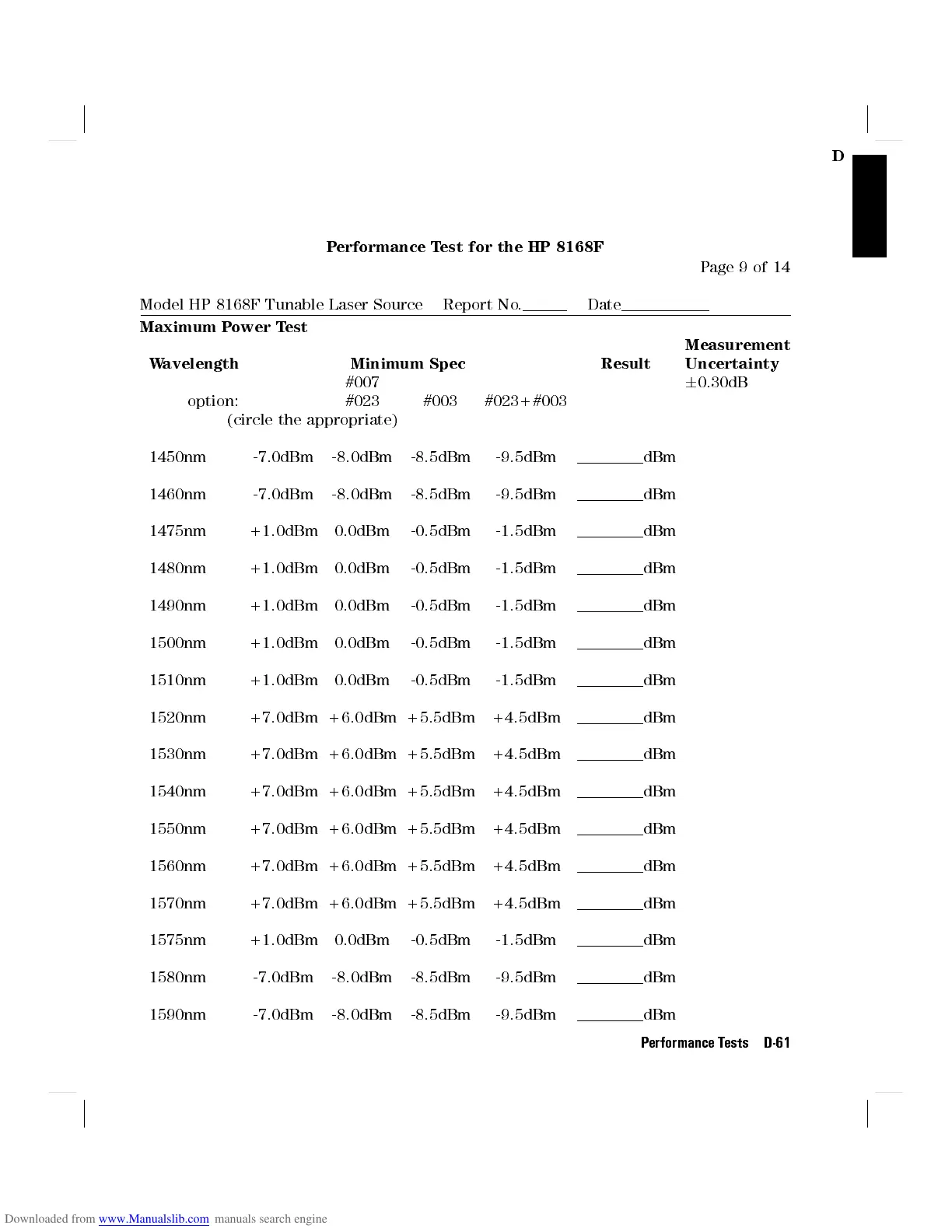

Performance Test for the HP 8168F
Page 9 of 14
Model HP 8168F Tunable Laser Source Report No. Date
Maximum Power Test
Measurement
Wavelength Minimum Spec Result Uncertainty
#007 6 0.30dB
option: #023 #003 #023+#003
(circle the appropriate)
1450nm -7.0dBm -8.0dBm -8.5dBm -9.5dBm dBm
1460nm -7.0dBm -8.0dBm -8.5dBm -9.5dBm dBm
1475nm +1.0dBm 0.0dBm -0.5dBm -1.5dBm dBm
1480nm +1.0dBm 0.0dBm -0.5dBm -1.5dBm dBm
1490nm +1.0dBm 0.0dBm -0.5dBm -1.5dBm dBm
1500nm +1.0dBm 0.0dBm -0.5dBm -1.5dBm dBm
1510nm +1.0dBm 0.0dBm -0.5dBm -1.5dBm dBm
1520nm +7.0dBm +6.0dBm +5.5dBm +4.5dBm dBm
1530nm +7.0dBm +6.0dBm +5.5dBm +4.5dBm dBm
1540nm +7.0dBm +6.0dBm +5.5dBm +4.5dBm dBm
1550nm +7.0dBm +6.0dBm +5.5dBm +4.5dBm dBm
1560nm +7.0dBm +6.0dBm +5.5dBm +4.5dBm dBm
1570nm +7.0dBm +6.0dBm +5.5dBm +4.5dBm dBm
1575nm +1.0dBm 0.0dBm -0.5dBm -1.5dBm dBm
1580nm -7.0dBm -8.0dBm -8.5dBm -9.5dBm dBm
1590nm -7.0dBm -8.0dBm -8.5dBm -9.5dBm dBm
Performance Tests D-61
