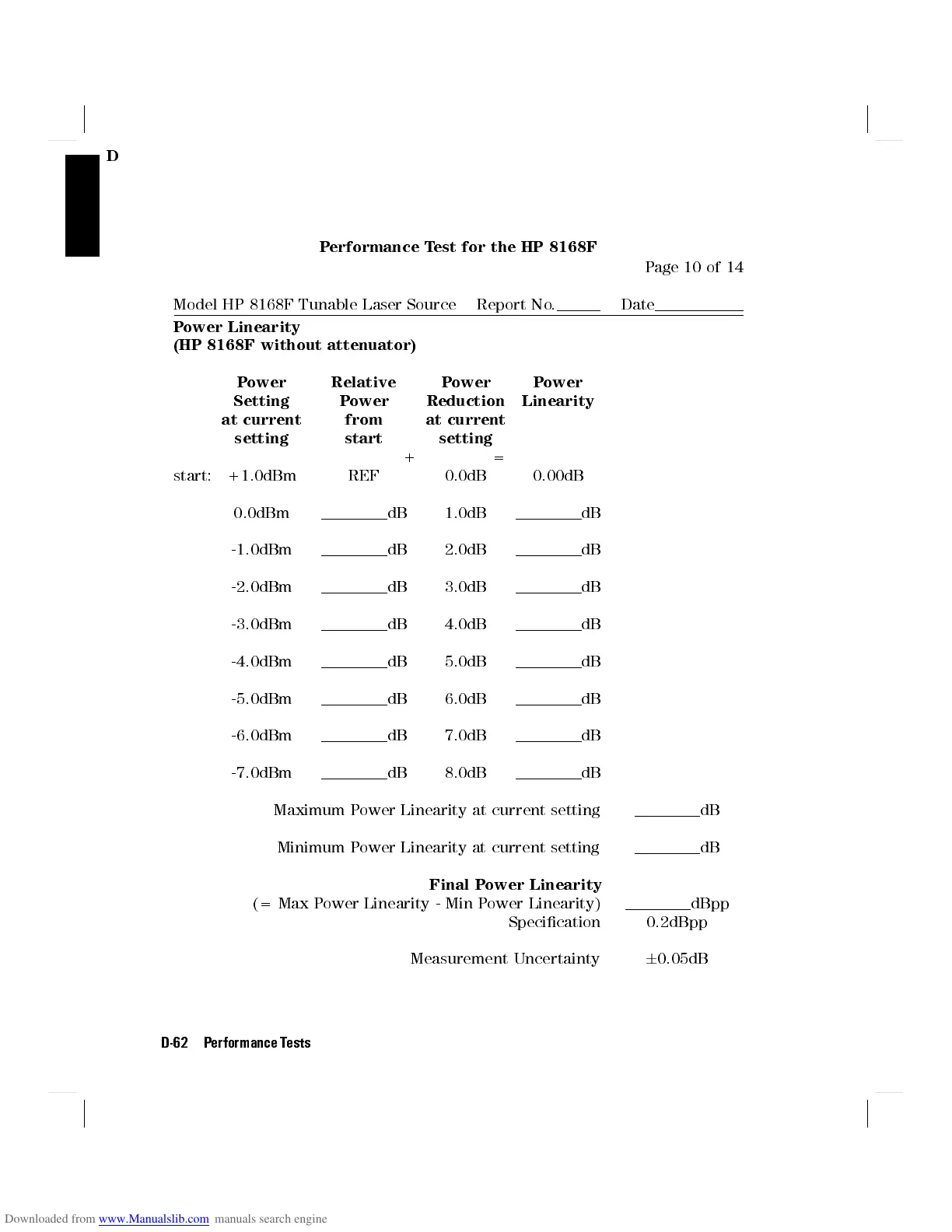

Performance Test for the HP 8168F
Page 10 of 14
Model HP 8168F Tunable Laser Source Report No. Date
Power Linearity
(HP 8168F without attenuator)
Power Relative Power Power
Setting Power Reduction Linearity
at current from at current
setting start setting
+ =
start: +1.0dBm REF 0.0dB 0.00dB
0.0dBm dB 1.0dB dB
-1.0dBm dB 2.0dB dB
-2.0dBm dB 3.0dB dB
-3.0dBm dB 4.0dB dB
-4.0dBm dB 5.0dB dB
-5.0dBm dB 6.0dB dB
-6.0dBm dB 7.0dB dB
-7.0dBm dB 8.0dB dB
Maximum Power Linearity at current setting dB
Minimum Power Linearity at current setting dB
Final Power Linearity
(= Max Power Linearity - Min Power Linearity) dBpp
Specication 0.2dBpp
Measurement Uncertainty 6 0.05dB
