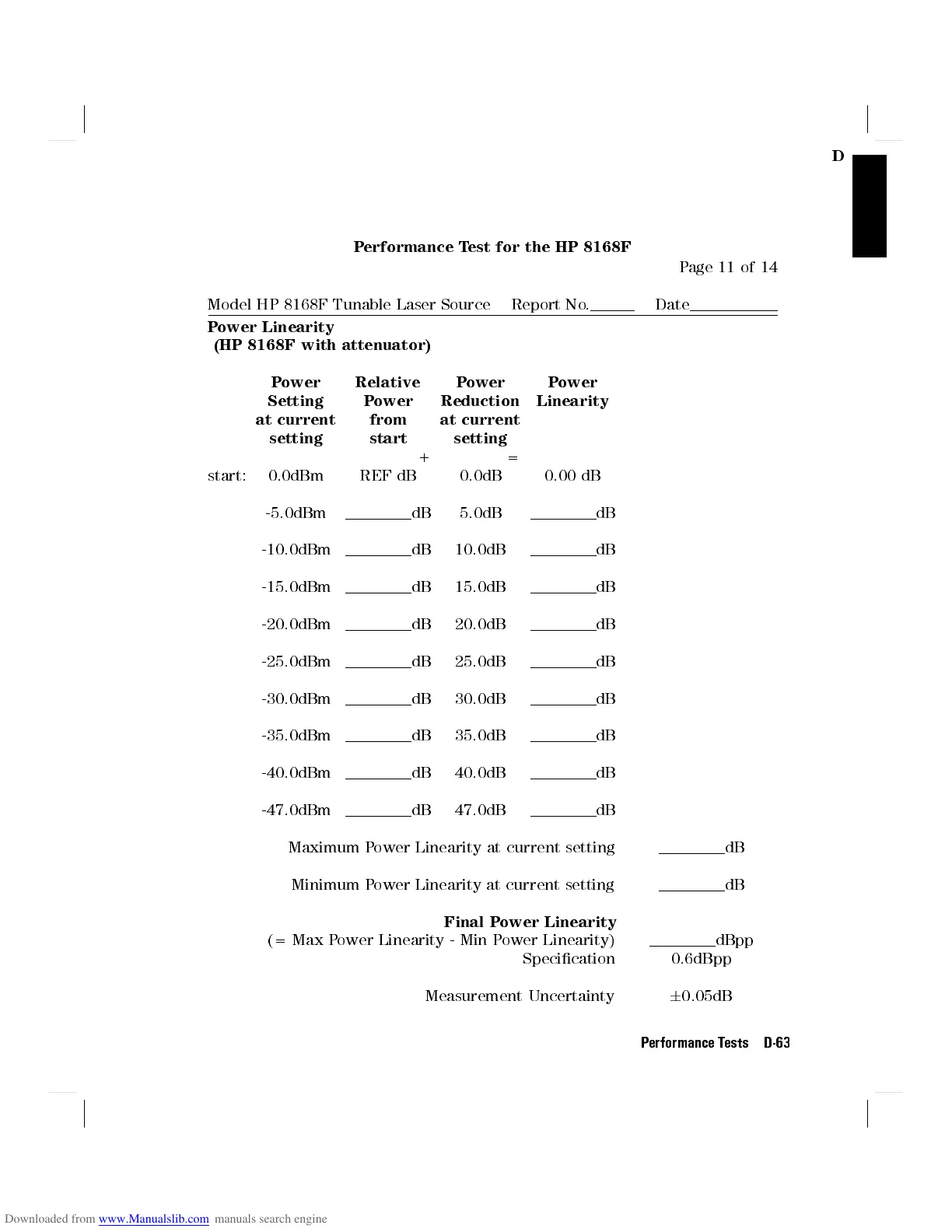

Performance Test for the HP 8168F
Page 11 of 14
Model HP 8168F Tunable Laser Source Report No. Date
Power Linearity
(HP 8168F with attenuator)
Power Relative Power Power
Setting Power Reduction Linearity
at current from at current
setting start setting
+ =
start: 0.0dBm REF dB 0.0dB 0.00 dB
-5.0dBm dB 5.0dB dB
-10.0dBm dB 10.0dB dB
-15.0dBm dB 15.0dB dB
-20.0dBm dB 20.0dB dB
-25.0dBm dB 25.0dB dB
-30.0dBm dB 30.0dB dB
-35.0dBm dB 35.0dB dB
-40.0dBm dB 40.0dB dB
-47.0dBm dB 47.0dB dB
Maximum Power Linearity at current setting dB
Minimum Power Linearity at current setting dB
Final Power Linearity
(= Max Power Linearity - Min Power Linearity) dBpp
Specication 0.6dBpp
Measurement Uncertainty 6 0.05dB
