Installation 49

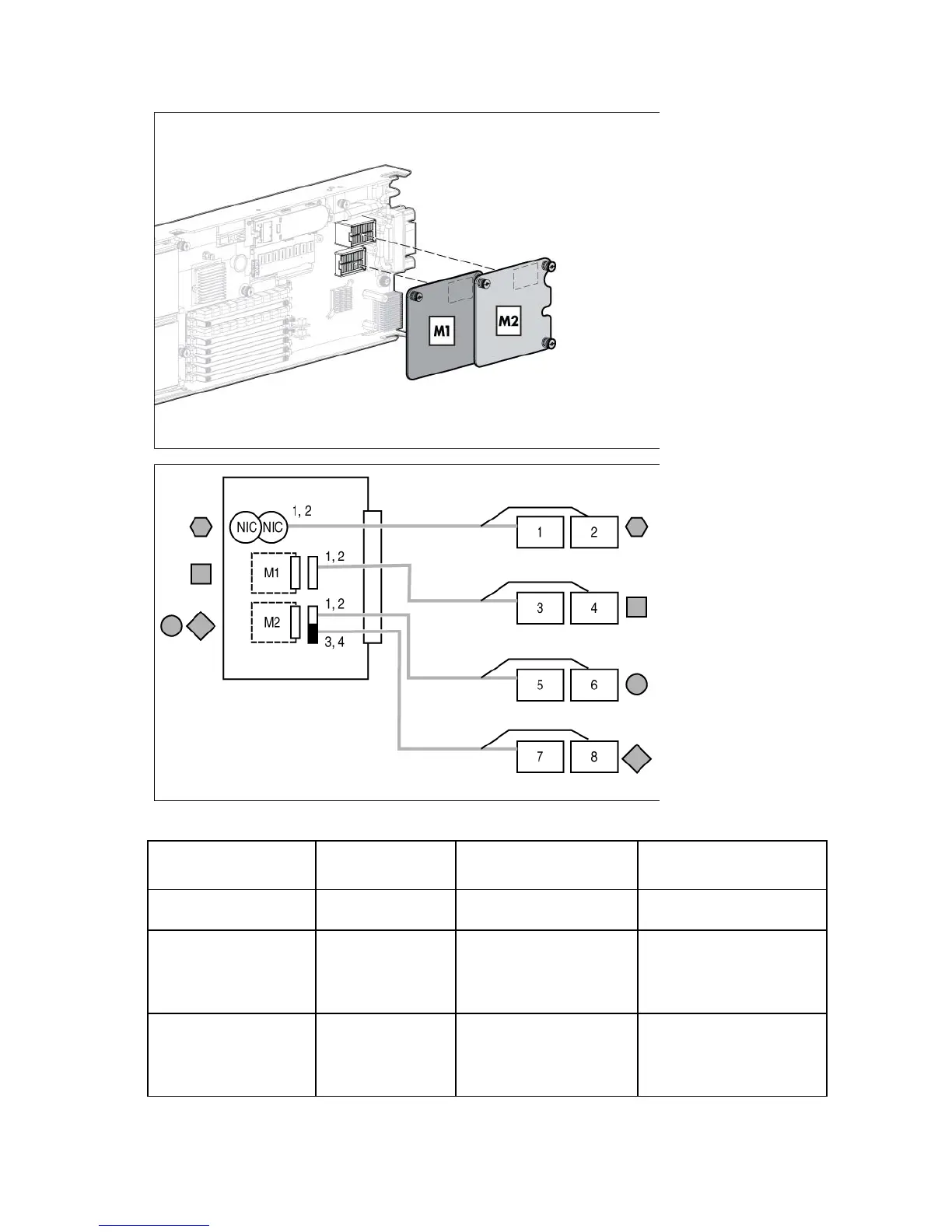

Mapping half-height blades
The following table lists the available configurations for half-height devices installed in device bay N (1–16).
Connection Port number Connects to interconnect
bay/port
Comments
Embedded NIC
NIC 1
NIC 2
1/Port N
2/Port N
One or two single-wide
Ethernet interconnect modules
Mezzanine slot 1—1x or
2x cards
1x/2x port 1
1x/2x port 2
3/Port N
4/Port N
One single-wide
interconnect module
Four port cards will only
connect the first two ports.
Mezzanine slot 1—4x
cards
4x port 1 3/Port N
One double-wide
interconnect module
Only port 1 of a two port
card will be connected.
