HP BladeSystem c7000 User Manual

Installation 50
Connection Port number Connects to interconnect
bay/port
Comments
Mezzanine slot 2—1x or
2x cards
1x/2x port 1
1x/2x port 2
1x/2x port 3
1x/2x port 4
5 / port N
6 / port N
7 / port N
8 / port N
One or two single-wide
interconnect modules
Mezzanine slot 2—4x
cards
4x port 1
4x port 2
5/Port N
7/Port N
One or two double-wide
interconnect modules
* Connectivity to interconnect bays 7 and 8 is only available with four-port mezzanine cards or port 2 of 4x card in
Mezzanine slot 2.

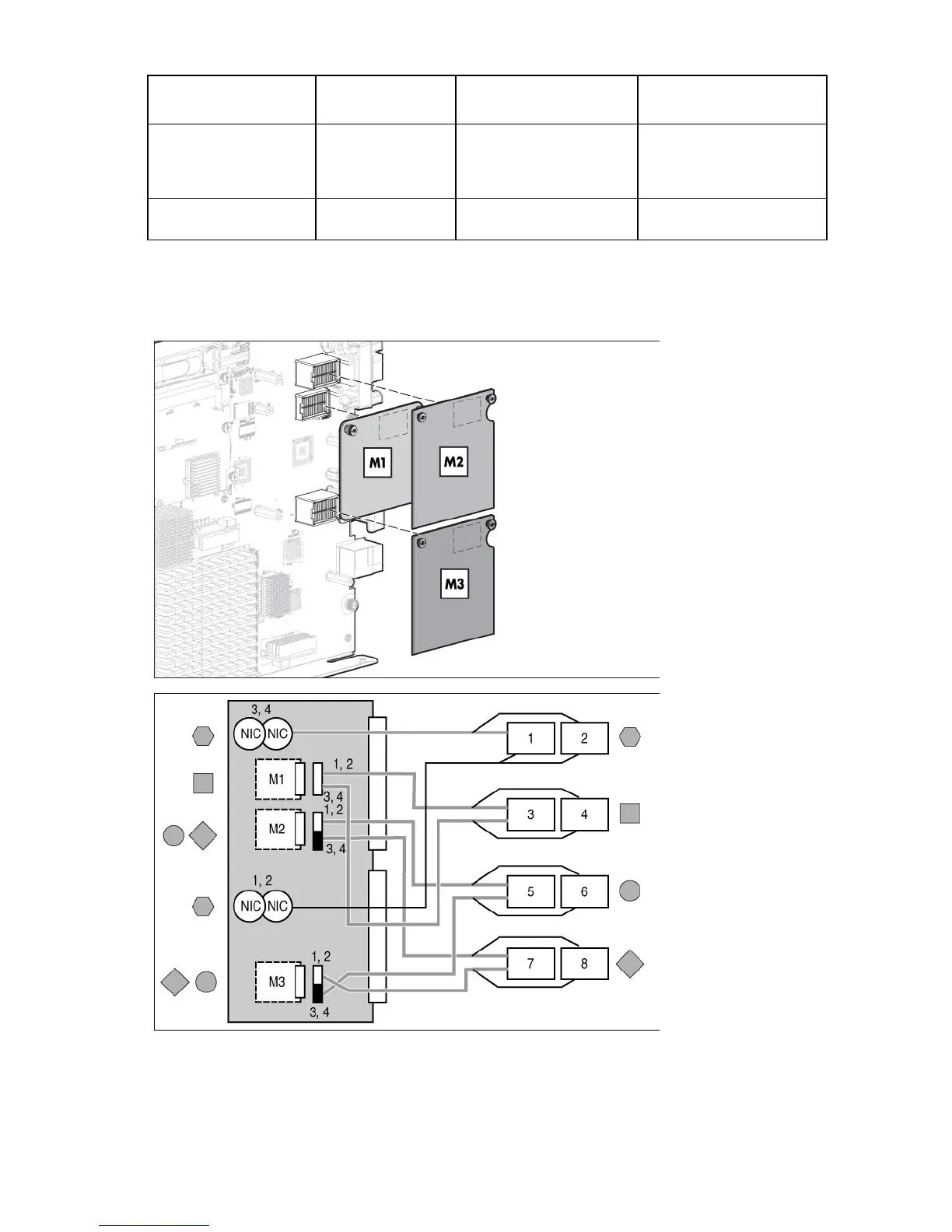

Mapping full-height blades
The following table lists the available configurations for full-height devices installed in device bay N (1–8).
