HP BladeSystem c7000 User Manual

Installation 52
Interconnect device mapping for double dense server blades
The following table lists the available configurations for double dense server blades installed in device bay
N (1-16).
Connection Port number Connects to interconnect
bay/port
Server A Embedded
NIC
NIC 1 (ENET:1)
NIC 2 (ENET:2)
1/Port N
3/Port N
Server A Mezzanine
Port 1
Port 2
5/Port N
6/Port N
Server B Embedded
NIC
NIC 1 (ENET:1)
NIC 2 (ENET:2)
2/Port N
4/Port N
Server B Mezzanine
Port 1
Port 2
7/Port N
8/Port N
Interconnect device mapping for AMC Telco I/O expansion blades
The following table lists the available configurations for AMC Telco I/O expansion blades installed in device
bay N (1-16).
Connection Port number Connects to interconnect
bay/port
AMC Embedded (1)
Port 1
Port 2
Port 3
Port 4
1/Port N
2/Port N
3/Port N
4/Port N
AMC Embedded (2)
Port 5
Port 6
Port 7
Port 8
5/Port N
6/Port N
7/Port N
8/Port N

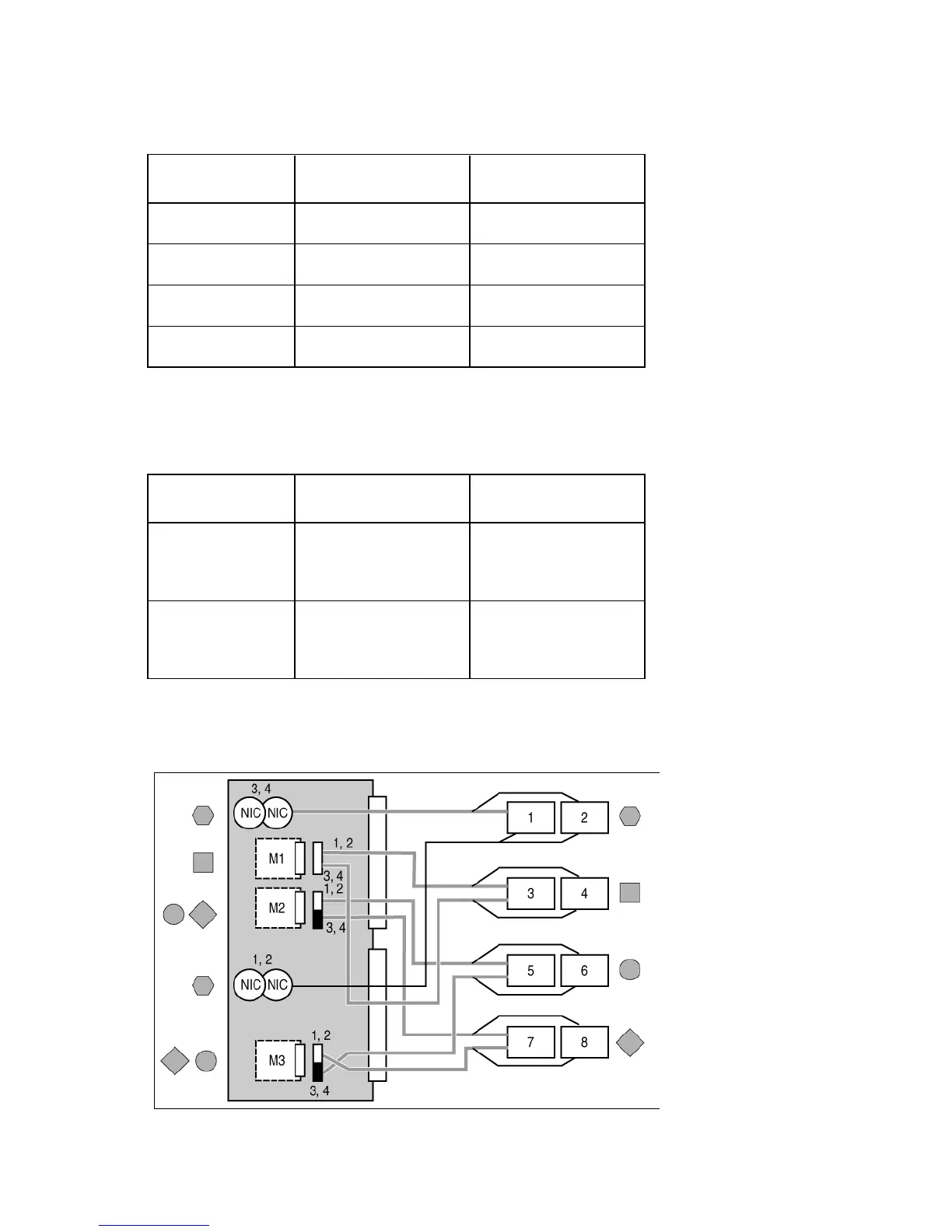

Mapping the BL680c G7 Blade
•
A side
