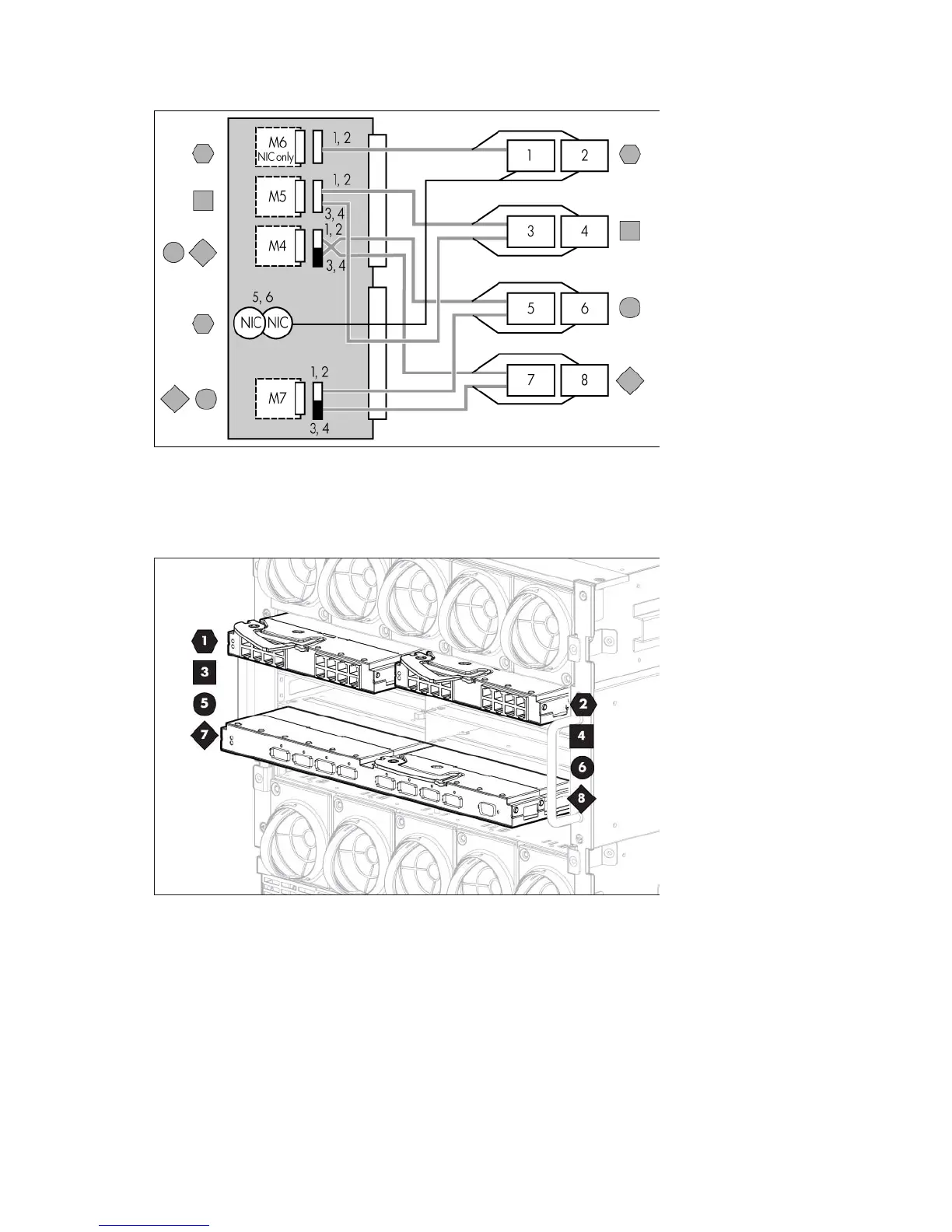

HP BladeSystem c7000 - Mapping the BL680 c G7 Blade; Interconnect bay identification; Bay-to-bay crosslinks

Installation 53
• B side
To support network connections for specific signals, install an interconnect module in the bay corresponding
to the embedded NIC or mezzanine signals.
Interconnect bay identification
Bay-to-bay crosslinks
Four trace SerDes signals between adjacent bays are provided in the enclosure midplane to permit
bay-to-bay communications. Interconnect modules can only connect horizontally.
