HP BladeSystem c7000 User Manual

HP BladeSystem Insight Display 72

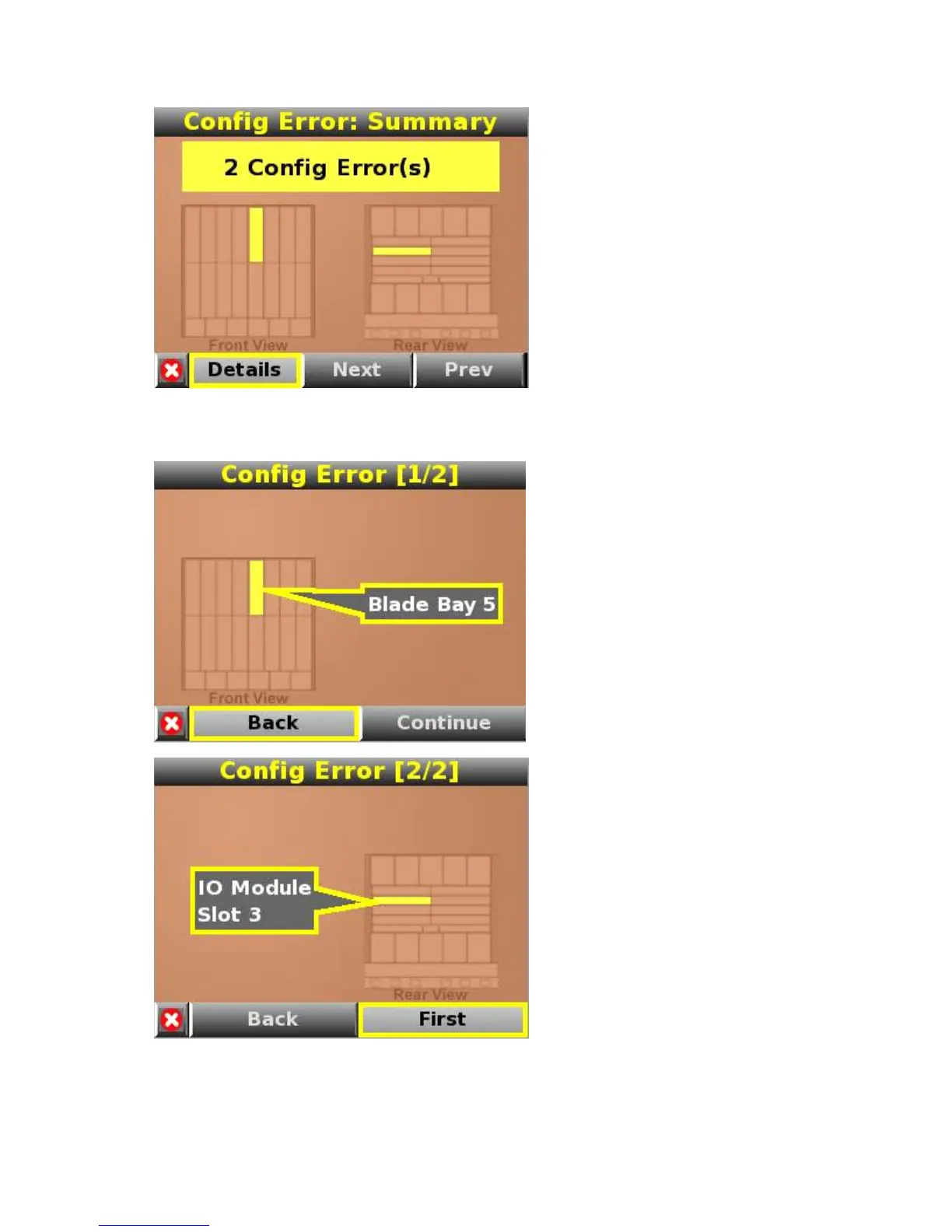

Select View Alert and press the OK button to display the errors.
Select Details to view the details of the error.
In the following example, the blade in bay 5 and the interconnect module in slot 3 have a configuration error.

HP BladeSystem c7000 Specifications

General

Form Factor	10U
Number of Bays	16
Redundant Power	Yes
Redundant Fans	Yes
Maximum Blade Servers	16 half-height or 8 full-height
Operating Temperature	10° to 35°C (50° to 95°F)
Power Supplies	Up to 6
Cooling Fans	10
Management	Onboard Administrator
Interconnect Modules	Up to 8
Networking Options	Ethernet, Fibre Channel, InfiniBand
Compatibility	HP ProLiant and Integrity server blades
Relative Humidity	10% to 90% (non-condensing)
