HP DL380 Generation 4 User Manual

Removal and replacement procedures 24
Diskette drive option
To remove the component:
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all bays
are populated with either a component or a blank.
1. Power down the server (on page 20).
2. Extend or remove the server from the rack ("Extend the server from the rack" on page 19, "Remove
the server from the rack" on page 20).
3. Remove the access panel ("Access panel" on page 22).

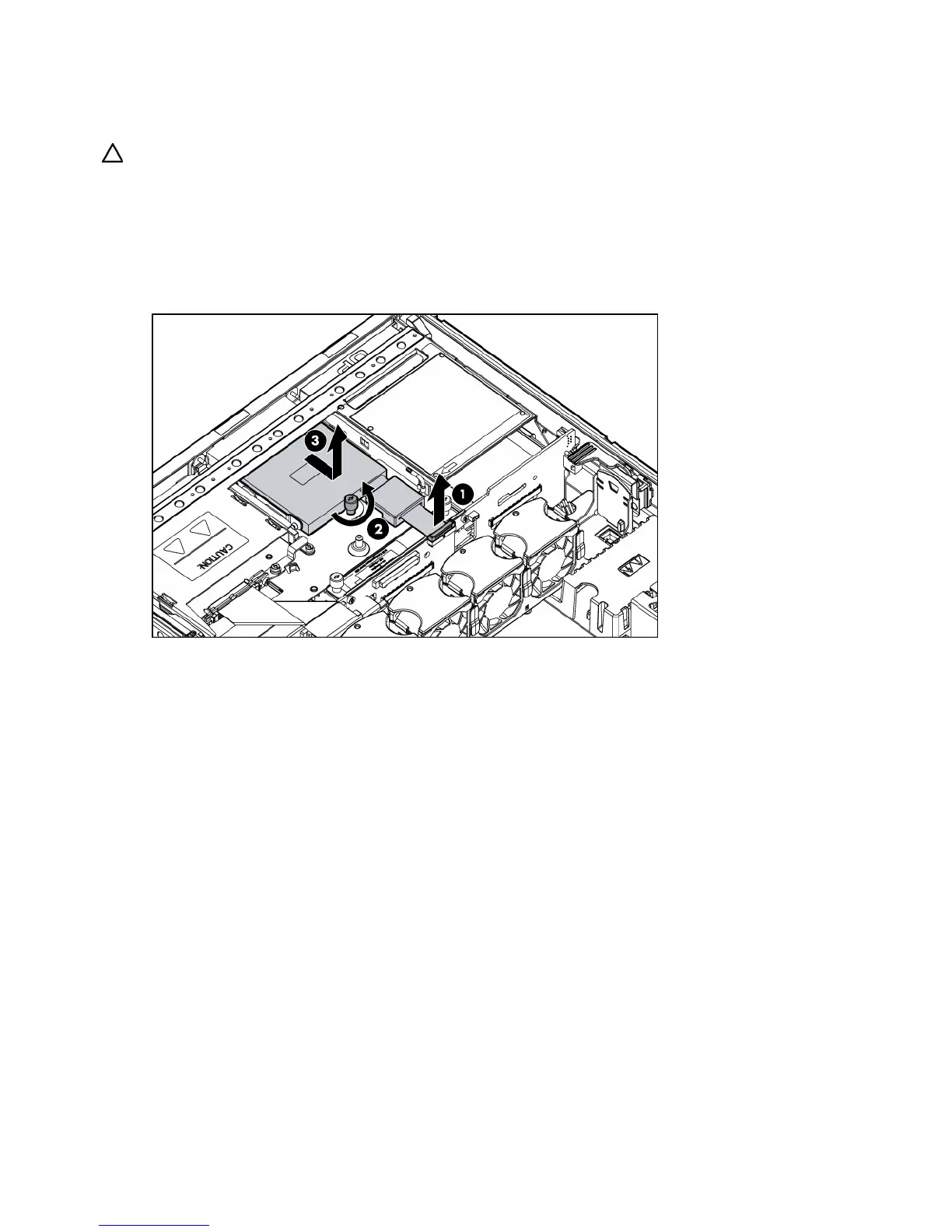

4. Remove the diskette drive.
To replace the component, reverse the removal procedure.
Front bezel
To remove the component:
1. Power down the server (on page 20).
2. Extend or remove the server from the rack ("Extend the server from the rack" on page 19, "Remove
the server from the rack" on page 20).

HP DL380 Generation 4 Specifications

General

Processor	Intel Xeon
Processor Socket	Socket 604
Maximum Processors	2
Chipset	Intel E7520
Memory Slots	8
Maximum Memory	32 GB
RAID	RAID 0, 1, 5
Form Factor	2U Rack
Memory Type	DDR2
Storage	SAS or SATA
Storage Controller	Smart Array 6i
Power Supply	Redundant Power Supply Optional
Operating System Support	Windows Server, Linux
Expansion Slots	6 total: 2 PCI-X, 2 PCI, 2 PCI-Express
