Removal and replacement procedures 52

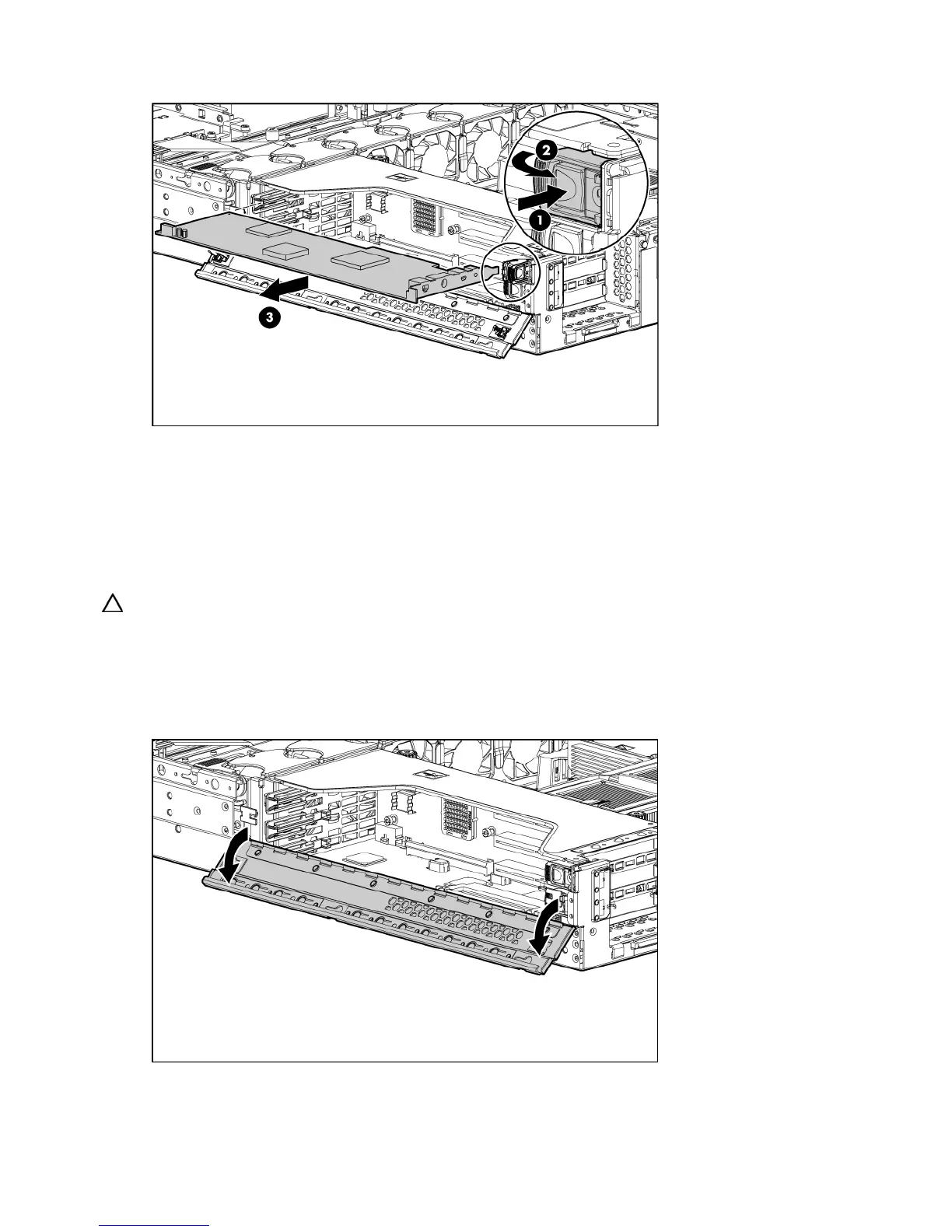

Remove the expansion board.

To replace the component, reverse the removal procedure.

PCI Hot Plug expansion slot cover

NOTE: Hot-plug functionality is supported only under Microsoft® Windows® 2000 and Windows® 2003. Hot-

plug drivers are not required.

To remove the component:

CAUTION: If the operating system installed on the server does not support PCI Hot Plug functionality,

power down the server (on page 20) before removing expansion boards.

1. Extend or remove the server from the rack ("Extend the server from the rack" on page 19, "Remove

the server from the rack" on page 20).

2. Remove the access panel ("Access panel" on page 22).

3. Open the PCI riser cage door.
