HP DL380 Generation 4 User Manual

Component identification 77

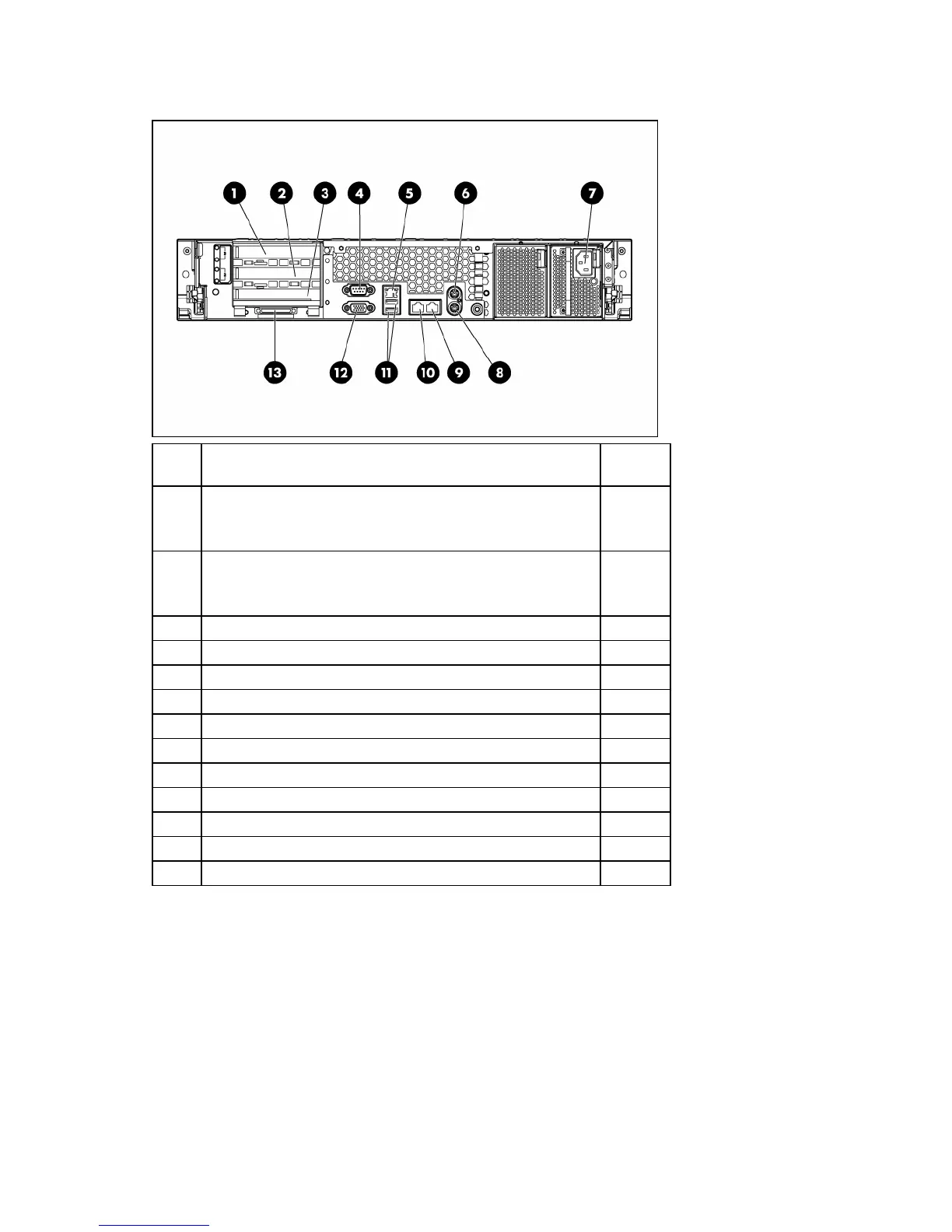

Rear panel components
Item Description Color
1
• Hot-plug or non-hot-plug PCI-X expansion slot 3, 64
bit/100 MHz, bus B
• PCI Express x4 slot 2, bus B*
N/A
2
• Hot-plug or non-hot-plug PCI-X expansion slot 2, 64
bit/100 MHz, bus B
• PCI Express x4 slot 1, bus A*
N/A
3 Non-hot-plug PCI-X expansion slot 1, 64 bit/133 MHz, bus A N/A
4 Serial connector Teal
5 iLO connector N/A
6 Mouse connector Green
7 Power cord connector N/A
8 Keyboard connector Purple
9 NIC 1 connector N/A
10 NIC 2 connector N/A
11 USB connectors Black
12 Video connector Blue
13 VHDCI SCSI connector (port 1)** N/A
* x8 PCI Express cards are supported on the SCSI models and will run at x4 speeds. SAS models do not support PCI
Express cards.
**This feature applies only to SCSI models.

HP DL380 Generation 4 Specifications

General

Processor	Intel Xeon
Processor Socket	Socket 604
Maximum Processors	2
Chipset	Intel E7520
Memory Slots	8
Maximum Memory	32 GB
RAID	RAID 0, 1, 5
Form Factor	2U Rack
Memory Type	DDR2
Storage	SAS or SATA
Storage Controller	Smart Array 6i
Power Supply	Redundant Power Supply Optional
Operating System Support	Windows Server, Linux
Expansion Slots	6 total: 2 PCI-X, 2 PCI, 2 PCI-Express
