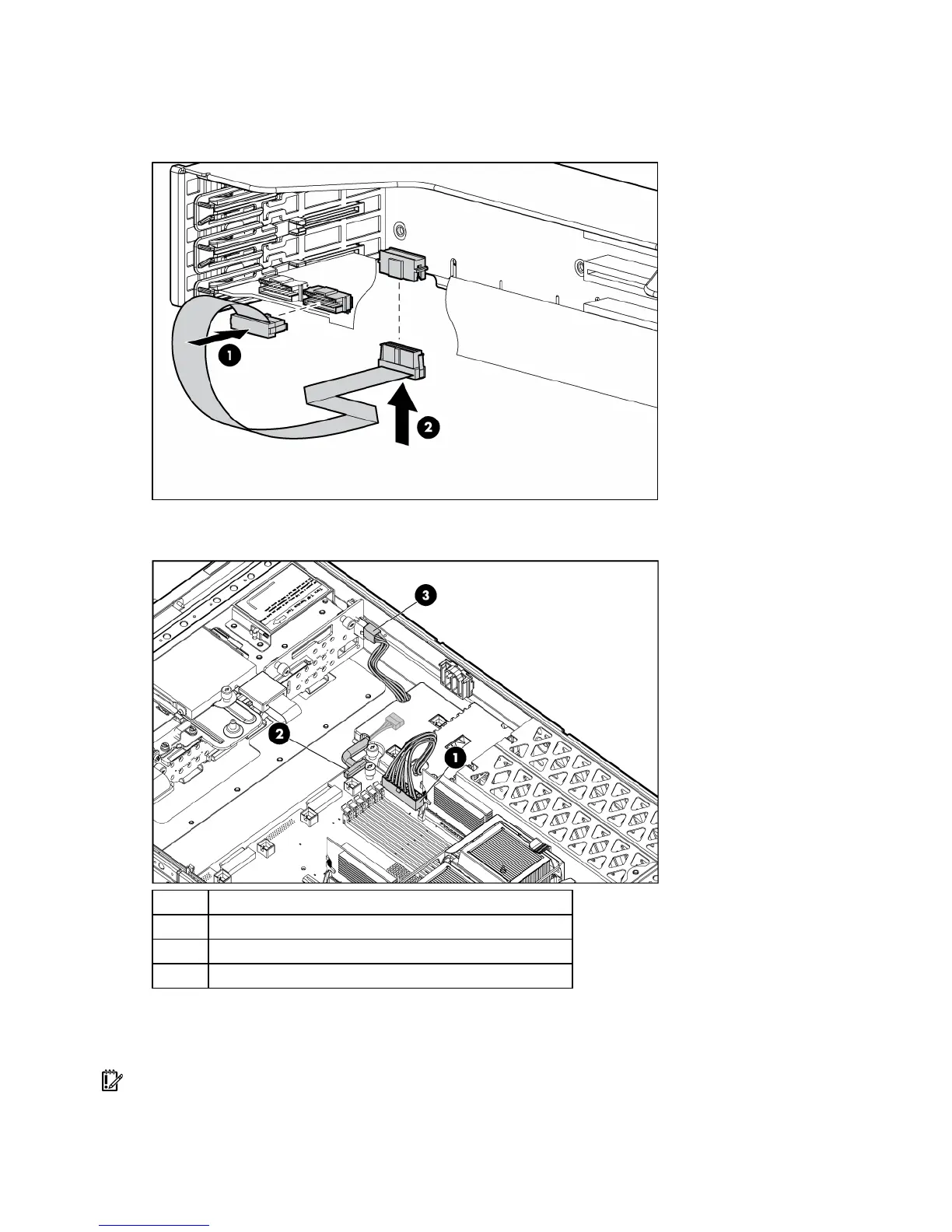

Cabling 58
RILOE II cabling
The 30-pin Remote Insight cable ships with the RILOE II cable kit. For more information, refer to the
Remote Insight Lights-Out Edition II User Guide on the Documentation CD.
Internal power cabling
Item Description
1 System power cable
2 Power supply signal cable
3 SAS power cable
SCSI model cabling
IMPORTANT: If a simplex or duplex cabling configuration is not cabled correctly, the SCSI configuration
error LED will illuminate. Refer to "SCSI Backplane LEDs (on page 85)" to locate the LED.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HP DL380 Generation 4 and is the answer not in the manual?

HP DL380 Generation 4 Specifications

General IconGeneral
ProcessorIntel Xeon
Processor SocketSocket 604
Maximum Processors2
ChipsetIntel E7520
Memory Slots8
Maximum Memory32 GB
RAIDRAID 0, 1, 5
Form Factor2U Rack
Memory TypeDDR2
StorageSAS or SATA
Storage ControllerSmart Array 6i
Power SupplyRedundant Power Supply Optional
Operating System SupportWindows Server, Linux
Expansion Slots6 total: 2 PCI-X, 2 PCI, 2 PCI-Express
