Removal and replacement procedures 25

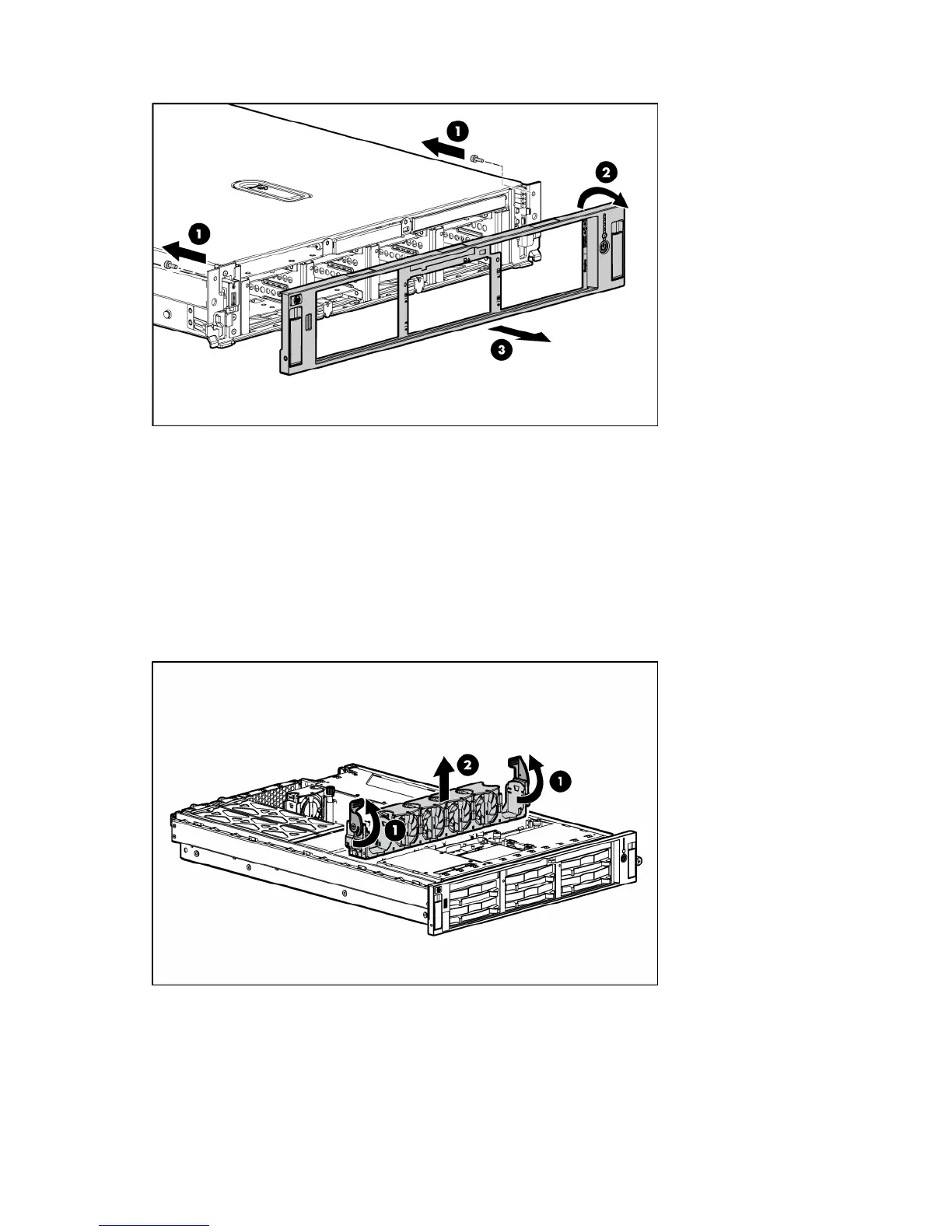

Remove the two screws and detach the front bezel.

To replace the component, reverse the removal procedure.

Front fan bracket

To remove the component:

1. Power down the server (on page 20).

2. Extend or remove the server from the rack ("Extend the server from the rack" on page 19, "Remove

the server from the rack" on page 20).

3. Remove the access panel ("Access panel" on page 22).

4. Remove the front fan bracket.

5. Remove all hot-plug fans from the front fan bracket ("Hot-plug fan" on page 49).

To replace the front fan bracket, reverse the removal steps and press down on the top of each fan to be

sure it is seated properly.
