Cabling 60
NOTE: This specific cabling configuration does not support external VHDCI.
NOTE: Optional SCSI terminator board and optional long SCSI cables are available in the SCSI
Configuration Option Kit.
NOTE: The short SCSI cables are identical.

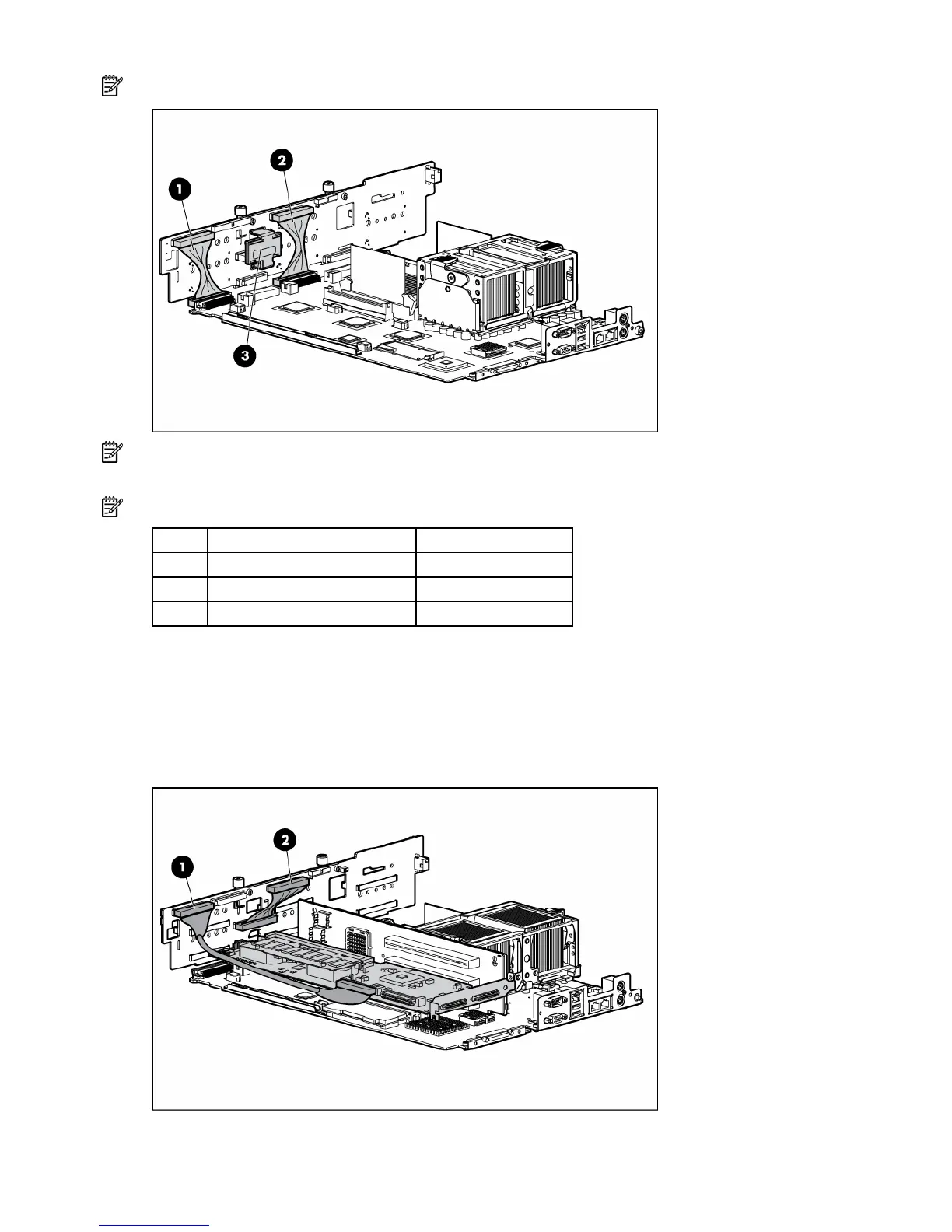

Item Component description SCSI IDs managed
1 Short SCSI cable 0, 1
2 Short SCSI cable 2, 3, 4, 5
3 Optional terminator board N/A
Refer to "Installing the SCSI terminator board (on page 63)" for SCSI terminator board installation
procedures.
PCI simplex SCSI cabling
In the PCI simplex cabling configuration, an optional PCI array controller controls up to six hard drives
through one SCSI bus.
