Component identification 81
Item Description
1 DIMM slot 1A
2 DIMM slot 2A
3 DIMM slot 3B
4 DIMM slot 4B
5 DIMM slot 5C
6 DIMM slot 6C

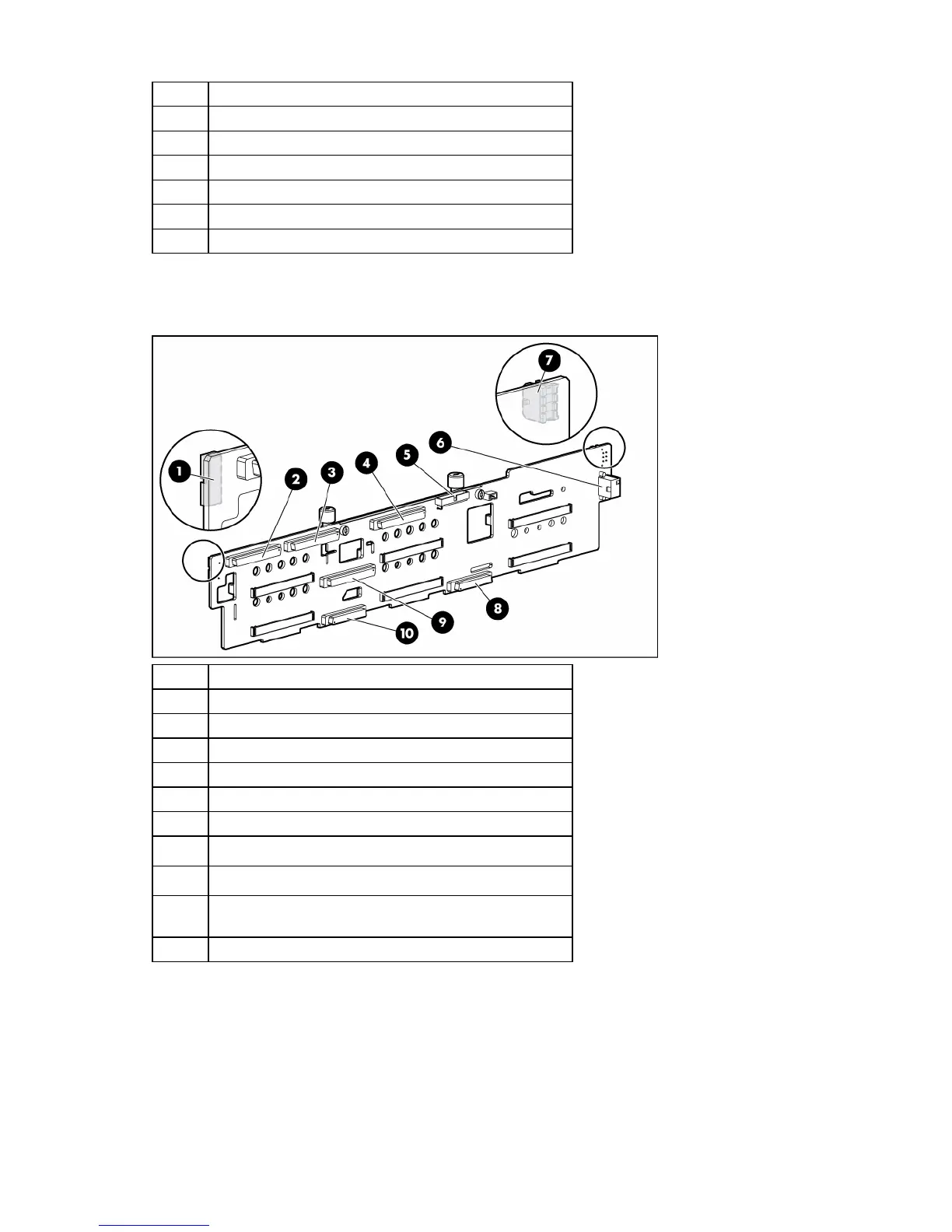

SCSI backplane components
Item Description
1 Power button/LED connector
2 SCSI connector (port 2)
3 DVD/CD-ROM drive connector
4 SCSI connector (port 1)
5 Diskette drive connector
6 Power connector
7 USB connector
8 Diskette drive system connector
9
SCSI connector (used with a jumper cable in simplex
mode or terminator board in duplex mode)
10 DVD/CD-ROM drive system connector
