HP DL380 Generation 4 User Manual

Removal and replacement procedures 36
5.

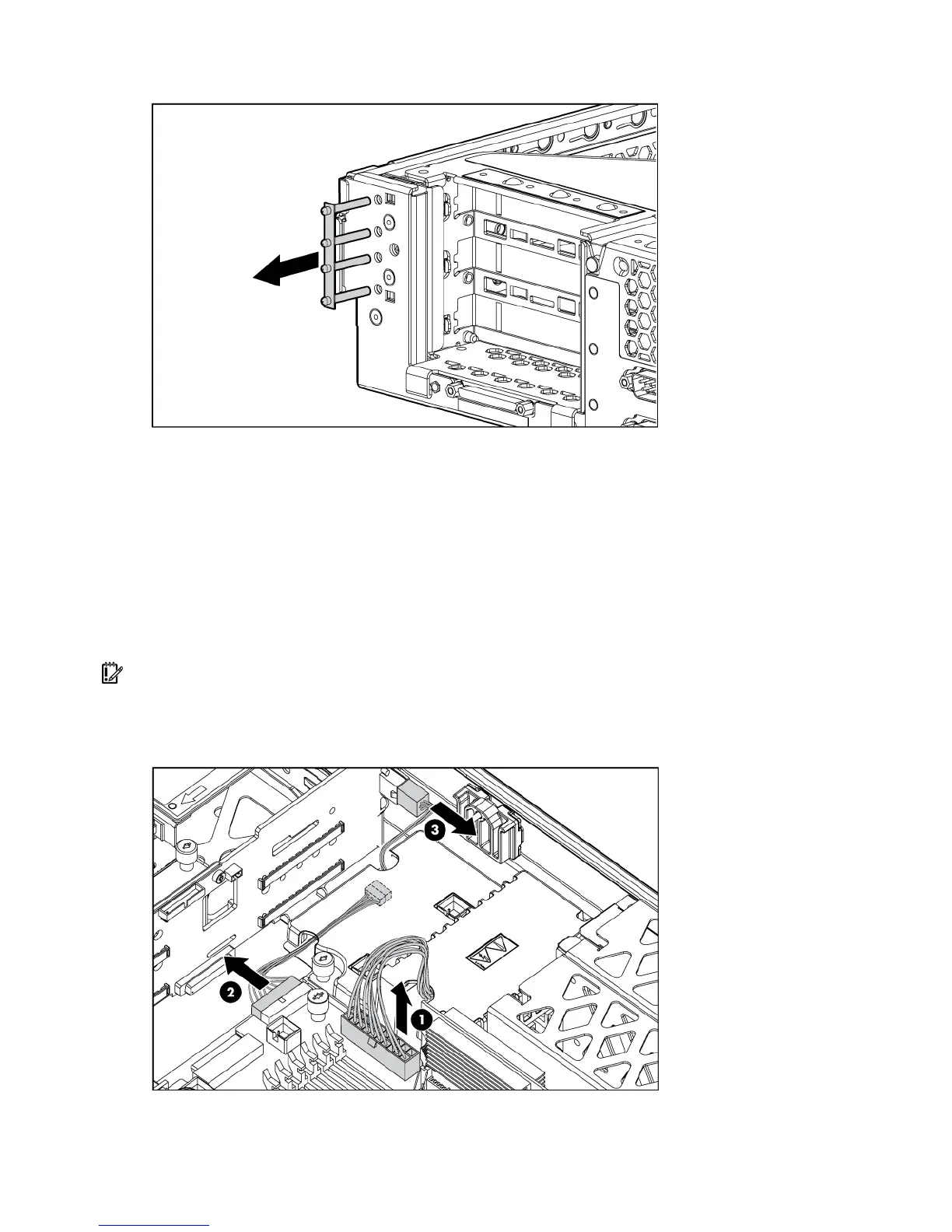

Slide the lightpipe out of the chassis.
To replace the component, reverse the removal procedure.
Power converter module
To remove the component:
1. Power down the server (on page 20).
2. Extend or remove the server from the rack ("Extend the server from the rack" on page 19, "Remove
the server from the rack" on page 20).
3. Remove the access panel ("Access panel" on page 22).
4. Remove the front fan bracket ("Front fan bracket" on page 25).
IMPORTANT: For this procedure, you do not need to remove the hot-plug fans from the front fan bracket.
When reinstalling the front fan bracket, press the top of each fan to be sure it seats securely.
5. Remove all hot-plug power supplies ("Hot-plug power supply" on page 47).
6. Disconnect all power cables.
7. Remove the power converter module.

HP DL380 Generation 4 Specifications

General

Processor	Intel Xeon
Processor Socket	Socket 604
Maximum Processors	2
Chipset	Intel E7520
Memory Slots	8
Maximum Memory	32 GB
RAID	RAID 0, 1, 5
Form Factor	2U Rack
Memory Type	DDR2
Storage	SAS or SATA
Storage Controller	Smart Array 6i
Power Supply	Redundant Power Supply Optional
Operating System Support	Windows Server, Linux
Expansion Slots	6 total: 2 PCI-X, 2 PCI, 2 PCI-Express
