Cabling 59
NOTE: The server ships with two identical short SCSI cables. Two optional long SCSI cables may be
obtained for PCI Array Controllers. One optional terminator board may be obtained to support duplex SCSI
configurations.

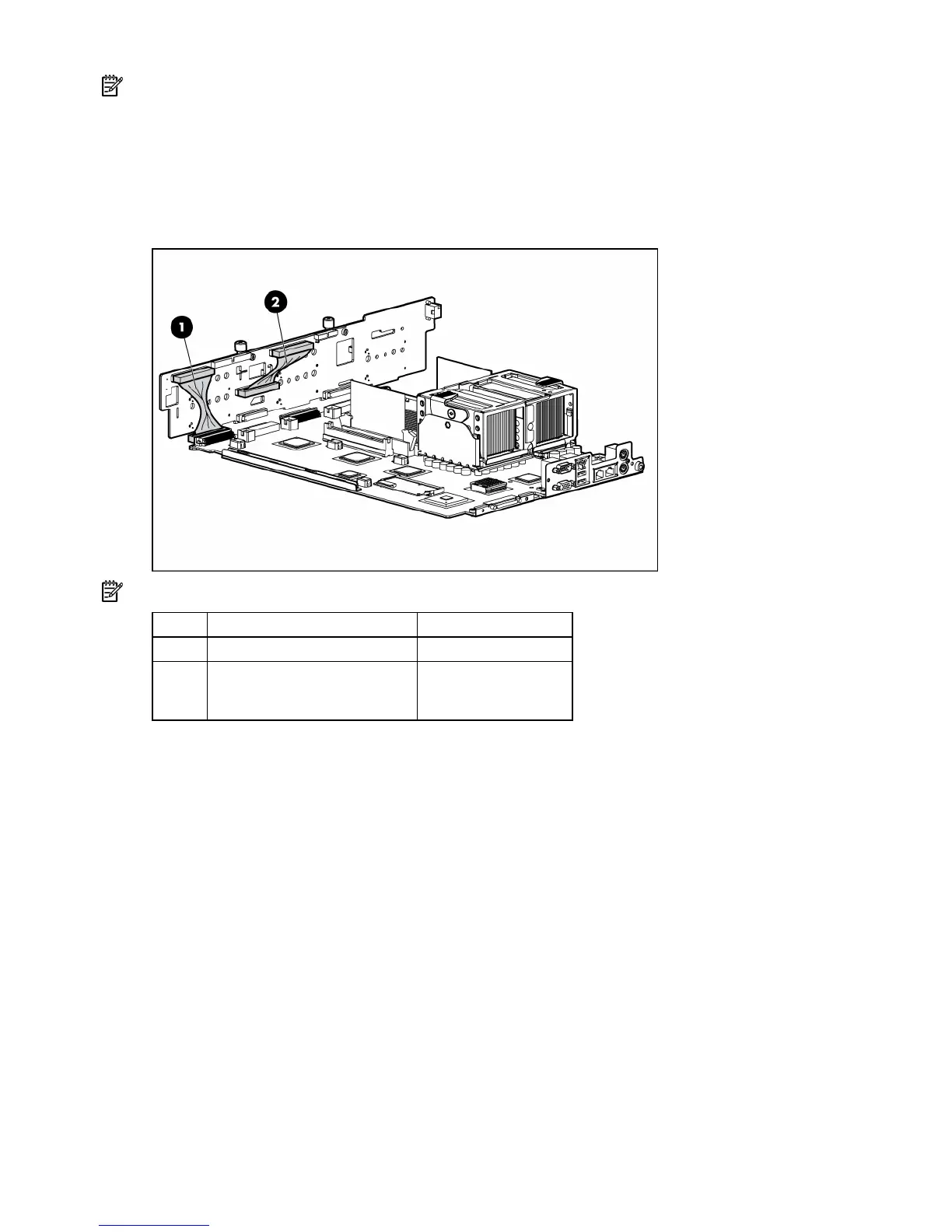

Embedded simplex SCSI cabling
In the embedded simplex cabling configuration, the embedded Smart Array 6i Controller controls up to
six hard drives through one SCSI bus. The server ships standard with this configuration.
NOTE: The short SCSI cables are identical.
Item Component description SCSI IDs managed
1 Short SCSI cable 0, 1, 2, 3, 4, 5
2
Short SCSI cable used to
jumper the two SCSI buses
together
N/A
Embedded duplex SCSI cabling
In the embedded duplex cabling configuration, the embedded Smart Array 6i Controller controls up to six
hard drives through two SCSI buses: one bus with up to two drives and the other bus with up to four
drives.
