HP DL380 Generation 4 User Manual

Cabling 68
External storage cabling

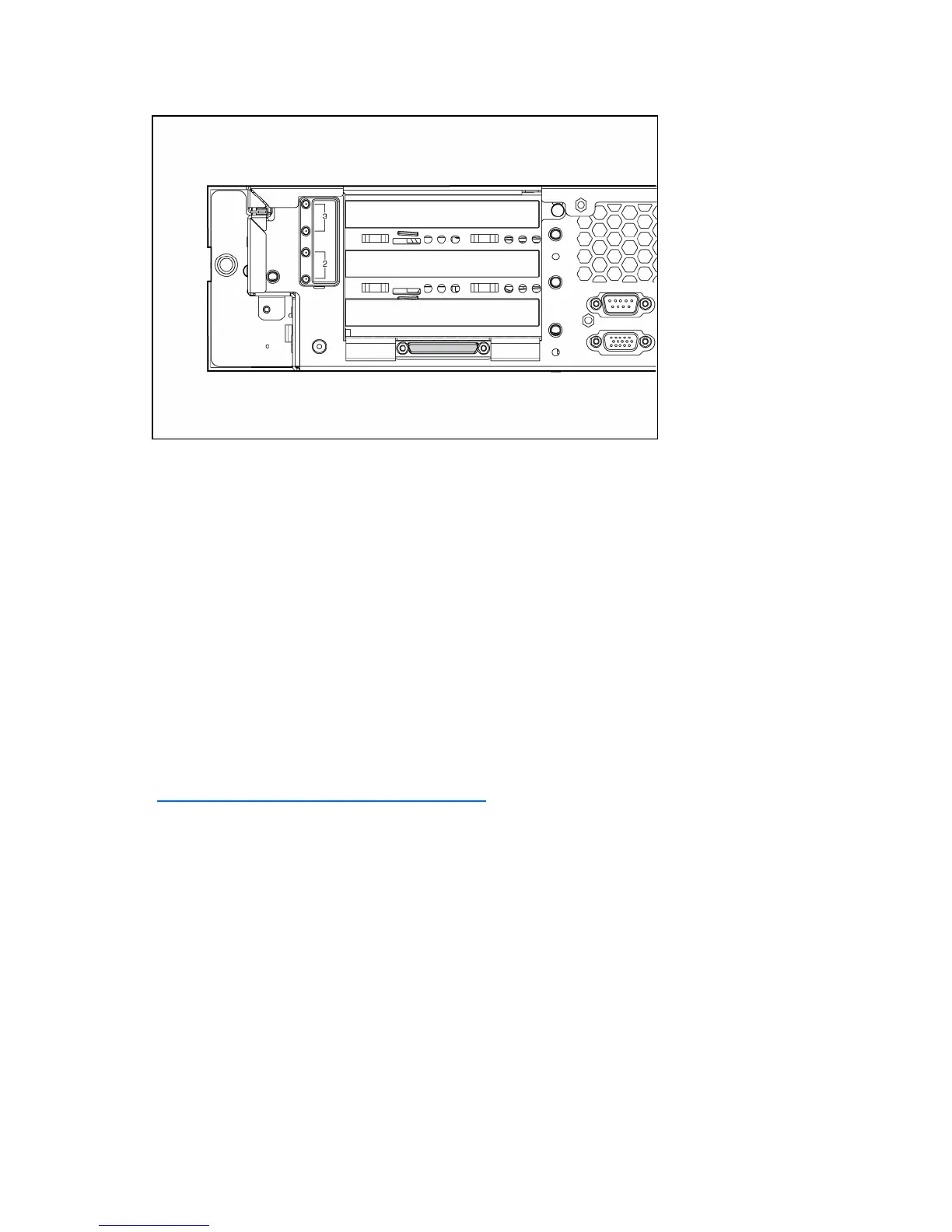

The external VHDCI SCSI connector (port 1) can only be used in the following SCSI configurations:
• Embedded simplex
• PCI simplex
• PCI duplex
• Mixed duplex (one of two configuration options)
For more information, refer to "Mixed duplex SCSI cabling ("PCI duplex SCSI cabling" on page
61)".
After cabling external storage options, use the following software utilities:
• RBSU, to configure new hardware in the system
For more information, refer to "HP ROM-Based Setup Utility (on page 72)" or the ROM-Based Setup
Utility User Guide on the Documentation CD.
• ORCA, to configure and manage drive arrays
For more information, refer to the Smart Array 6i Controller User Guide on the Documentation CD.
For more information on external cabling, refer to the HP website
(http://www.hp.com/products/servers/platforms
).

HP DL380 Generation 4 Specifications

General

Processor	Intel Xeon
Processor Socket	Socket 604
Maximum Processors	2
Chipset	Intel E7520
Memory Slots	8
Maximum Memory	32 GB
RAID	RAID 0, 1, 5
Form Factor	2U Rack
Memory Type	DDR2
Storage	SAS or SATA
Storage Controller	Smart Array 6i
Power Supply	Redundant Power Supply Optional
Operating System Support	Windows Server, Linux
Expansion Slots	6 total: 2 PCI-X, 2 PCI, 2 PCI-Express
