HP DL380 Generation 4 User Manual

Cabling 55

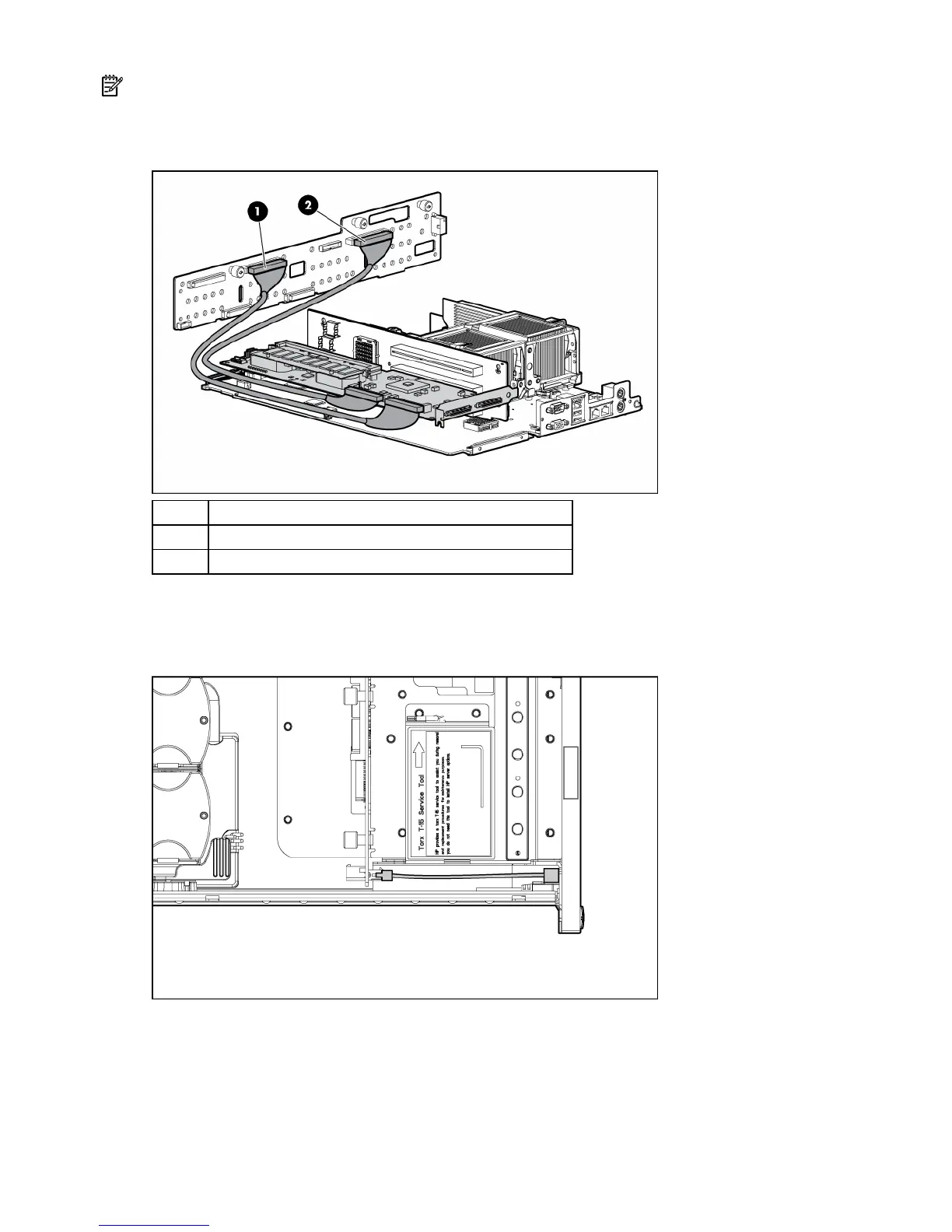

NOTE: If storage devices are connected to both the internal (1I) and external (1E) SAS connectors, the SAS
controller recognizes only the devices connected to the internal connector. To attach devices to the external
connector, disconnect the internal connector. Refer to the documentation that documentation that ships with
the controller.
Item Description
1 SAS connector 1
2 SAS connector 2
USB cabling
The USB cable connects the front panel USB connector to the SAS backplane.

HP DL380 Generation 4 Specifications

General

Processor	Intel Xeon
Processor Socket	Socket 604
Maximum Processors	2
Chipset	Intel E7520
Memory Slots	8
Maximum Memory	32 GB
RAID	RAID 0, 1, 5
Form Factor	2U Rack
Memory Type	DDR2
Storage	SAS or SATA
Storage Controller	Smart Array 6i
Power Supply	Redundant Power Supply Optional
Operating System Support	Windows Server, Linux
Expansion Slots	6 total: 2 PCI-X, 2 PCI, 2 PCI-Express
