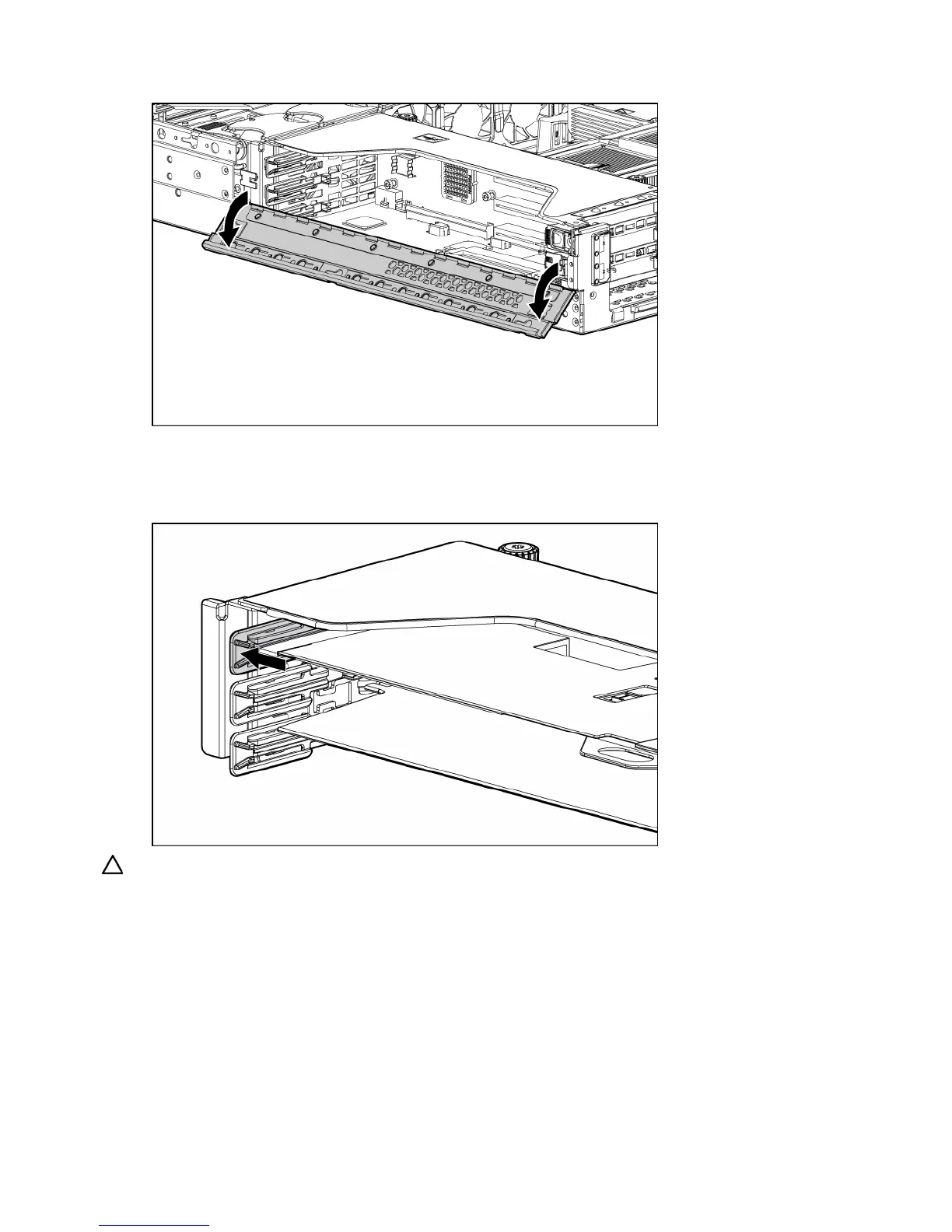

Removal and replacement procedures 51
3.
Open the PCI riser cage door.
4. Press the PCI Hot Plug button ("Internal PCI Hot Plug LEDs and button" on page 90) to remove power
from the slot. When the green power LED on the slot stops flashing, power has been removed from
the slot.
5. Unlock the PCI retaining clip.
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all PCI slots
have either an expansion slot cover or an expansion board installed.
