20 Library overview

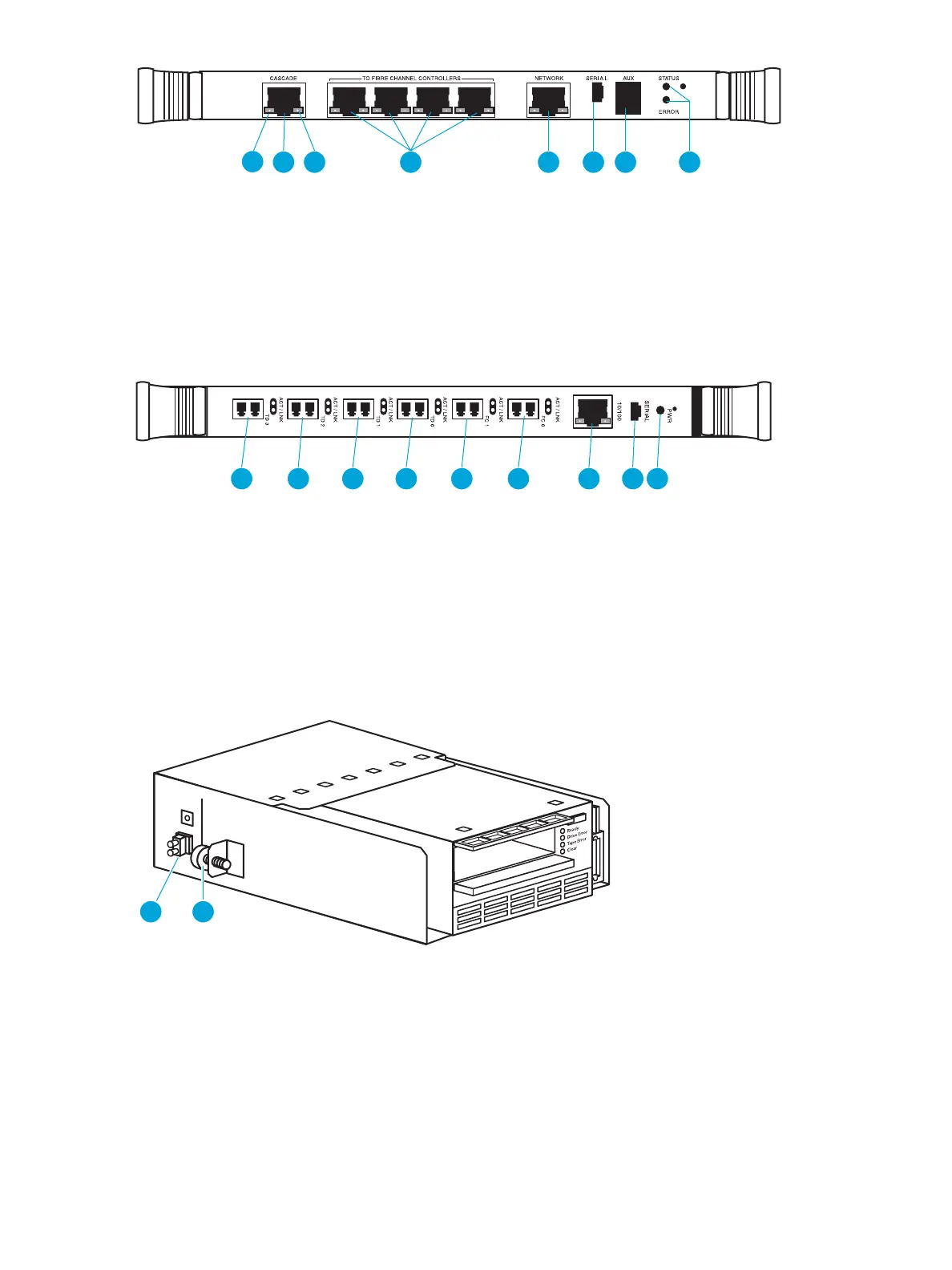

Figure 8 HP StorageWorks Interface Manager card
Figure 9 HP StorageWorks e2400-FC 2G interface controller
Figure 10 Ultrium tape drive
1 Cascade Ethernet port (connection to library
robotics controller)
2 Private Ethernet ports to e2400-FC 2G
interface controllers
3 Network Ethernet port (to LAN)
4 Serial port
5 Auxiliary RJ-11 serial
connector (not used)
6 Board status LEDs
7 Green link speed LED
8 Green light activity LED
1 Tape drive FC port 3
2 Tape drive FC port 2
3 Tape drive FC port 1
4 Tape drive FC port 0
5 FC port 1 (connection to host or switch)
6 FC port 0 (connection to host or switch)
7 Ethernet port (connection to Interface
Manager card)
8 Serial port
9 Power indicator
1 Fibre Channel connector 2 Mounting bracket with captive screw
10421
1 2
3
4
5 6
7
8
10422
1 2 3 4
5
6
7
8
9
10415
1 2
