HP E Series User Manual

28 Library overview

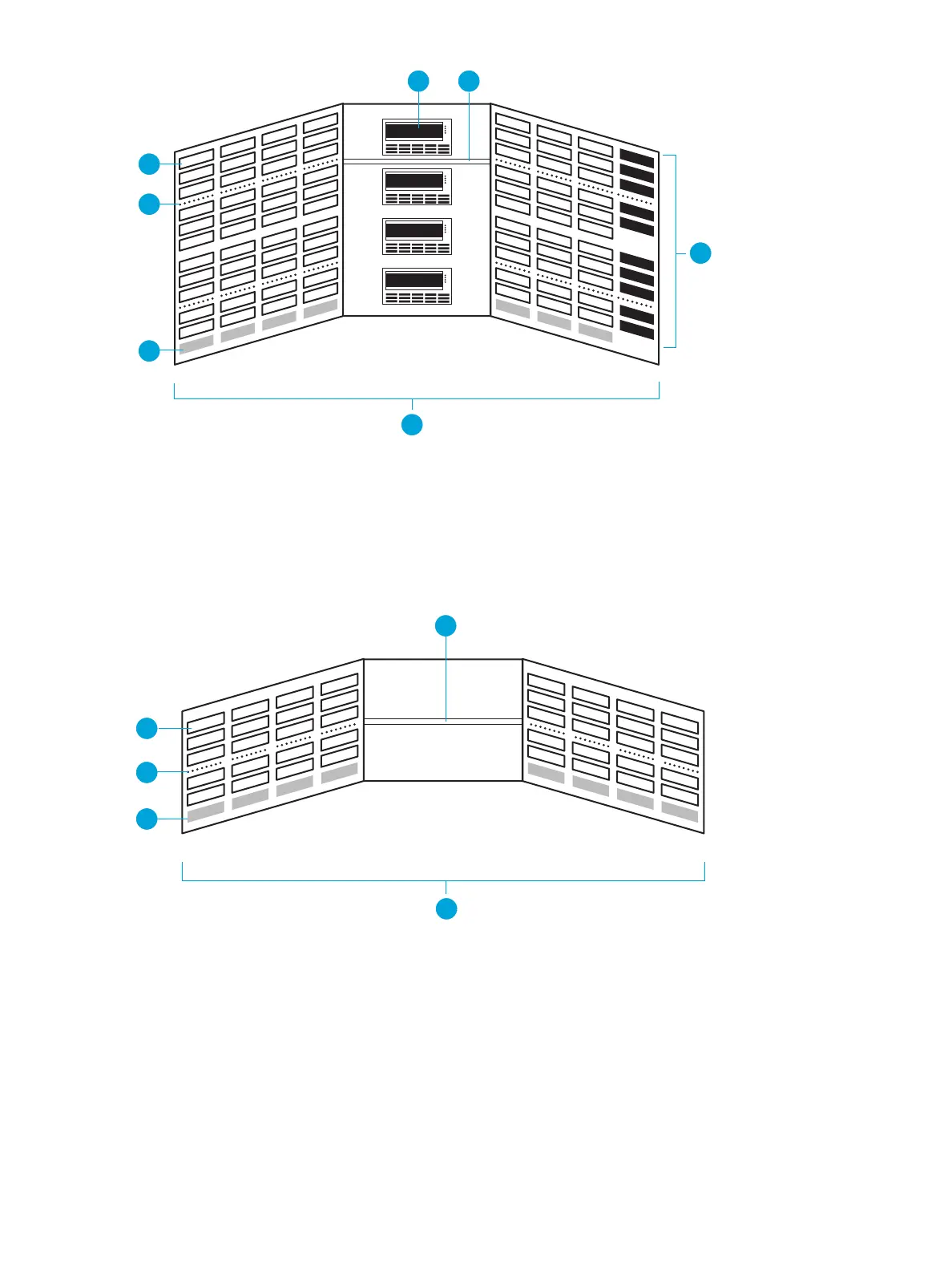

Figure 15 Drive expansion module slot mapping
Figure 16 Card cage expansion module slot mapping
1 Slots available for data cartridges
2 Array targets
3 Slots unavailable for use when module is last
in library and has floor installed
4 Tape drives
5 Column numbering
6 Expansion identification label
7 Load port
1 Slots available for data cartridges
2 Array targets
3 Slots unavailable for use when module is last in
library and has floor installed
4 Expansion identification label
5 Column numbering
10440
1
2
3
4
9
5
6
7
8
1
2
3
4
5
6
7
10442
1
2
3
4
5
6
7
8
1
2
3
4
5
