6. Close the back door of the library.
7. Use the Interface Manager CLI or the HP StorageWorks Command View TL to verify detection of the
new controller, and to perform configuration and firmware updates, if necessary.
The interface controller replacement procedure is complete.
Base module (or tape drive expansion unit module) power supply
Required tools
A Torx T-15 screwdriver is required for this procedure.
Replacing a power supply
To remove a power supply from the base module or expansion module:
1. Open the back door of the library.
2. Identify the power supply to be replaced.
3. Remove power to the library by turning off the library main power switch (see Figure 48 on page 69).
NOTE: If the faulty power supply is redundant, the library does not have to be powered off during this
procedure.
4. Unplug the power supply power cord that is connected to the AC power strip.
Part number
375815-001
Location
Primary or redundant power supply in the base module or the tape drive expansion
unit
Characteristics
•
Hot-swappable
• Input rating: 100–240 VAC / 50-60 Hz / 7.2A
• Output rating: +3.3 VDC, +5 VDC, +12 VDC, -12 VDC
• 360 Watts total output power
Function
Provides power to base module and tape drive expansion module.

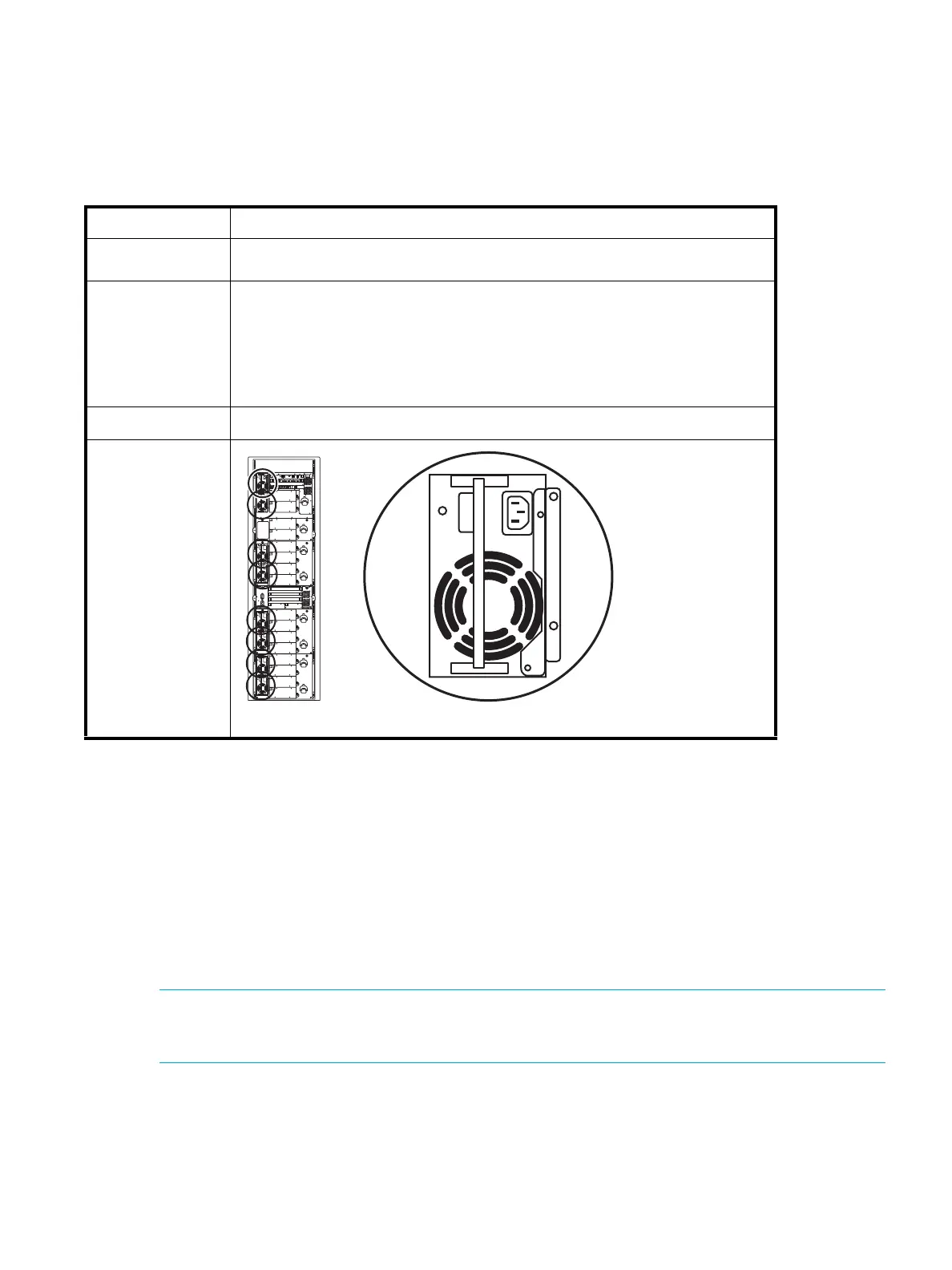

Power Supply
10465
To Next Page
