a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
• Extend the server from the rack.
• Remove the server from the rack.
4. Remove the access panel.
5. Disconnect SATA cables from system board.
6. Remove the riser cage.
7. Remove the M.2 SSD enablement board.

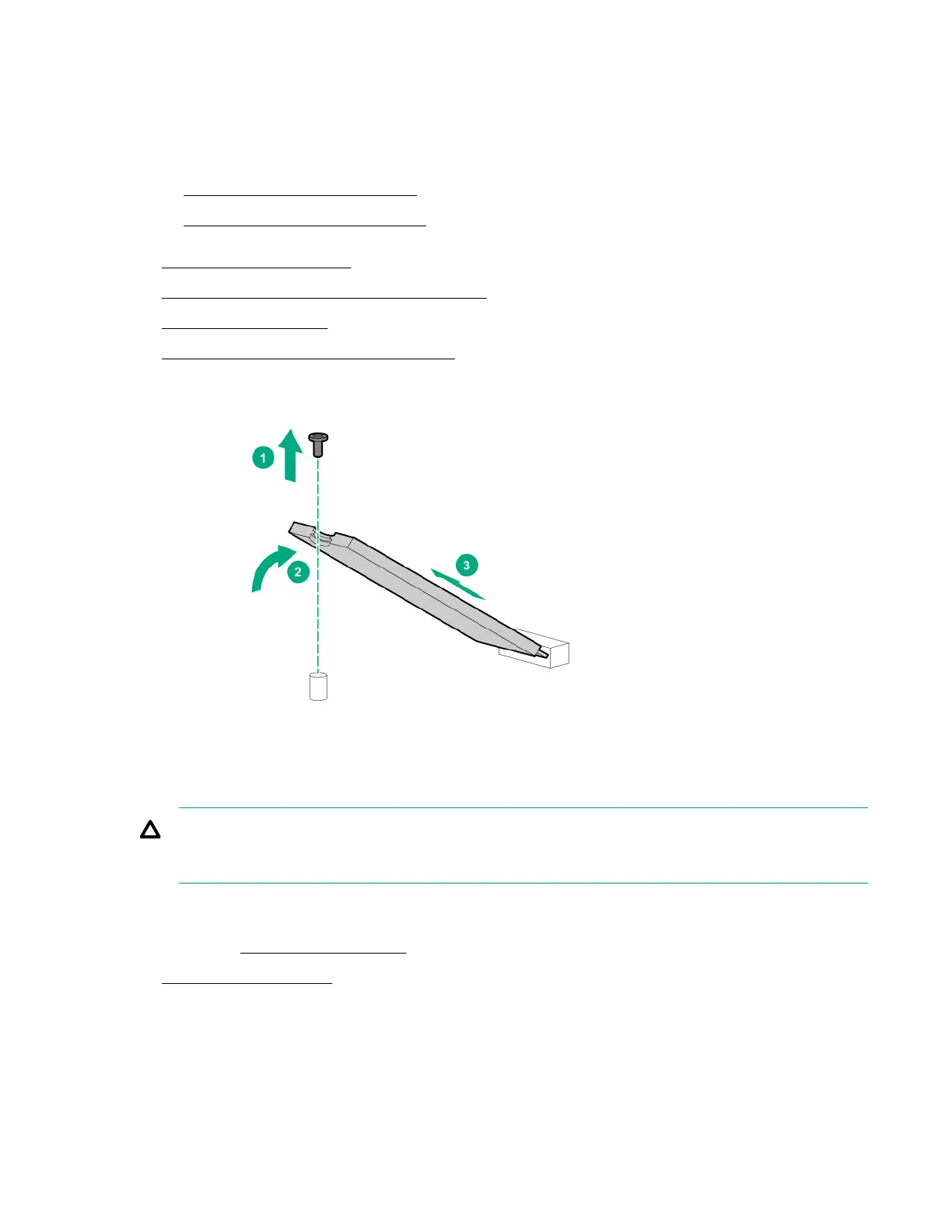

8. Remove the M.2 SSD.
To replace the component, reverse the removal procedure.
Removing and replacing the air baffle
CAUTION: For proper cooling, do not operate the server without the access panel, baffles,
expansion slot blanks, or blanks installed. If the server supports hot-plug components, minimize the
amount of time the access panel is open.
Procedure
1. If installed, remove the front bezel.
2. Power down the server.
3. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
Removal and replacement procedures 45
