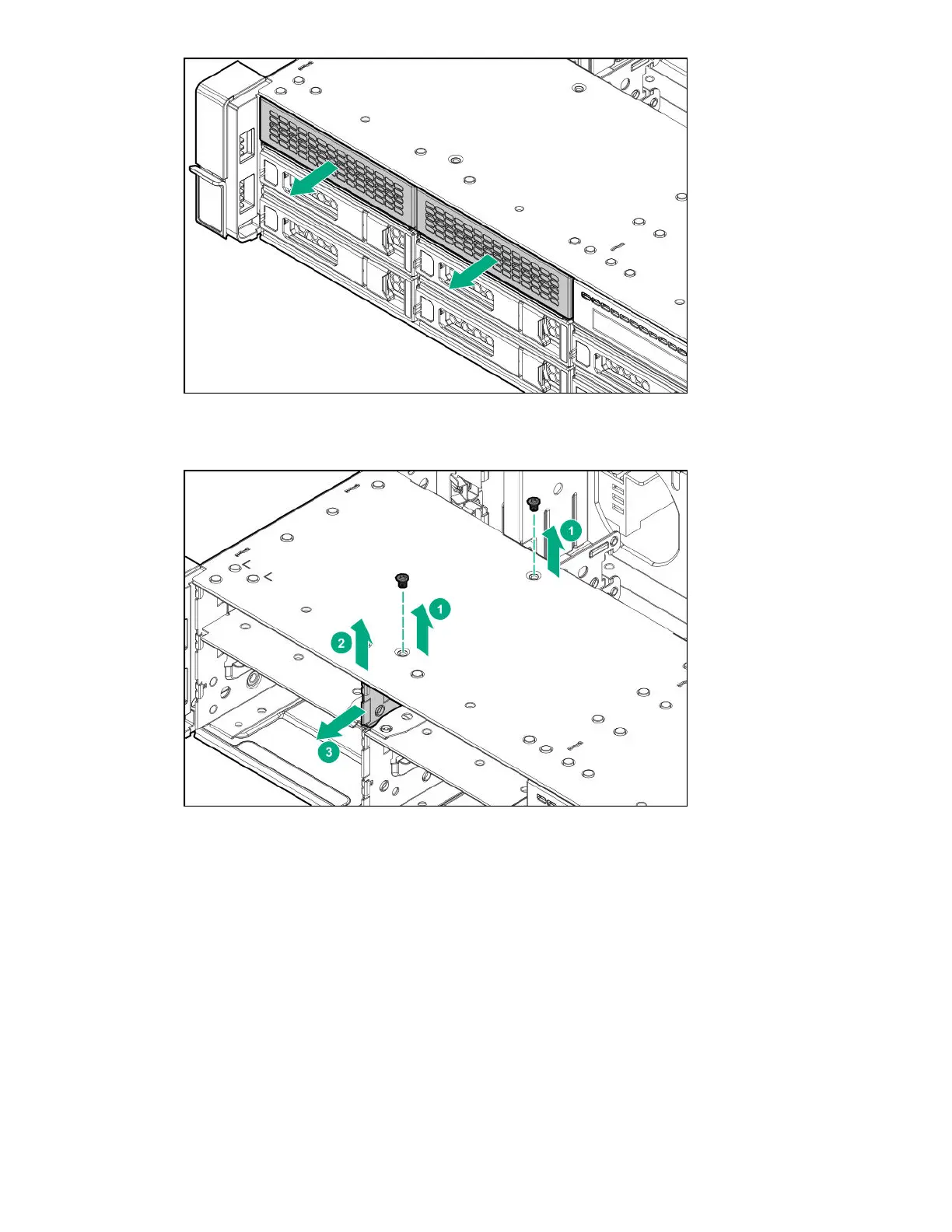

b. Remove two T-10 screws.
c. Lift the top cover upward slightly and pull out the partition.
To replace the component, reverse the removal procedure.
System battery replacement
System battery information
The server contains an internal lithium manganese dioxide, a vanadium pentoxide, or an alkaline battery
that provides power to the real-time clock. If this battery is not properly handled, a risk of the fire and
burns exists. To reduce the risk of personal injury:
• Do not attempt to recharge the battery.
• Do not expose the battery to temperatures higher than 60°C (140°F).
Removal and replacement procedures 89
